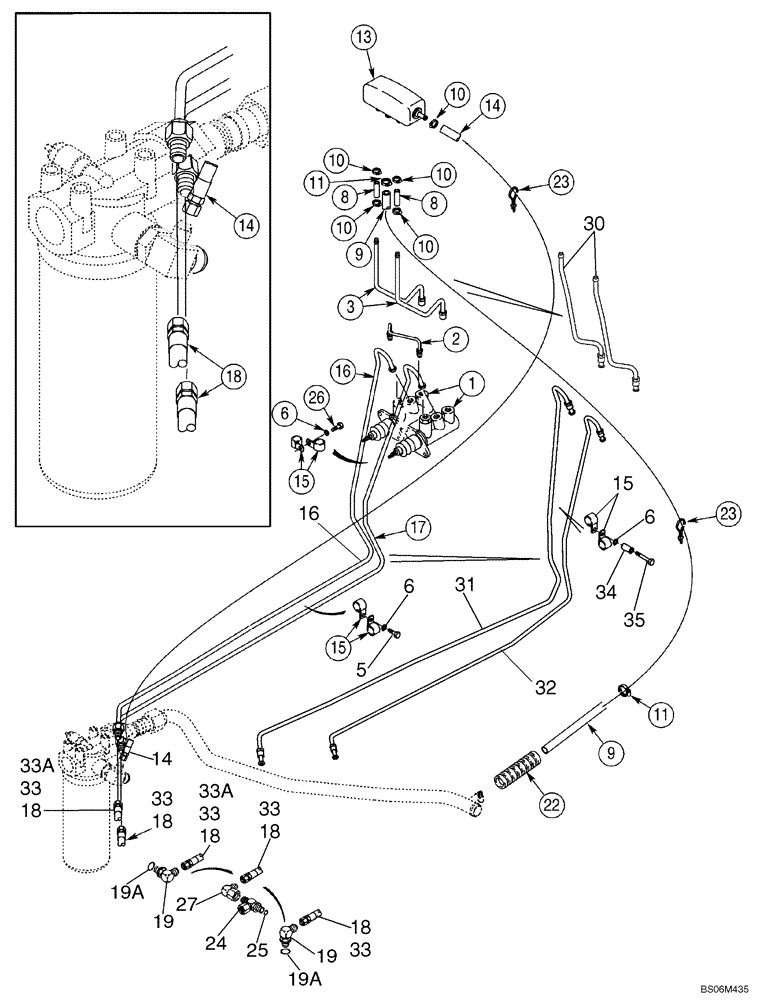

Запчасти Case 590SM (07-04) - HYDRAULICS - BRAKE MASTER CYLINDER (07) - BRAKES

1

182445A1

MASTER CYLINDER,104.8mm Stroke

CYLINDER,MASTER See Figure 07-05

2шт.

2

345061A2

TUBE

Crossover

1шт.

3

345325A2

TUBE,7.94 mm OD, 214.4, 102.2 mm Length

No Longer Available, If Replacing This Tube, Must Also Replace Ref 16, 17 Tubes; Order Ref 30 - 35 For Service

2шт.

5

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

6

892-11008

LOCK WASHER,8mm ID

2шт.

8

121729A1

HOSE,7.94 mm ID x 52.00 mm, SAE 30R2 Type 1

To Master Cylinder

2шт.

9

397076A1

HOSE,12.70 mm ID x 1500.00 mm, SAE 100R6

Reservoir Outlet, Attaches To Return To Tank Tube, See Figure 08-03

1шт.

10

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

5шт.

11

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

2шт.

13

184627A2

BRAKE FLUID TANK

1шт.

14

86991496

HOSE ASSY.

1666 mm (65-19/32 in), Reservoir Inlet; See Figure 08-03 For Fitting

1шт.

15

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

(7.9 mm)

4шт.

16

397177A2

TUBE

Left-Hand, No Longer Available, If Replacing This Tube, Must Also Replace Ref 3, 17 Tubes; Order Ref 30 - 35 For Service

1шт.

17

396620A2

TUBE

Right-Hand, No Longer Available, If Replacing This Tube, Must Also Replace Ref 3, 16 Tubes; Order Ref 30 - 35 For Service

1шт.

18

409318A1

HOSE ASSY.,6.35mm ID x 565mm L

565 mm (22-1/4 in), Brake Tube To Adapter On Rear Axle; Used With Ref 3, 16, 17 Tubes; If Used

2шт.

19

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

90 deg, 7/16 fl x Or, Incl. Ref 19A; Models Without Powershift Transmission

2шт.

19a

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

22

D132982

PADDLE,26.87mm ID x 400mm L

400 mm (15-3/4 in)

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

3шт.

24

222889A1

FITTING

Tee, Incl. Ref 25; Models With Powershift Transmission; See Figure 04-09 for Powershift Pressure Switch

2шт.

25

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

26

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

If used

1шт.

27

218-5228

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

90 deg, 7/16 fl x 7/16 sw fl; Models With Powershift Transmission

2шт.

30

87448661

TUBE,.312" OD

2шт.

31

87450910

TUBE,.312" OD

Left-Hand

1шт.

32

87448658

TUBE,.312" OD

Right-Hand

1шт.

33

87451751

HOSE ASSY.,6.35mm ID x 520mm L

520 mm (20-1/2 in); Brake Tube To Adapter On Rear Axle; Used With Ref 30 - 32 Tubes

1-2шт.

33a

322184A1

HOSE ASSY.

480 mm (18-15/16 in); Brake Tube To Adapter On Rear Axle; Used With Ref 30 - 32 Tubes; Left-Hand Side Only; If Used

1шт.

34

87449579

SPACER,9.5mm ID x 19.05mm OD x 40mm L

9.5 ID x 19.05 OD x 40 mm

1шт.

35

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

1шт.
