(07-01) - AXLE, REAR DRIVE - BRAKE, DIFFERENTIAL

Запчасти Case 590SM (07-01) - AXLE, REAR DRIVE - BRAKE, DIFFERENTIAL (07) - BRAKES

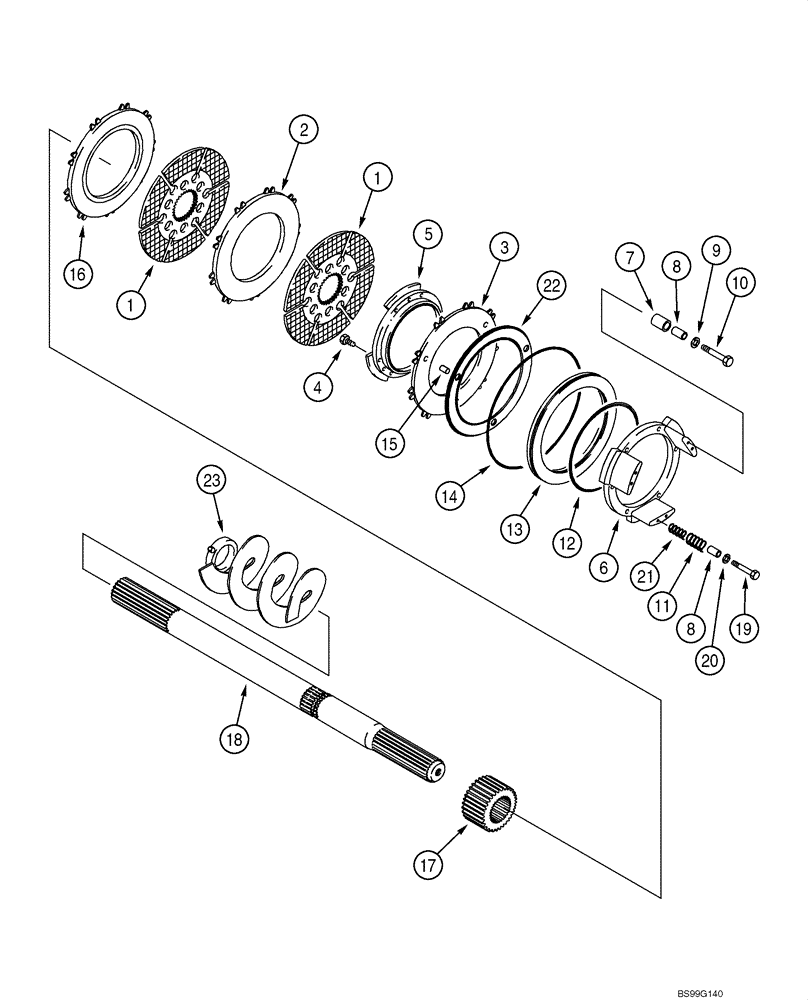

Схема запчастей Case 590SM - (07-01) - AXLE, REAR DRIVE - BRAKE, DIFFERENTIAL (07) - BRAKES
2
5
23
9
15
13
6
12
7
21
1
10
18
19
4
8
17
3
16
22
8
20
11
14
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

384959A1

AXLE, REAR

AXLE REAR Models Without Powershift Transmission, Incl. Ref 1 - 25; Also Includes Parts On Figures 06-40 - 06-46, 07-01, 07-02

1шт.

384959A1R

REMAN-REAR AXLE

REMANUFACTURED, Rear, w/o Powershift Transmission

1шт.

384959A1C

CORE-REAR AXLE

Return Number

1шт.

384960A1

AXLE, REAR

AXLE REAR Models With Powershift Transmission, Incl. Ref 1 - 25; Also Includes Parts On Figures 06-40 - 06-46, 07-01, 07-02

1шт.

384960A1R

REMAN-REAR AXLE

Rear, w/Powershift Transmission

1шт.

384960A1C

CORE-REAR AXLE

Return Number

1шт.

243894A1

SET OF PARTS

Brake Discs and Plates; Service Replacement, Incl. Ref 1 - 3, 11, 16, 21; No Longer Available, Order Components

1шт.

1

237017A1

BRAKE DISC

DISC, BRAKE

4шт.

2

237018A1

FRICTION WASHER

2шт.

3

237019A1

LARGE PLATE

PLATE, LARGE Piston

2шт.

4

864-8016

HEX SOC SCREW,M8 x 16mm, Cl 8.8

18шт.

5

196076A1

FLANGE

2шт.

6

196077A1

FLANGE

2шт.

248071A1

SERVICE KIT

Brake Self Adjuster, Incl. Ref 7, 8, Plus An Instruction Sheet

1шт.

7

190449A1

SPLIT PIN

Spacer, 18 x 20 mm, No Longer Sold Separately, Order 248071A1 Kit

6шт.

8

190496A1

BUSHING

No Longer Sold Separately, Order 248071A1 Kit

12шт.

9

190450A1

WASHER

6шт.

10

864-6035

HEX SOC SCREW,M6 x 35mm, Cl 8.8

M6 x 35

6шт.

11

237026A1

SPRING

6шт.

12

196078A1

O-RING,9.541" ID x 0.14" Width

2шт.

13

196079A1

PISTON

2шт.

14

238-8274

O-RING,0.139" Thk x 9.984" ID, -274, Cl 8, 90 Duro

2шт.

15

190447A1

SPLIT PIN

6 x 14 mm

6шт.

16

237020A1

LARGE PLATE

PLATE, LARGE Friction

2шт.

17

196082A1

SLEEVE

2шт.

18

196083A1

HALF SHAFT

2шт.

19

864-6035

HEX SOC SCREW,M6 x 35mm, Cl 8.8

M6 x 35

6шт.

20

190500A1

COVER

6шт.

21

237025A1

SPRING

6шт.

22

192911A1

SHIM

2шт.

23

193491A1

AUGER

Auger, Oil, Right-Hand, Includes Welded-On Clamp and Bolt, Plus Welded-On Drive Coupling, Incl. Ref 25

1шт.

24

193493A1

AUGER

Auger, Oil, Left-Hand, Includes Welded-On Clamp and Bolt, Plus Welded-On Drive Coupling, Incl. Ref 25

1шт.

25

863-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

Not Illustrated

2шт.

243894A1

SET OF PARTS

Brake Discs and Plates, Service Replacement, Incl. Ref 1 - 3, 11, 16, 21

1шт.
