Запчасти Case 590SM (02-06) - MUFFLER - EXHAUST SYSTEM (WITH TURBOCHARGER) (02) - ENGINE

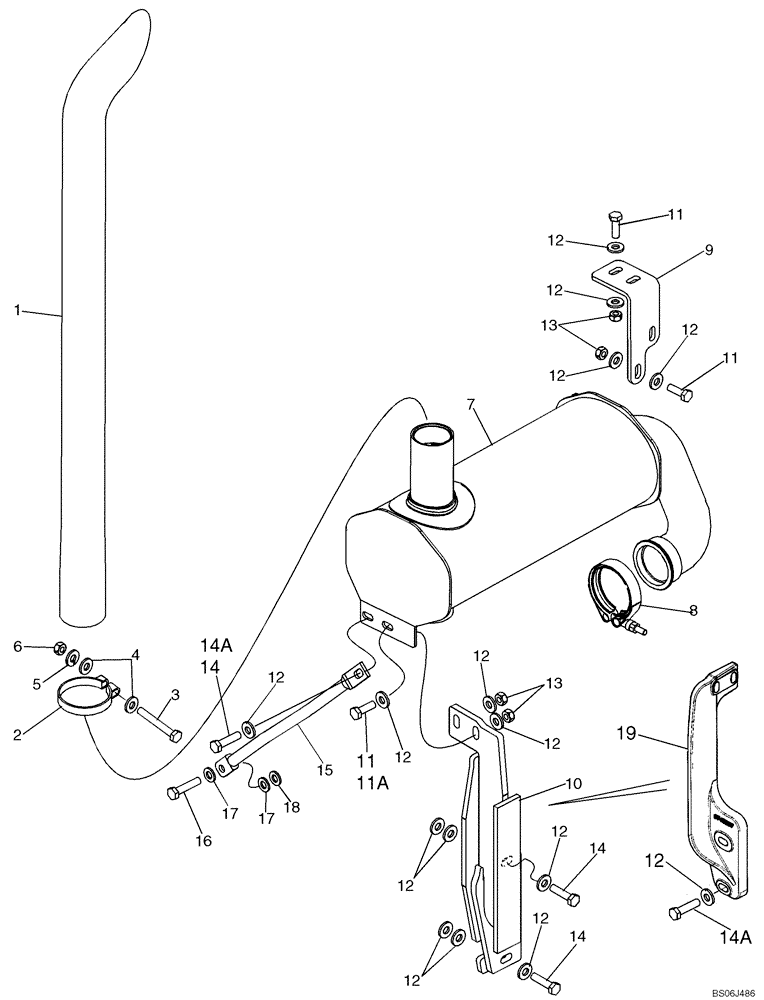

Схема запчастей Case 590SM - (02-06) - MUFFLER - EXHAUST SYSTEM (WITH TURBOCHARGER) (02) - ENGINE
12
18
12
12
14
14a
6
19
12
14
15
11
16
12
11
12
12
13
10
4
14a
3
11a
11
12
14
17
12
17
12
7
13
1
8
5
9
12
12
12
2

Артикул

Название

Примечание

Количество

1

87309656

EXHAUST SYSTEM PIPE

844 mm (33-1/4 in) Long Stack; Replaces 87437805 868 mm (34-11/64 in) Long Stack

1шт.

2

87437804

PIPE CLAMP,94mm ID

Stack

1шт.

3

614-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8, Full Thd

1шт.

4

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

5

892-11010

LOCK WASHER,M10

1шт.

6

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

7

87310639

MUFFLER

Turbo Engine; Replaces 87440554

1шт.

8

A170467

CLAMP,72mm ID

Includes Hardware

1шт.

9

87423531

BRACKET, SUPPORTING

Front Support Bracket

1шт.

10

87441285

BRACKET, SUPPORTING

Rear Support Bracket; Weldment; No Longer Available, Order 87451167, Ref 19

1шт.

11

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

4-5шт.

11a

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

Used with Ref 19 Cast Bracket

1шт.

12

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

14-18шт.

13

829-1410

NUT,M10 x 1.5, Cl 10.9

6шт.

14

827-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

Used with Ref 10 Welded Bracket

3шт.

14a

827-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

Used with Ref 19 Cast Bracket

3шт.

15

87442357

BRACE

1шт.

16

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

17

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

18

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

Used as a shim

1шт.

19

87451167

SUPPORT

Rear Support; Cast

1шт.

Выбрано товаров: 21
