Запчасти Case 590SM (06-46) - AXLE, REAR DRIVE - PLANETARY (06) - POWER TRAIN

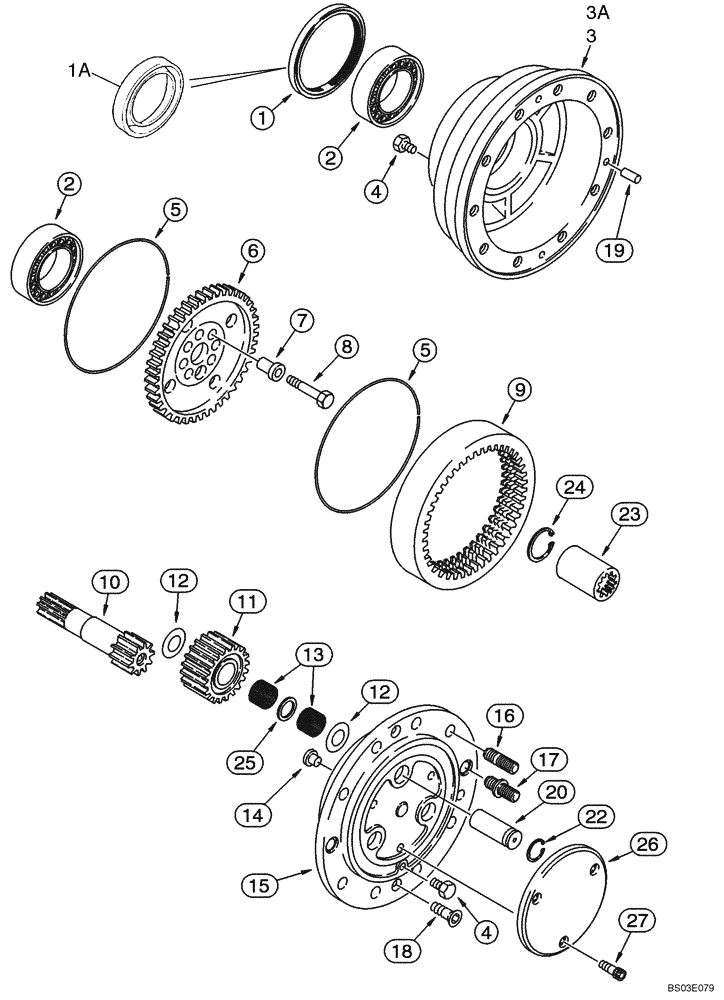

Схема запчастей Case 590SM - (06-46) - AXLE, REAR DRIVE - PLANETARY (06) - POWER TRAIN
23
24
9
27
16
10
18
22
1a
5
1
25
7
5
8
12
14
4
13
3a
17
26
12
4
6
20
2
19
15
11
3
2

Артикул

Название

Примечание

Количество

384959A1

AXLE, REAR

AXLE REAR Models Without Powershift Transmission, Incl Ref 1 - 27; Also Includes Parts On Figures 06-40 - 06-46, 07-01, 07-02

1шт.

384959A1R

REMAN-REAR AXLE

REMANUFACTURED, Rear, w/o Powershift Transmission

1шт.

384959A1C

CORE-REAR AXLE

Return Number

1шт.

384960A1

AXLE, REAR

AXLE REAR Models With Powershift Transmission, Incl Ref 1 - 27; Also Includes Parts On Figures 06-40 - 06-46, 07-01, 07-02

1шт.

384960A1R

REMAN-REAR AXLE

Rear, w/Powershift Transmission

1шт.

384960A1C

CORE-REAR AXLE

Return Number

1шт.

1

1349265C1

OIL SEAL,149mm ID x 176mm OD x 16mm Thk

Oil, 149 x 176 x 16; Used With Ref 3, D143084 Hub; If Used

2шт.

1a

247546A1

OIL SEAL,150mm ID x 180mm OD x 14.50mm W

Oil; With Internal Garter Spring Seal; Used With Ref 3A, 87415733 Hub; If Used

2шт.

2

K395101

TAPERED BEARING,109.5mm ID x 126mm x 21.4mm L

4шт.

3

D143084

HUB

Used With 1349265C1 Seal, Ref 1; If Used; When Stock Of D143084 Hub Is Exhausted, Order 87415733 Hub and 87415728 Seal

2шт.

3a

87415733

HUB

Used With 247546A1 Seal, Ref 1A; If Used

2шт.

4

A156873

PLUG, DRAIN,M22 x 1.5

8шт.

5

D142979

RING, SNAP

RING SNAP Lock Ring

4шт.

6

295579A1

PINION

Hub

2шт.

7

107071A1

BUSHING

20 mm OD

16шт.

8

K395131

BOLT,Hex, M14 x 1.5 x 65mm, Cl 10.9

16шт.

9

E135755

GEAR WHEEL

Ring

2шт.

10

292218A1

HALF SHAFT

Pinion

2шт.

11

292217A1

SUN GEAR

Pinion Gear

6шт.

12

E135788

WASHER, THRUST

12шт.

13

295040A1

NEEDLE BEARING

Package of 10 Needles, 360 Needles Required

36шт.

16

D142986

STUD,88mm L

Without Flanged Collar

16шт.

14

295094A1

PIN

Lock

2шт.

17

E135795

STUD

With Flanged Collar, For Recessed Bolt Holes

4шт.

15

295039A1

COVER

Planetary Carrier; Incl. Ref 20; Use With Liquid Gasket Silastic 732, Serial Range: Carrier-Hub

2шт.

18

K395029

SCREW

4шт.

19

K395094

DOWEL,M18 x 36

2шт.

22

295093A1

RING, SNAP

RING SNAP

6шт.

23

196092A1

SPLINED BUSHING,29T

2шт.

20

NSS

NOT SOLD SEPARAT

Shaft, Included With Ref 15

6шт.

24

800-2136

SNAP RING,M36, Ext

No. 36

2шт.

25

295038A1

THRUST WASHER

6шт.

26

295033A2

COVER

With Oil Level Indicator

2шт.

27

864-8020

HEX SOC SCREW,M8 x 20mm, Cl 8.8

6шт.

Выбрано товаров: 34
