(06-45) - AXLE, REAR DRIVE - DIFFERENTIAL LOCK (COUNTER CLOCKWISE INPUT, MODELS WITH POWERSHIFT)

Запчасти Case 590SM (06-45) - AXLE, REAR DRIVE - DIFFERENTIAL LOCK (COUNTER CLOCKWISE INPUT, MODELS WITH POWERSHIFT) (06) - POWER TRAIN

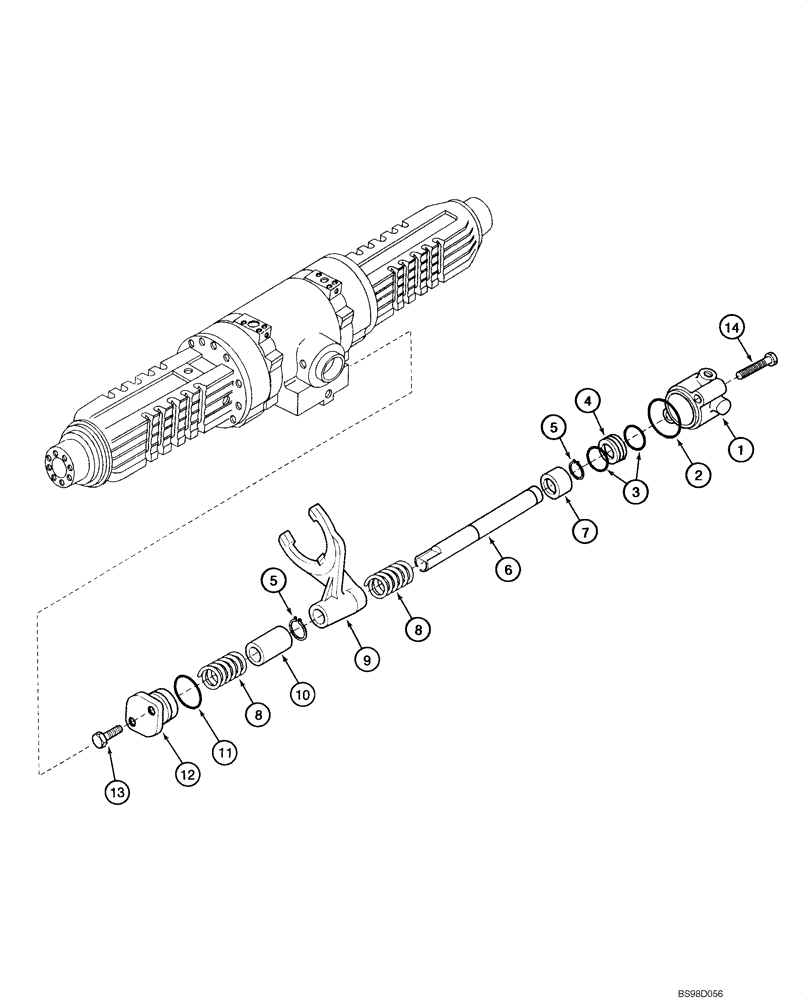

Схема запчастей Case 590SM - (06-45) - AXLE, REAR DRIVE - DIFFERENTIAL LOCK (COUNTER CLOCKWISE INPUT, MODELS WITH POWERSHIFT) (06) - POWER TRAIN
12
4
13
2
8
8
14
9
7
5
1
5
6
10
3
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

384960A1

AXLE, REAR

AXLE REAR w/ Powershift Transmission; Incl. Ref 1 - 14; Also Includes Parts On Figures 06-40 - 06-46, 07-01, 07-02

1шт.

384960A1R

REMAN-REAR AXLE

Rear, w/Powershift Transmission

1шт.

384960A1C

CORE-REAR AXLE

Return Number

1шт.

1

305153A1

CYLINDER

1шт.

2

305152A1

O-RING

1шт.

3

292210A1

SEAL

2шт.

4

292212A1

PISTON

1шт.

5

800-5120

SNAP RING,M20, Ext

No. 20

2шт.

6

292214A1

SHAFT

Rail, Shifter Fork

1шт.

7

292902A1

RING

Bushing

1шт.

8

175966A1

SPRING

2шт.

9

295152A2

SHIFTER FORK

1шт.

10

175965A1

BUSHING

1шт.

11

128376A1

O-RING

1шт.

12

175968A1

SUPPORT

Cover

1шт.

13

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

14

814-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

2шт.
