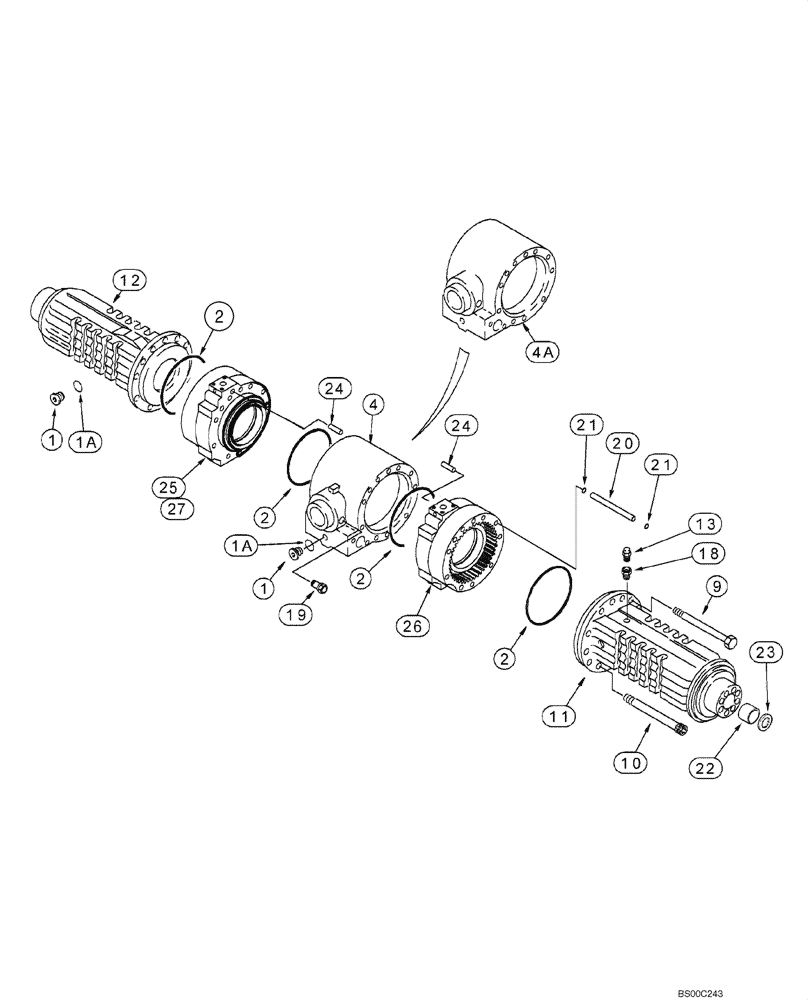

Запчасти Case 590SM (06-40) - AXLE, REAR DRIVE - HOUSING (06) - POWER TRAIN

384959A1

AXLE, REAR

AXLE REAR Models Without Powershift Transmission, Incl. Ref 1 - 27; Also Includes Parts On Figures 06-40 - 06-46, 07-01, 07-02

1шт.

384959A1R

REMAN-REAR AXLE

REMANUFACTURED, Rear, w/o Powershift Transmission

1шт.

384959A1C

CORE-REAR AXLE

Return Number

1шт.

384960A1

AXLE, REAR

AXLE REAR Models With Powershift Transmission, Incl. Ref 1 - 27; Also Includes Parts On Figures 06-40 - 06-46, 07-01, 07-02

1шт.

384960A1R

REMAN-REAR AXLE

Rear, w/Powershift Transmission

1шт.

384960A1C

CORE-REAR AXLE

Return Number

1шт.

1

100557A1

PLUG, DRAIN,M30 x 2

Incl. Ref 1A

2шт.

1a

238-6121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1шт.

2

238-5276

O-RING,0.139" Thk x 10.984" ID, -276, Cl 5, 75 Duro

4шт.

4

284630A1

HOUSING

Center, 384959A1 Axle

1шт.

4a

310480A1

HOUSING

Center, 384960A1 Axle

1шт.

9

814-14140

BOLT,Hex, M14 x 2 x 140mm, Cl 8.8

22шт.

10

864-12130

HEX SOC SCREW,M12 x 130mm, Cl 8.8

4шт.

11

295577A1

HOUSING

With Breather Hole

1шт.

12

295578A1

HOUSING

Without Breather Hole

1шт.

13

1966149C2

BREATHER

1шт.

18

E135750

AXLE PIN

Breather Extension

1шт.

19

393826A1

TEMPERATURE SENDER,3/6" - 16

Oil Temperature, Incl. 237-8008 O-Ring

1шт.

19

237-8008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 8, 90 Duro

1шт.

20

222688A1

TUBE

Internal

1шт.

21

100760A1

O-RING

2шт.

22

196065A1

BUSHING

2шт.

23

196066A1

OIL SEAL

38 ID x 50 OD

2шт.

24

D142898

PLUG,M10 x 1

2шт.

25

328554A1

SET OF PARTS

Brake Cylinder, Right-Hand, 384959A1 Axle; No Longer Used On This Axle, Order 328555A1 Right-Hand Brake Cylinder, Ref 27

1шт.

26

328553A1

SET OF PARTS

Brake Cylinder, Left-Hand, 384959A1 / 384960A1 Axle

1шт.

27

328555A1

SET OF PARTS

Brake Cylinder, Right-Hand, 384960A1 or 384959A1 Axle

1шт.
