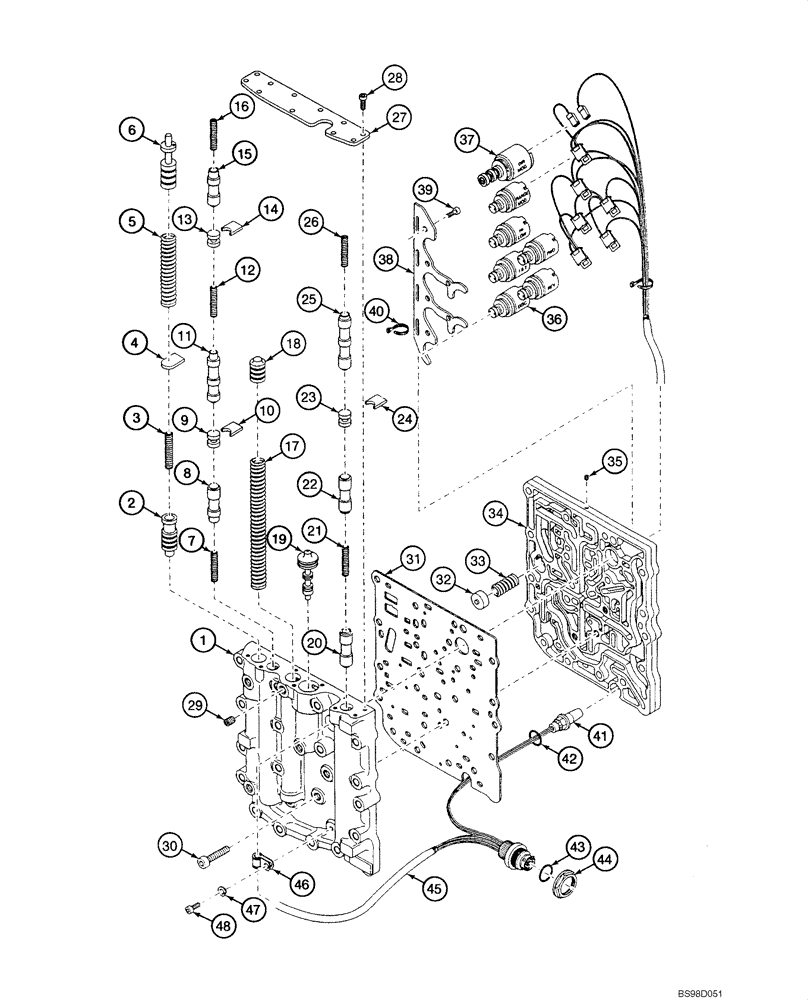

Запчасти Case 590SM (06-35A) - TRANSMISSION ASSY, POWERSHIFT - 87571341 VALVE, CONTROL (06) - POWER TRAIN

87749356

TRANSMISSION

Powershift Transmission, Four Wheel Drive, Incl. Ref 1 - 53; Also Includes Parts On Figures 06-25 - 06-34, 06-35A, 06-36; 580SM Trans. SN N7C431651 -; Replaces 87645686

1шт.

87749356R

REMAN-TRANSMISSION

590SM (SERIES 2) (TIER 2) (NA) (SN N7C431651-) (2/04-)

1шт.

87749356C

CORE-TRANSMISSION

Return Number

1шт.

87571341

CONTROL VALVE

Transmission, Incl. Ref 1 - 48; Replaces 87589405 (See attached Bulletin)

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

NSS

NOT SOLD SEPARAT

Spool, Pressure Reducing

1шт.

3

NSS

NOT SOLD SEPARAT

Spring

1шт.

4

NSS

NOT SOLD SEPARAT

Plate

1шт.

5

NSS

NOT SOLD SEPARAT

Spring

1шт.

6

NSS

NOT SOLD SEPARAT

Spool, Pressure Regulator

1шт.

7

NSS

NOT SOLD SEPARAT

Spring

1шт.

8

NSS

NOT SOLD SEPARAT

Spool, Disconnect

1шт.

9

NSS

NOT SOLD SEPARAT

Stop

1шт.

10

NSS

NOT SOLD SEPARAT

Plate

1шт.

11

NSS

NOT SOLD SEPARAT

Spool, First/Second

1шт.

12

NSS

NOT SOLD SEPARAT

Spring

1шт.

13

NSS

NOT SOLD SEPARAT

Stop

1шт.

14

NSS

NOT SOLD SEPARAT

Plate

1шт.

15

NSS

NOT SOLD SEPARAT

Spool, Range Modulation

1шт.

16

NSS

NOT SOLD SEPARAT

Spring

1шт.

17

NSS

NOT SOLD SEPARAT

Spring

1шт.

18

NSS

NOT SOLD SEPARAT

Spool, Accumulator

1шт.

19

NSS

NOT SOLD SEPARAT

Spool, Booster

1шт.

20

NSS

NOT SOLD SEPARAT

Spool, Reverse

1шт.

21

NSS

NOT SOLD SEPARAT

Spring

1шт.

22

NSS

NOT SOLD SEPARAT

Spool, Forward

1шт.

23

NSS

NOT SOLD SEPARAT

Stop

1шт.

24

NSS

NOT SOLD SEPARAT

Plate

1шт.

25

NSS

NOT SOLD SEPARAT

Spool, High/Low Forward

1шт.

26

NSS

NOT SOLD SEPARAT

Spring

1шт.

27

NSS

NOT SOLD SEPARAT

Cover

1шт.

28

85808370

SCREW

11шт.

29

87603917

PLUG

Check Port

2шт.

30

85808372

SCREW,Ball

3шт.

31

NSS

NOT SOLD SEPARAT

Plate, Spacer

1шт.

32

85808373

SPOOL

Bypass Valve

1шт.

33

9970286

SPRING

1шт.

34

NSS

NOT SOLD SEPARAT

Plate

1шт.

35

85808374

PLUG

6шт.

36

87604390

SOLENOID

6шт.

37

87571337

SOLENOID VALVE

1шт.

38

NSS

NOT SOLD SEPARAT

Bail

1шт.

39

85808370

SCREW

6шт.

40

9969363

CABLE TIE

CABLE STRAP

6шт.

41

87604372

SENSOR

Speed Sensor

1шт.

42

9970082

SEALING RING

1шт.

43

85813308

O-RING,2.62mm Thk x 17.12mm ID

1шт.

44

NSS

NOT SOLD SEPARAT

Nut

1шт.

45

87604385

SENSOR

Incl. Ref 41 - 44

1шт.

46

319599A1

CLAMP

1шт.

47

87604387

LOCK WASHER

1шт.

48

85808370

SCREW

1шт.
