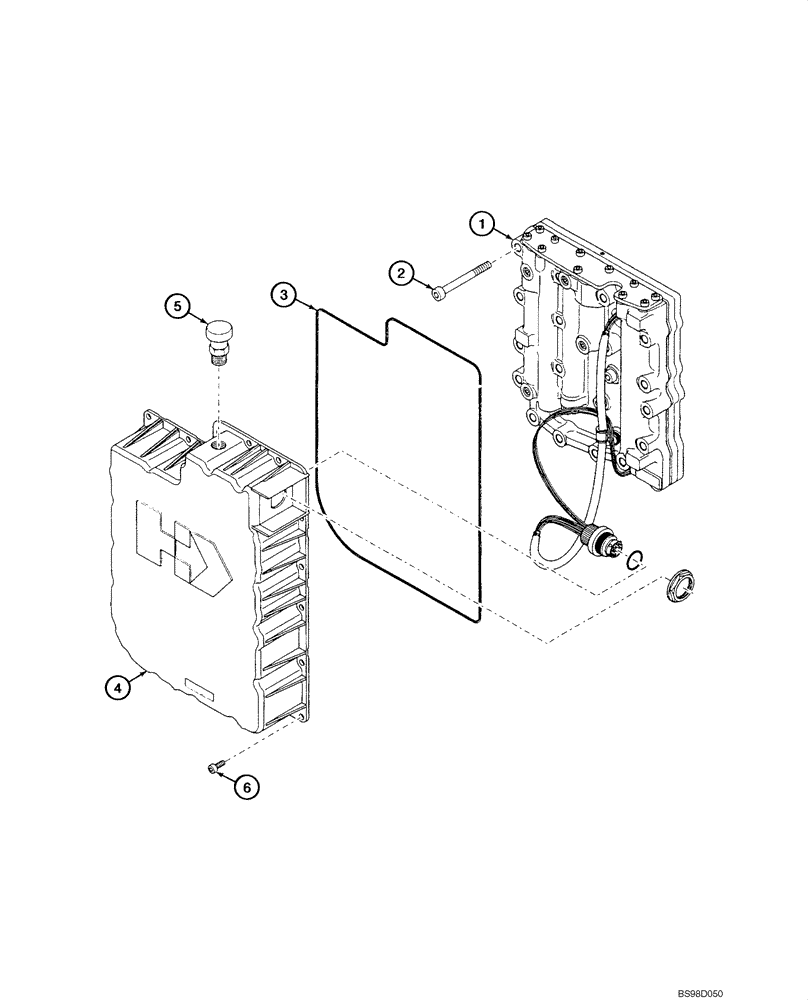

Запчасти Case 590SM (06-34) - TRANSMISSION ASSY, POWERSHIFT - MOUNTING, VALVE (06) - POWER TRAIN

87424815

TRANSMISSION

Powershift Transmission, Four Wheel Drive, Incl. Ref 1 - 53; Also Includes Parts On Figures 06-25 - 06-35, 06-36

1шт.

87424815R

REMAN-TRANSMISSION

Remanufactured Transmission, Powershift,Trans SN (BSN N7C431651)

1шт.

87424815C

CORE-TRANSMISSION

Return Part Number

1шт.

87749356

TRANSMISSION

Powershift Transmission, Four Wheel Drive, Incl. Ref 1 - 53; Also Includes Parts On Figures 06-25 - 06-34, 06-35A, 06-36; 590SM Trans. SN N7C431651 -; Replaces 87645686

1шт.

87749356R

REMAN-TRANSMISSION

590SM (SERIES 2) (TIER 2) (NA) (SN N7C431651-) (2/04-)

1шт.

87749356C

CORE-TRANSMISSION

Return Part Number

1шт.

1

380005A1

CONTROL VALVE

Transmission Control Valve, See Figure 06-35 (See attached Bulletin)

1шт.

1

87571341

CONTROL VALVE

Transmission Control Valve, See Figure 06-35A; 87749356 And 87645686 Transmissions (See attached Bulletin)

1шт.

2

864-8065

HEX SOC SCREW,M8 x 65mm, Cl 8.8

17шт.

3

291545A1

SEAL

1шт.

4

291577A1

HOUSING

Incl. Ref 5

1шт.

5

294013A1

BREATHER

1шт.

6

864-6012

HEX SOC SCREW,M6 x 12mm, Cl 8.8

20шт.
