87424815
TRANSMISSION
Powershift Transmission, Four Wheel Drive, Incl. Ref 1 - 53; Also Includes Parts On Figures 06-25 - 06-35, 06-36
1шт.
87424815R
REMAN-TRANSMISSION
Remanufactured Transmission, Powershift,Trans SN (BSN N7C431651)
1шт.
87424815C
CORE-TRANSMISSION
Return Part Number
1шт.
87749356
TRANSMISSION
Powershift Transmission, Four Wheel Drive, Incl. Ref 1 - 53; Also Includes Parts On Figures 06-25 - 06-34, 06-35A, 06-36; 590SM Trans. SN N7C431651 -; Replaces 87645686
1шт.
87749356R
REMAN-TRANSMISSION
590SM (SERIES 2) (TIER 2) (NA) (SN N7C431651-) (2/04-)
1шт.
87749356C
CORE-TRANSMISSION
Return Part Number
1шт.

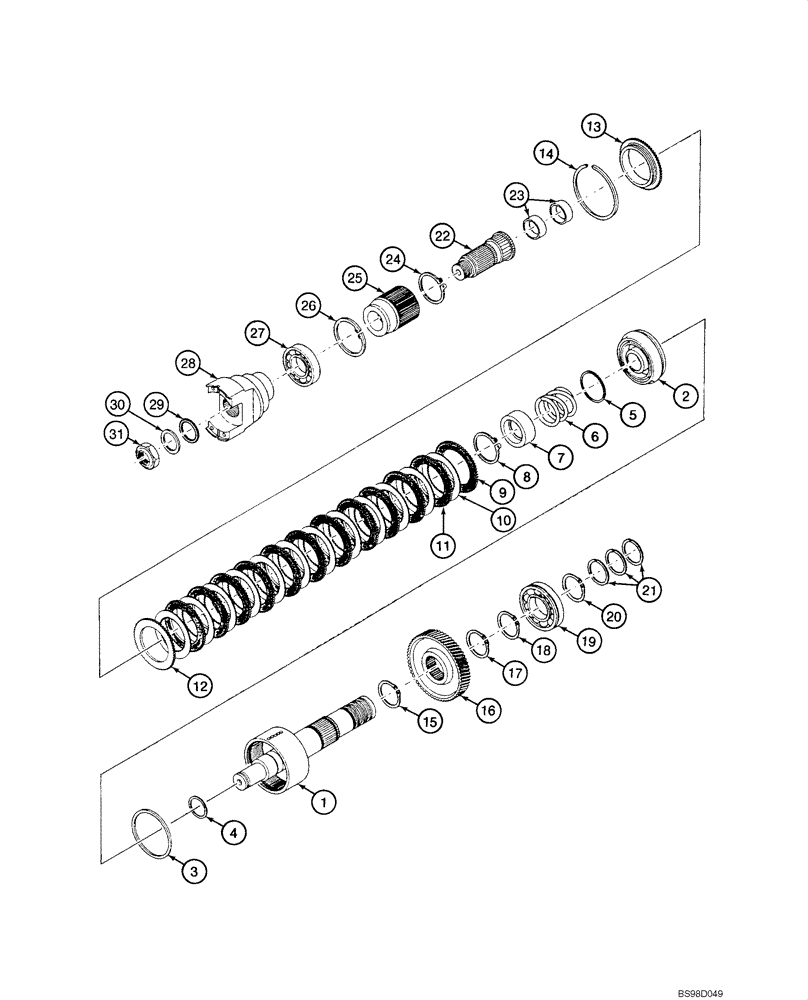

1
305729A1
SHAFT
Drum, Front Output, Rear Assy
1шт.
2
291520A1
PISTON
Incl. Ref 3, 4
1шт.
3
E114385
SEAL,123.49mm ID x 133.17mm OD x 9.68mm Thk
Ring
1шт.
4
E114386
SEAL,50.98mm ID x 58.03mm OD x 3.3mm Thk
1шт.
5
291529A1
RING
Wear Ring
1шт.
6
291531A1
SPRING
1шт.
7
291530A1
RETAINER
Seat
1шт.
8
100-11196
SNAP RING,#196, Ext
1шт.
9
291578A1
DISC
Friction
1шт.
10
291580A1
DISC
Friction
12шт.
11
291579A1
DISC
Friction
11шт.
12
291578A1
DISC
Friction
1шт.
13
291571A1
DISC
Backing Plate
1шт.
14
292415A1
RING, SNAP
RING SNAP Retaining Ring
1шт.
15
800-1165
SNAP RING,M65, Ext
1шт.
16
291554A1
PINION
Gear, Lower Output, 39T
1шт.
17
800-1165
SNAP RING,M65, Ext
1шт.
18
800-1160
SNAP RING,M60, External
1шт.
19
292434A1
BALL BEARING,60mm ID x 110mm OD x 22mm W
1шт.
20
800-1160
SNAP RING,M60, External
1шт.
21
291540A1
SEALING RING
SEALRING Seal Ring
3шт.
22
291575A1
PINION
Shaft, Front Output, Front Assy; Incl. Ref 23
1шт.
23
292175A1
BUSHING
2шт.
24
800-5160
SNAP RING,M60, Ext
1шт.
25
291559A1
PINION
HUB
1шт.
26
800-21100
SNAP RING,Int, M100 x 3
1шт.
27
292424A1
BALL BEARING
1шт.
28
291524A1
SHIN
YOKE
1шт.
29
238-5328
O-RING,0.21" Thk x 1.85" ID, -328, Cl 5, 75 Duro
1шт.
30
S89696
WASHER
1шт.
31
S89695
NUT
1-1/4 NF
1шт.
