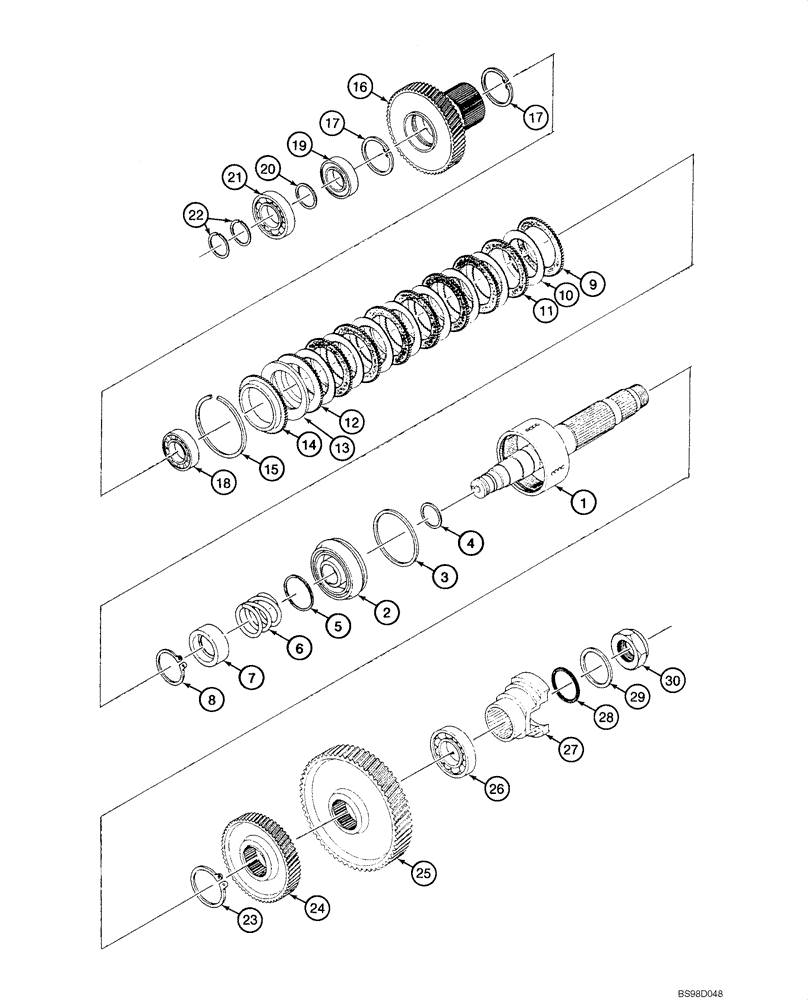

Запчасти Case 590SM (06-32) - TRANSMISSION ASSY, POWERSHIFT - CLUTCH, SECOND GEAR (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
87424815
TRANSMISSION
Powershift Transmission, Four Wheel Drive, Incl. Ref 1 - 53; Also Includes Parts On Figures 06-25 - 06-35, 06-36
1шт.
87424815R
REMAN-TRANSMISSION
Remanufactured Transmission, Powershift, Trans SN (BSN N7C431651)
1шт.
87424815C
CORE-TRANSMISSION
Return Part Number
1шт.
87749356
TRANSMISSION
Powershift Transmission, Four Wheel Drive, Incl. Ref 1 - 53; Also Includes Parts On Figures 06-25 - 06-34, 06-35A, 06-36; 590SM Trans. SN N7C431651 -; Replaces 87645686
1шт.
87749356R
REMAN-TRANSMISSION
590SM (SERIES 2) (TIER 2) (NA) (SN N7C431651-) (2/04-)
1шт.
87749356C
CORE-TRANSMISSION
Return Part Number
1шт.
1
305728A1
SHAFT
Drum, Second Clutch
1шт.
2
291520A1
PISTON
Incl. Ref 3, 4
1шт.
3
E114385
SEAL,123.49mm ID x 133.17mm OD x 9.68mm Thk
Ring
1шт.
4
E114386
SEAL,50.98mm ID x 58.03mm OD x 3.3mm Thk
1шт.
5
291529A1
RING
Wear Ring
1шт.
6
291531A1
SPRING
1шт.
7
291530A1
RETAINER
Seat
1шт.
8
100-11196
SNAP RING,#196, Ext
1шт.
10
291580A1
DISC
Friction
8шт.
11
291579A1
DISC
Friction
7шт.
13
291533A1
WASHER
Spacer
1шт.
14
291571A1
DISC
Backing Plate
1шт.
15
292415A1
RING, SNAP
RING SNAP Retaining Ring
1шт.
16
291555A1
PINION
Gear, Second Clutch, 52T
1шт.
17
800-2175
SNAP RING,M75, Int
2шт.
18
292425A1
BALL BEARING,45mm ID x 75mm OD x 16mm W
1шт.
19
292428A1
BALL BEARING,45mm ID x 75mm OD x 16mm W
1шт.
20
291541A1
WASHER
Ring
1шт.
21
292423A1
BALL BEARING,40mm ID x 90mm OD x 23mm W
1шт.
22
291528A1
SEALING RING
SEALRING
2шт.
23
800-5160
SNAP RING,M60, Ext
1шт.
24
291550A1
PINION
Gear, Drive, Lower Output, 41T
1шт.
25
291553A1
PINION
Gear, Upper Output, 59T
1шт.
26
292433A1
BALL BEARING
1шт.
27
291524A1
SHIN
YOKE, Output
1шт.
28
238-5328
O-RING,0.21" Thk x 1.85" ID, -328, Cl 5, 75 Duro
1шт.
29
S89696
WASHER
1шт.
30
S89695
NUT
1-1/4 NF
1шт.
Выбрано товаров: 36
