Запчасти Case 590SM (06-28) - TRANSMISSION ASSY, POWERSHIFT - PUMP, OIL (06) - POWER TRAIN

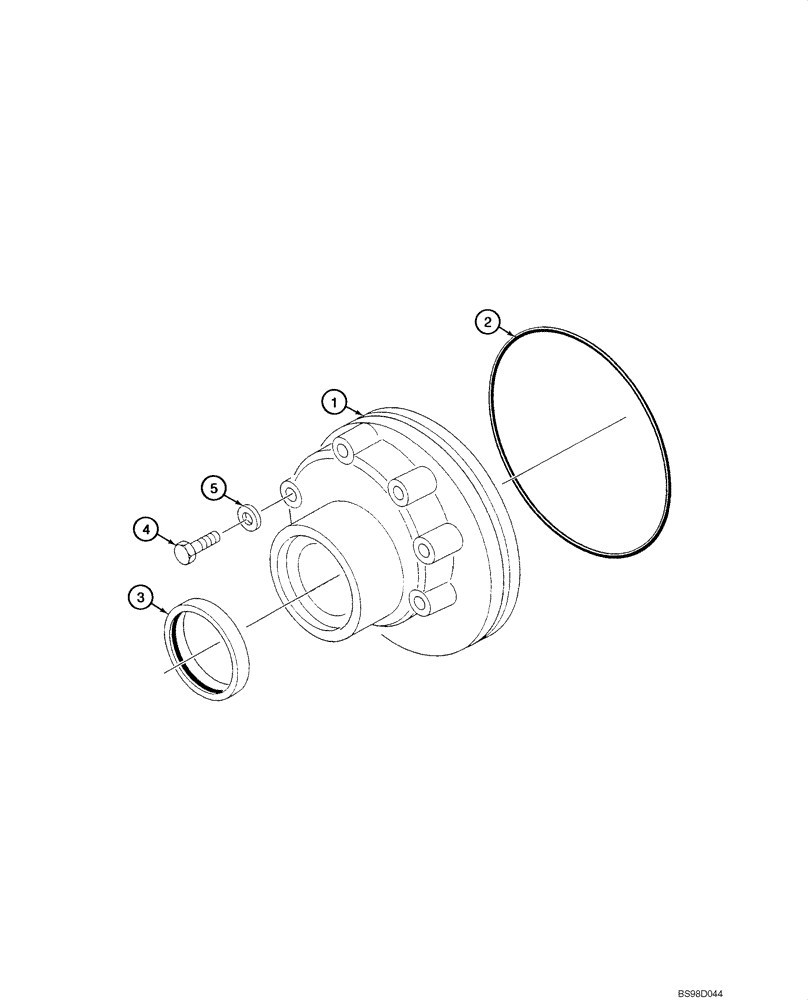

Схема запчастей Case 590SM - (06-28) - TRANSMISSION ASSY, POWERSHIFT - PUMP, OIL (06) - POWER TRAIN
1
4
2
3
5

Артикул

Название

Примечание

Количество

87424815

TRANSMISSION

Powershift Transmission, Four Wheel Drive, Incl. Ref 1 - 53; Also Includes Parts On Figures 06-25 - 06-35, 06-36

1шт.

87424815R

REMAN-TRANSMISSION

Remanufactured Transmission, Powershift, Does Not Include Torque Converter ,Trans SN (BSN N7C431651)

1шт.

87424815C

CORE-TRANSMISSION

Return Part Number

1шт.

87749356

TRANSMISSION

Powershift Transmission, Four Wheel Drive, Incl. Ref 1 - 53; Also Includes Parts On Figures 06-25 - 06-34, 06-35A, 06-36; 590SM Trans. SN N7C431651 -; Replaces 87645686

1шт.

87749356R

REMAN-TRANSMISSION

590SM (SERIES 2) (TIER 2) (NA) (SN N7C431651-) (2/04-)

1шт.

87749356C

CORE-TRANSMISSION

Return Part Number

1шт.

1

291523A1

PUMP

Charge, Incl. Ref 2 - 5

1шт.

2

292420A1

O-RING

Seal

1шт.

3

292174A1

OIL SEAL

1шт.

4

815-8055

BOLT,Hex, M8 x 1.25 x 55mm, Cl 8.8

6шт.

5

291535A1

WASHER

6шт.

Выбрано товаров: 11
