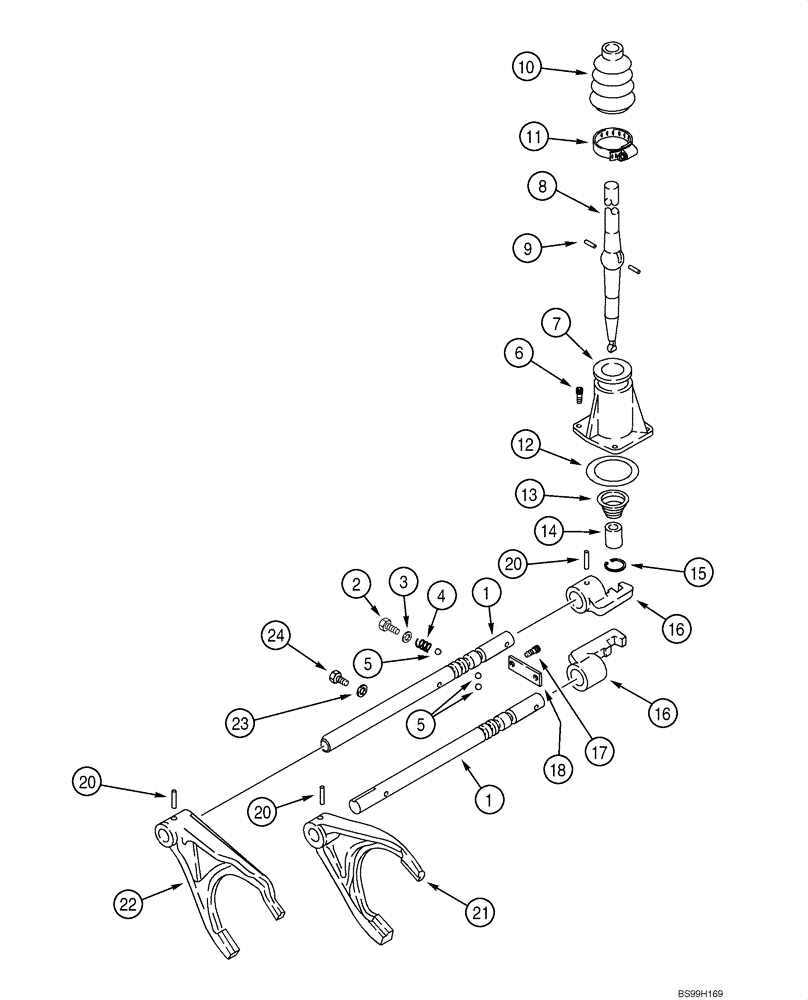

Запчасти Case 590SM (06-18) - TRANSMISSION ASSY - SHIFTER MECHANISM (MODELS WITHOUT POWERSHIFT) (06) - POWER TRAIN

87396484

TRANSMISSION

Two Wheel Drive, Incl. Ref 1 - 24; Also Includes Parts On Figures 06-14 - 06-23B; Replaces 86984097, 87456843

1шт.

87396484R

REMAN-TRANSMISSION

Remanufactured, 2WD Carraro Synchronized Transmission

1шт.

87396484C

CORE-TRANSMISSION

Return Part Number

1шт.

87396485

TRANSMISSION

Four Wheel Drive, Incl. Ref 1 - 24; Also Includes Parts On Figures 06-14 - 06-24; Replaces 86984098, 87456844

1шт.

87396485R

REMAN-TRANSMISSION

Remanufactured, 4WD Carraro Synchronized Transmission

1шт.

87396485C

CORE-TRANSMISSION

Return Part Number

1шт.

1

181245A2

SHIFT RAIL

Fork

2шт.

2

614-12016

BOLT,Hex, M12 x 1.75 x 16mm, Cl 8.8, Full Thd

2шт.

3

87429994

SEALING WASHER,12mm ID x 20mm OD x 1.5mm Thk

12 x 20 x 1.5 mm

2шт.

4

1966993C1

SPRING

2шт.

5

181139A1

BALL,10mm OD

4шт.

6

864-8025

HEX SOC SCREW,M8 x 25mm, Cl 8.8

3шт.

7

181171A1

COVER

1шт.

8

190428A3

LEVER

1шт.

9

1967585C1

PIN

Pin

2шт.

10

1967581C1

BOOT

1шт.

11

181177A1

CLAMP

1шт.

12

181138A1

O-RING,0.103" Thk x 2.362" ID, -142, Cl 5, 75 Duro

1шт.

13

278533A1

SPRING

1шт.

14

278532A1

BUSHING

1шт.

15

279039A1

RING, SNAP

RING SNAP

1шт.

16

181173A1

SELECTOR

Shifter

2шт.

17

864-10025

HEX SOC SCREW,M10 x 25mm, Cl 8.8

M10 x 25

2шт.

18

181175A1

PLATE

1шт.

20

905794R1

PIN,M6 x 30, Coiled

6 x 30 mm

4шт.

21

181203A1

SHIFTER FORK

First and Second

1шт.

22

181174A2

SHIFTER FORK

Third and Fourth

1шт.

23

87429985

SEALING WASHER,10mm ID x 18mm OD x 1.5mm Thk

1шт.

24

1967531C1

BOLT

M10 x 1 x 25

1шт.
