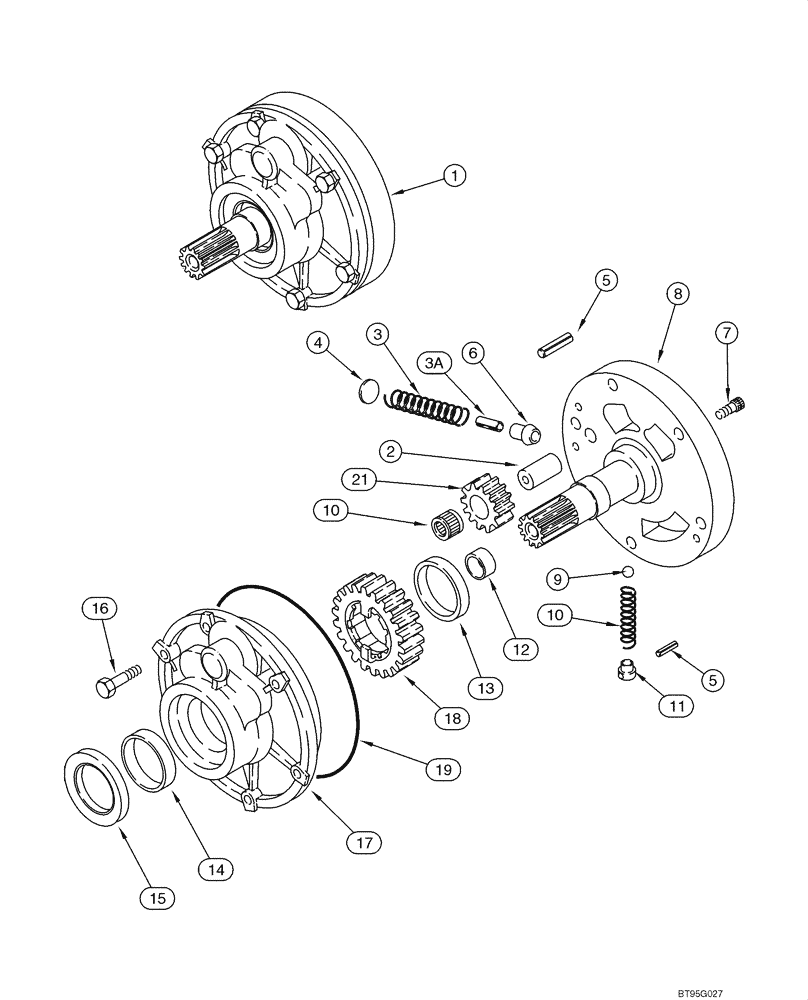

Запчасти Case 590SM (06-17) - TRANSMISSION ASSY - PUMP, OIL (MODELS WITHOUT POWERSHIFT) (06) - POWER TRAIN

87396484

TRANSMISSION

Two Wheel Drive, Incl. Ref 1 - 21; Also Includes Parts On Figures 06-14 - 06-23B; Replaces 86984097, 87456843

1шт.

87396484R

REMAN-TRANSMISSION

Remanufactured, 2WD Carraro Synchronized Transmission

1шт.

87396484C

CORE-TRANSMISSION

Return Part Number

1шт.

87396485

TRANSMISSION

Four Wheel Drive, Incl. Ref 1 - 21; Also Includes Parts On Figures 06-14 - 06-24; Replaces 86984098, 87456844

1шт.

87396485R

REMAN-TRANSMISSION

Remanufactured, 4WD Carraro Synchronized Transmission

1шт.

87396485C

CORE-TRANSMISSION

Return Part Number

1шт.

1

87429970

PUMP

Charge, Incl. Ref 2 - 21

1шт.

1

87429970R

REMAN-HYD PUMP

Charge

1шт.

1

87429970C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Shaft

1шт.

3

NSS

NOT SOLD SEPARAT

Spring

1шт.

3a

NSS

NOT SOLD SEPARAT

Pin

1шт.

4

NSS

NOT SOLD SEPARAT

Stop

1шт.

5

NSS

NOT SOLD SEPARAT

Pin, Roll

2шт.

6

NSS

NOT SOLD SEPARAT

Piston

1шт.

7

NSS

NOT SOLD SEPARAT

Bolt

2шт.

8

NSS

NOT SOLD SEPARAT

Support

1шт.

9

NSS

NOT SOLD SEPARAT

Ball

1шт.

10

NSS

NOT SOLD SEPARAT

Spring

1шт.

11

NSS

NOT SOLD SEPARAT

Guide

1шт.

12

NSS

NOT SOLD SEPARAT

Bushing

1шт.

13

NSS

NOT SOLD SEPARAT

Bushing

1шт.

14

NSS

NOT SOLD SEPARAT

Bushing

1шт.

15

87429971

OIL SEAL

1шт.

16

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

6шт.

17

NSS

NOT SOLD SEPARAT

Housing

1шт.

18

NSS

NOT SOLD SEPARAT

Gear, 23T

1шт.

19

181142A1

O-RING,2.5mm Thk x 183mm ID, 70 Duro

1шт.

20

NSS

NOT SOLD SEPARAT

Bearing, Needle

1шт.

21

NSS

NOT SOLD SEPARAT

Gear, 12T

1шт.
