(06-09) - DRIVE SHAFT, FRONT AXLE

Запчасти Case 590SM (06-09) - DRIVE SHAFT, FRONT AXLE (06) - POWER TRAIN

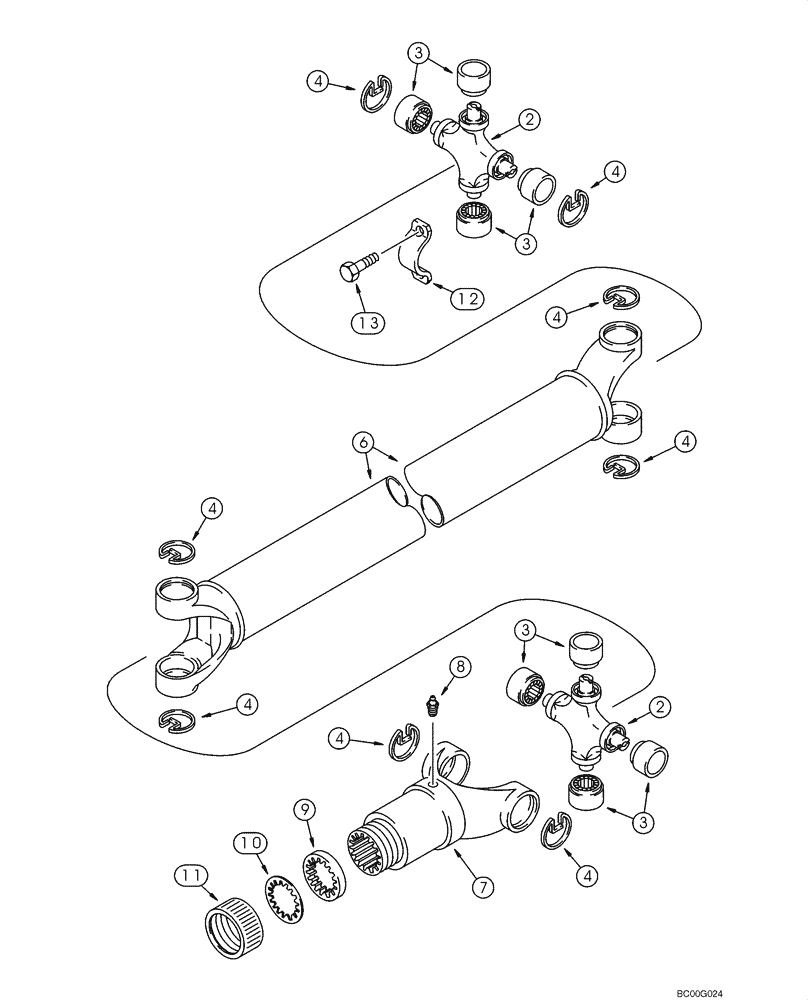

Схема запчастей Case 590SM - (06-09) - DRIVE SHAFT, FRONT AXLE (06) - POWER TRAIN
9
3
2
12
4
4
3
6
3
13
7
4
4
11
2
4
10
4
4
3
8
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

367861A2

DRIVE SHAFT

With or Without Powershift Transmission, Incl. 393231A1, Ref 2 - 13; Dana Brand; No Longer Available, Order 87405326 Driveshaft

1шт.

87405326

DRIVE SHAFT

Neapco Brand; Component Parts Not Available

1шт.

393231A1

SPIDER

Kit, Universal Joint, Incl. Ref 2 - 4

2шт.

2

NSS

NOT SOLD SEPARAT

Joint, Universal

1шт.

3

NSS

NOT SOLD SEPARAT

Bearing, Journal

4шт.

4

NSS

NOT SOLD SEPARAT

Ring, Retaining

4шт.

6

393234A1

DRIVE SHAFT

1шт.

7

144279A1

YOKE

UNIVERSAL JOINT YOKE

1шт.

8

219-10

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

D149860

SERVICE KIT

Incl. Ref 9 - 11

1шт.

9

NSS

NOT SOLD SEPARAT

Washer, Cork

1шт.

10

NSS

NOT SOLD SEPARAT

Washer, Steel

1шт.

11

NSS

NOT SOLD SEPARAT

Cap

1шт.

12

90-6682T1

CLAMP

2шт.

13

9637611

SCREW,Hex Flng, 5/16" - 24 x 3/4"

Replaces D137627 Bolt

4шт.
