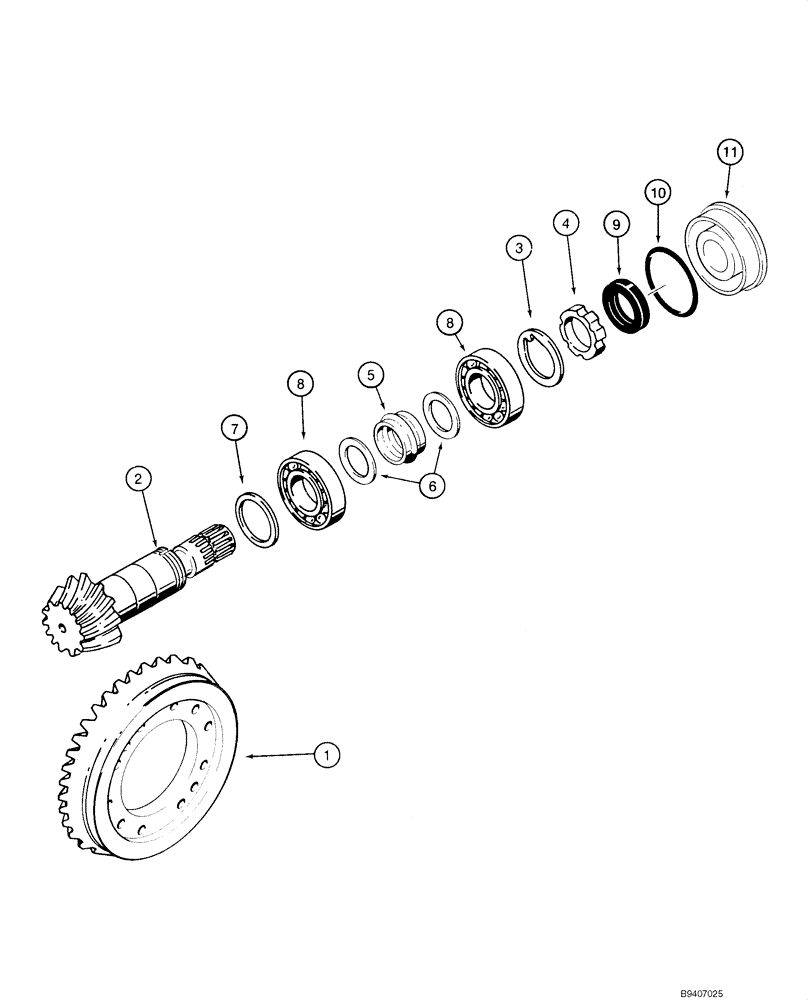

Запчасти Case 590SM (06-08) - AXLE, FRONT DRIVE - RING AND PINION (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
87417392
4WD AXLE ASSY
Front, Models Without Powershift Transmission, Incl. Ref 1 - 11; Also Includes Parts On Figures 06-02 - 06-08
1шт.
87417392R
REMAN-FRT AXLE 4 WD
REMAN-FRONT AXLE, 4WD Remanufactured, 87417392 Axle
1шт.
87417392C
CORE-FRT AXLE 4 WD
CORE-FRONT AXLE, 4WD Return Number, 387417392 Axle, Core, Use This Part Number To Return Core For Credit When Using A Remanufactured Assy
1шт.
87417393
4WD AXLE ASSY
Front, Models With Powershift Transmission, Incl. Ref 1 - 11; Also Includes Parts On Figures 06-02 - 06-08
1шт.
87417393R
REMAN-FRT AXLE 4 WD
REMAN-FRONT AXLE, 4WD Remanufactured, 87417393 Axle, North America Only
1шт.
87417393C
CORE-FRT AXLE 4 WD
CORE-FRONT AXLE, 4WD Return Number, 387417393 Axle, Core, Use This Part Number To Return Core For Credit When Using A Remanufactured Assy, N.A. Only
1шт.
311047A1
GEAR, BEVEL
BEVEL GEAR Ring and Pinion Gear Set, Incl. Ref 1 - 6; 87417393 Axle
1шт.
1
NSS
NOT SOLD SEPARAT
Ring, Gear
1шт.
2
NSS
NOT SOLD SEPARAT
Gear, Pinion Gear
1шт.
195210A1
GEAR SET
Ring and Pinion, Incl Ref 1 - 6; 87417392 Axle
1шт.
3
K261065
LOCK WASHER
1шт.
4
K261014
RING NUT,M40 x 1.5
Ring
1шт.
5
1349058C1
SPACER
Collapsible
1шт.
6
1349059C1
WASHER,40.5mm ID x 50mm OD x 2mm Thk
2шт.
7
140954A1
SHIM,2.50mm Thk
(0.098")
1шт.
7
140953A1
SHIM,2.60mm Thk
(0.102")
1шт.
7
140951A1
SHIM,2.70mm Thk
(0.106")
1шт.
7
140949A1
SHIM,2.80mm Thk
(0.110")
1шт.
7
140948A1
SHIM,2.90mm Thk
(0.114")
1шт.
7
140943A1
SHIM,3.00mm Thk
(0.118")
1шт.
7
140944A1
SHIM,3.10mm Thk
(0.122")
1шт.
7
140946A1
SHIM,3.30mm Thk
(0.129")
1шт.
7
140947A1
SHIM,3.40mm Thk
(0.133")
1шт.
10
238-5152
O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro
1шт.
11
128570A1
FLANGE
Cover, Differential
1шт.
B17575
FLUID
89 ml, Black RTV Silicone, Differential Cover to Differential Carrier
1шт.
Выбрано товаров: 29
