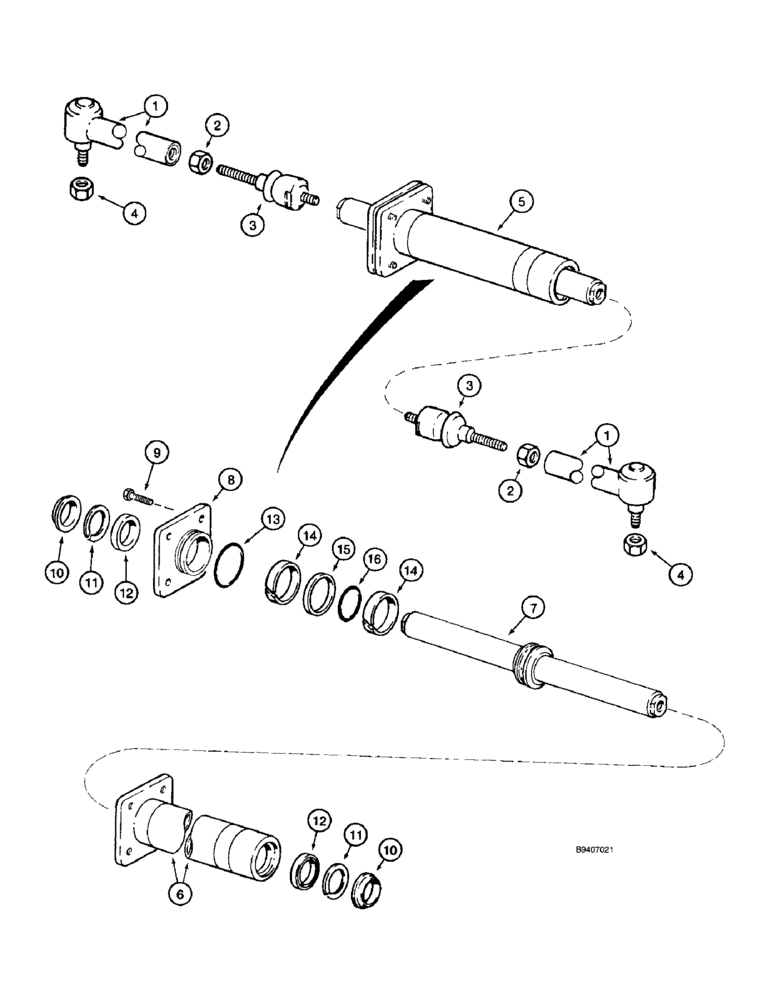

Запчасти Case 590SM (06-04) - AXLE, FRONT DRIVE - CYLINDER, STEERING (06) - POWER TRAIN

.

87417392

4WD AXLE ASSY

Front, Models Without Powershift Transmission, Incl. Ref 1 - 16; Also Includes Parts On Figures 06-02 - 06-08

1шт.

.

87417392R

REMAN-FRT AXLE 4 WD

REMAN-FRONT AXLE, 4WD Remanufactured, 87417392 Axle

1шт.

.

87417392C

CORE-FRT AXLE 4 WD

CORE-FRONT AXLE, 4WD Return Number, 387417392 Axle, Core, Use This Part Number To Return Core For Credit When Using A Remanufactured Assy

1шт.

.

87417393

4WD AXLE ASSY

Front, Models With Powershift Transmission, Incl. Ref 1 - 16; Also Includes Parts On Figures 06-02 - 06-08

1шт.

.

87417393R

REMAN-FRT AXLE 4 WD

REMAN-FRONT AXLE, 4WD Remanufactured, 87417393 Axle, North America Only

1шт.

.

87417393C

CORE-FRT AXLE 4 WD

CORE-FRONT AXLE, 4WD Return Number, 387417393 Axle, Core, Use This Part Number To Return Core For Credit When Using A Remanufactured Assy, N.A. Only

1шт.

1

D142916

BALL JOINT

Assembly, Arm, Steering; Incl. Ref 1 thru 4

2шт.

1

183677A1

BALL JOINT,34mm OD x 260mm L

1шт.

2

126143A1

NUT

1шт.

3

N14377

ARTICULATION

1шт.

4

107070A1

LOCK NUT

2шт.

5

D149729

STEERING CYLINDER,Double Acting, 36mm Rod, 121mm Stroke

CYLINDER ASSEMBLY - steering, order D149739 kit to service seals, see below, Includes: Ref.6 - 16

1шт.

6

D149738

STEERING CYLINDER

1шт.

7

D149736

ROD

1шт.

8

D149737

GLAND

1шт.

9

114296A1

BOLT

4шт.

10

NSS

NOT SOLD SEPARAT

WIPER - rod

2шт.

11

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

12

NSS

NOT SOLD SEPARAT

SEAL - rod

2шт.

13

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

14

NSS

NOT SOLD SEPARAT

RING - wear

2шт.

15

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - expander

1шт.

D149739

SEAL PACKAGE

Incl. Ref 10 - 16

1шт.

B17575

FLUID

89 ml, Black RTV Silicone, Cylinder Flange Cylinder

1шт.
