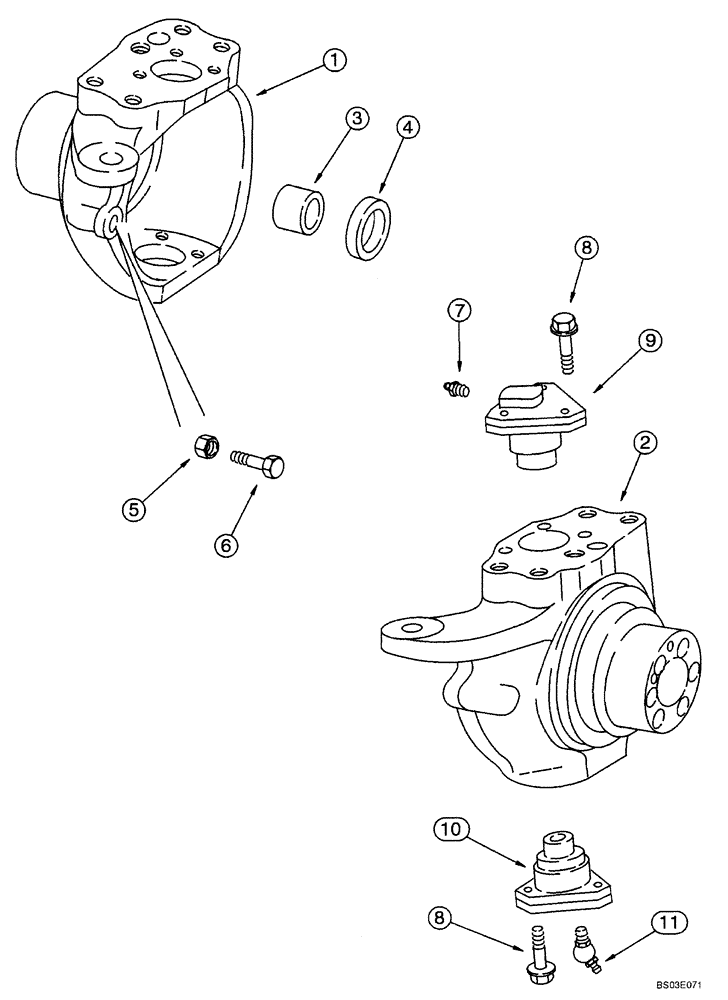

Запчасти Case 590SM (06-03) - AXLE, FRONT DRIVE - HOUSING, SWIVEL (06) - POWER TRAIN

87417392

4WD AXLE ASSY

Front, Models Without Powershift Transmission, Incl. Ref 1 - 11; Also Includes Parts On Figures 06-02 - 06-08

1шт.

87417392R

REMAN-FRT AXLE 4 WD

REMAN-FRONT AXLE, 4WD Remanufactured, 87417392 Axle

1шт.

87417392C

CORE-FRT AXLE 4 WD

CORE-FRONT AXLE, 4WD Return Number, 387417392 Axle, Core, Use This Part Number To Return Core For Credit When Using A Remanufactured Assy

1шт.

87417393

4WD AXLE ASSY

Front, Models With Powershift Transmission, Incl. Ref 1 - 11; Also Includes Parts On Figures 06-02 - 06-08

1шт.

87417393R

REMAN-FRT AXLE 4 WD

REMAN-FRONT AXLE, 4WD Remanufactured, 87417393 Axle, North America Only

1шт.

87417393C

CORE-FRT AXLE 4 WD

CORE-FRONT AXLE, 4WD Return Number, 387417393 Axle, Core, Use This Part Number To Return Core For Credit When Using A Remanufactured Assy, N.A. Only

1шт.

1

295576A1

HUB

Left-Hand

1шт.

2

295575A1

HOUSING

Right-Hand

1шт.

B17575

FLUID

89 ml, Black RTV Silicone, Wear Ring to Swivel Housing

1шт.

3

1967535C1

BUSHING

Used With Right-Hand or Left-Hand Swivel Housing, Not Included With Housing, Purchase Separately

2шт.

4

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

Oil

2шт.

5

85805986

NUT,M16

2шт.

6

1537664C1

BOLT,M16 x 100mm

2шт.

7

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

2шт.

8

D150214

BOLT,Lock, Hex, M14 x 2 x 35mm, Cl 10.9

Lock, M14 x 35

12шт.

9

122260A1

PIVOT

King Pin, Upper

2шт.

10

122259A1

PIVOT,120mm OD, 15mm ID, 5mm L

King Pin, Lower

2шт.

11

N13505

LUBE NIPPLE,45 Degree, M6 x 1

2шт.
