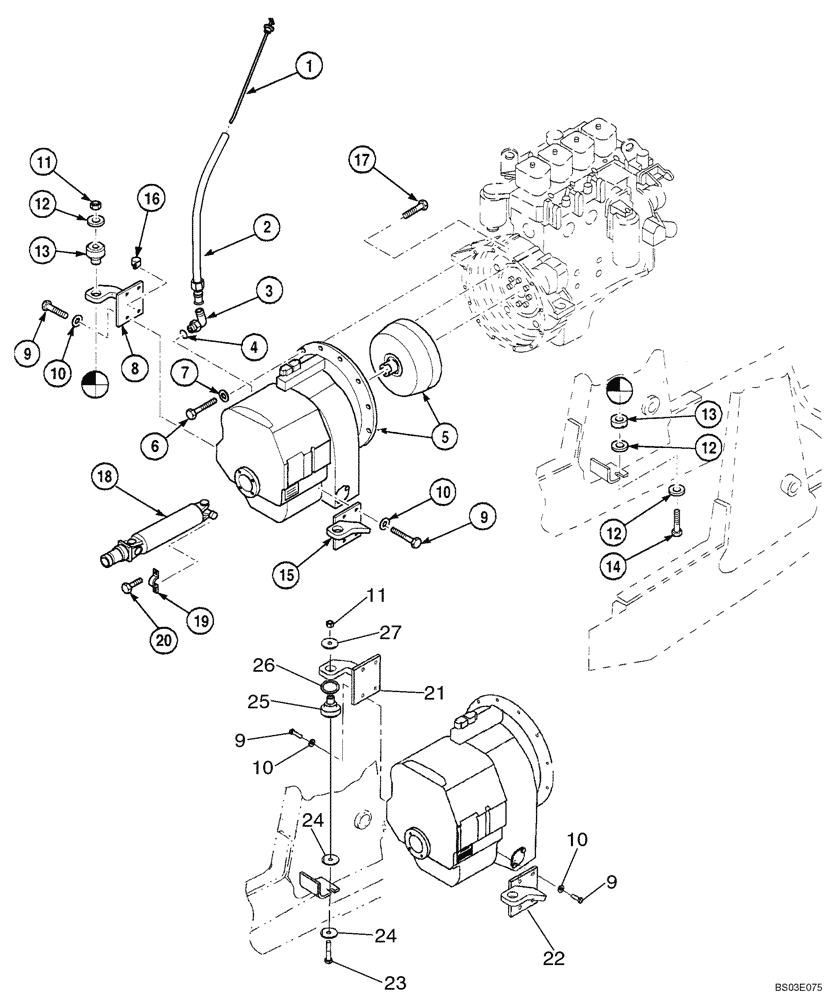

Запчасти Case 590SM (06-13) - TRANSMISSION - MOUNTING (MODELS WITH POWERSHIFT) (06) - POWER TRAIN

1

370630A1

DIPSTICK,669mm L

1шт.

2

393999A1

TUBE,25.4 mm OD

Dipstick

1шт.

3

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref 4

1шт.

4

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

5

336896A1

GEARBOX ASSY

TRANSMISSION, New, Four Wheel Drive Models, See Figure 06-25 - 06-36; No Longer Available, Order 445174A1 Transmission

1шт.

87420798R

REMAN-TRANSMISSION

Reman, transmission, powershift; Does Not Include Torque Converter

1шт.

87420798C

CORE-TRANSMISSION

Return Part Number

1шт.

87425577

REMAN-TRANSMISSION

Remanufactured 336896A1 Transmission, Component Parts Not Serviced Separately

1шт.

87425578

CORE-TRANSMISSION

Return Part Number, 336896A1 Transmission Core, Use To Return Core For Credit When Using A Remanufactured Assembly

1шт.

5

445174A1

TRANSMISSION

New, Four Wheel Drive Models, See Figure 06-25 - 06-36

1шт.

5

87425577

REMAN-TRANSMISSION

Remanufactured 445174A1 Transmission, Component Parts Not Serviced Separately

1шт.

5

87425579

CORE-TRANSMISSION

Return Part Number, 445174A1 Transmission Core, Use To Return Core For Credit When Using A Remanufactured Assembly

1шт.

7

496-21041

WASHER,13/32" x 13/16" x .089", HDN

12шт.

8

371724A1

MOUNTING PARTS

Left-Hand Bracket, 38.29 mm (1-1/2 in) Diameter Hole; No Longer Available, Order 411834A1 Bracket, Ref 21

1шт.

9

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

8шт.

10

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

8шт.

11

832-10416

NUT,M16 x 2, Cl 8

2шт.

12

D35009

WASHER

Special, If Used

6шт.

13

117846A1

INSULATOR BLOCK,16.69mm ID x 64.8mm OD x 84.6mm L

Two Piece Insulator, If Used

2шт.

14

814-16110

BOLT,Hex, M16 x 2 x 110mm, Cl 8.8

If used

2шт.

15

371726A1

MOUNTING PARTS

Right-Hand Bracket, 38.29 mm (1-1/2 in) Diameter Hole; No Longer Available, Order 411832A1 Bracket, Ref 22

1шт.

16

D35908

CLAMP,1" Clamping pipe

1шт.

17

340968A1

BOLT

8шт.

18

367859A2

DRIVE SHAFT

Transmission to Rear Axle, See Figure 06-47

1шт.

19

90-6682T1

CLAMP

2шт.

20

9637611

SCREW,Hex Flng, 5/16" - 24 x 3/4"

Hex Flange Head, Special, 5/16 - 24 UNF x 1-1/16; Replaces D137627 Bolt

4шт.

21

411834A1

MOUNTING PARTS

Left-Hand Bracket, 60.5 mm (2-3/8 in) Diameter Hole

1шт.

22

411832A1

MOUNTING PARTS

Right-Hand Bracket, 60 mm (2-23/64 in) Diameter Hole

1шт.

23

814-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 8.8

If used

2шт.

24

186977A1

WASHER,17mm ID x 70mm OD x 4.5mm Thk

If Used

4шт.

25

411623A1

RUBBER MOUNTING

Two Piece (19.6 mm ID) If Used

2шт.

26

413459A1

SHIM

If Used

2шт.

27

413460A1

SHIM

If Used

2шт.

6

627-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

12шт.
