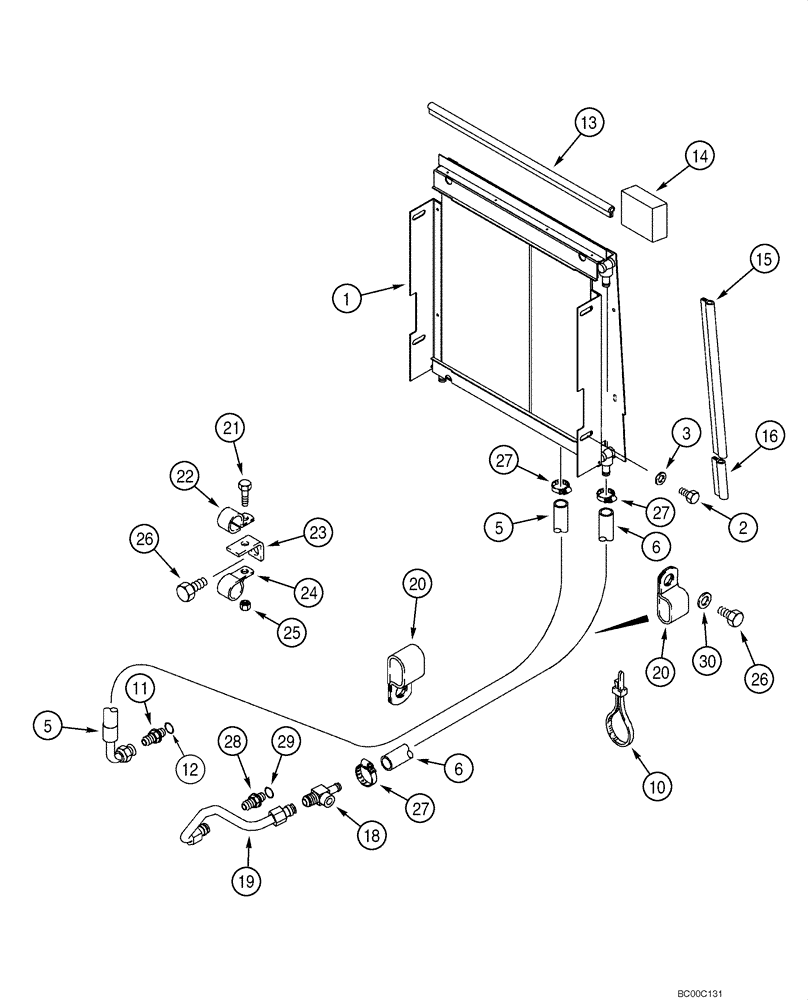

Запчасти Case 590SM (06-11) - COOLING SYSTEM - TRANSMISSION (MODELS WITH POWERSHIFT) (06) - POWER TRAIN

1

383355A2

OIL COOLER

For Mounting Hardware, See Figure 09-36; For Additional Hydraulic Routing, See Figure 08-03

1шт.

2

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

5

303987A2

HOSE

2075 mm (81-11/16 in), Transmission to Cooler Inlet

1шт.

6

301340A2

HOSE

2000 mm (78-3/4 in), Cooler, Serial Range: Outlet-Transmission

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

5шт.

11

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

7/8 fl x 1-1/16 Or; Incl. Ref 12

1шт.

12

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

13

233972A1

SEAL

564 mm (22-7/32 in), Horizontal

1шт.

14

234719A1

SEAL

Seal, 70 x 100 x 32 mm, Upper Corner, Use With 345-44 Adhesive

2шт.

345-44

ADHESIVE

Spray Can, 3M No. 74, 23 ounce

1шт.

15

233970A1

SEAL

472 mm (18-5/8 in), Vertical

2шт.

16

233971A1

SEAL

103 mm (4-1/16 in), Lower

2шт.

18

359210A1

FITTING

Tee

1шт.

19

241001A4

TUBE

Tube At Transmission

1шт.

20

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

1шт.

21

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

22

515-25238

CLAMP,15/16", Insul, 1/2" Bolt

1шт.

23

234442A1

SUPPORT

1шт.

24

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

1шт.

25

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

26

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

27

328186A1

HOSE CLAMP,400mm L

3шт.

28

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref 29

1шт.

29

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

30

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

11 x 21 x 2 mm

2шт.
