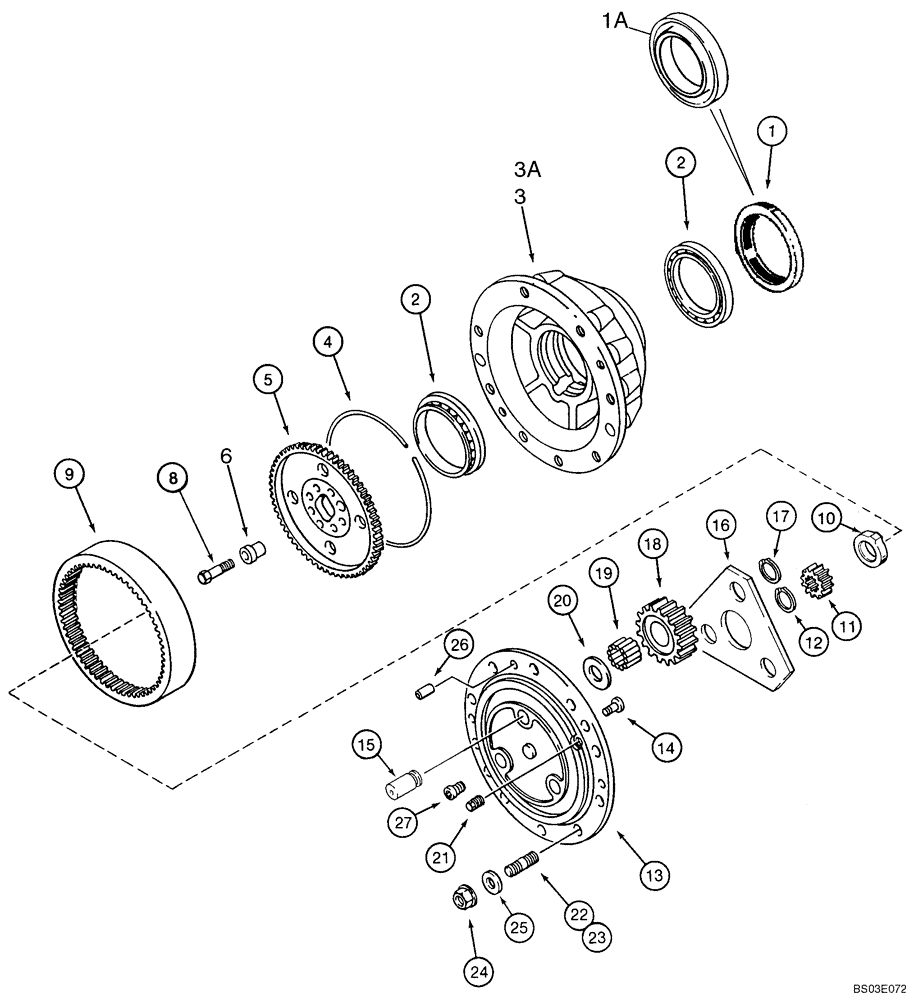

Запчасти Case 590SM (06-06) - AXLE, FRONT DRIVE - PLANETARY (06) - POWER TRAIN

381382A1

4WD AXLE ASSY

Front, Models Without Powershift Transmission, Incl. Ref 1 - 27; Also Includes Parts On Figures 06-02 - 06-08

1шт.

87417392R

REMAN-FRT AXLE 4 WD

Reman for New PN 381382A1

1шт.

87417392C

CORE-FRT AXLE 4 WD

Return Number

1шт.

381383A1

4WD AXLE ASSY

Front, Models With Powershift Transmission, Incl. Ref 1 - 27; Also Includes Parts On Figures 06-02 - 06-08

1шт.

1

1349265C1

OIL SEAL,149mm ID x 176mm OD x 16mm Thk

Oil, 149 x 176 x 16, Used With Ref 3, K395123 Hub; If Used

2шт.

1a

247546A1

OIL SEAL,150mm ID x 180mm OD x 14.50mm W

Oil, With Internal Garter Spring Seal; Used With Ref 3A, 87415747 Hub; If Used

2шт.

2

K395101

TAPERED BEARING,109.5mm ID x 126mm x 21.4mm L

4шт.

3

K395123

HUB

Used With Ref 1 Seal and 195211A1 Axle Shaft On Figure 06-05; For Bushing Used On The Axle Housing With This Hub, See Figure 06-02, Ref 10, 11

2шт.

3a

87415747

HUB

Used With Ref 1A Seal and 87415750 Axle Shaft On Figure 06-05; For Bushing Used On The Axle Housing With This Hub, See Figure 06-02, Ref 10A, 11A

2шт.

B17575

FLUID

89 ml, Black RTV Silicone, Planetary, Serial Range: Cover-Hub

1шт.

4

H437679

RING, SNAP

RING SNAP

2шт.

5

295581A1

PINION CARRIER

GEAR CARRIER

2шт.

6

107071A1

BUSHING

20 mm OD

8шт.

8

K395131

BOLT,Hex, M14 x 1.5 x 65mm, Cl 10.9

8шт.

9

H437677

GEAR, RING

RING, GEAR Planetary Gear

2шт.

10

107073A1

WASHER,30mm ID x 49mm OD x 15mm H

Spacer

2шт.

11

K395114

GEAR

Pinion Gear

2шт.

12

800-1129

SNAP RING,M29, Ext

No. 29

2шт.

K262251

PINION CARRIER

Planetary Carrier, Incl. Ref 13 - 15

2шт.

13

NSS

NOT SOLD SEPARAT

Carrier

1шт.

14

K395093

HEADED PIN,12mm OD x 15mm L

Lock

2шт.

15

NSS

NOT SOLD SEPARAT

Shaft, Pinion Gear

3шт.

B17575

FLUID

89 ml, Black RTV Silicone, Planetary, Serial Range: Cover-Hub

1шт.

16

K395122

PLATE

Thrust Washer

2шт.

17

800-1134

SNAP RING,M34, Ext

6шт.

18

K395110

GEAR

Pinion

6шт.

19

119685A1

NEEDLE BEARING

18шт.

20

K395091

THRUST WASHER

6шт.

21

A156873

PLUG, DRAIN,M22 x 1.5

2шт.

22

K260218

STUD

Without Flanged Collar

12шт.

23

N13515

STUD

With Flanged Collar

4шт.

24

825-11418

NUT,M18 x 1.5, Cl 8

M18, Wheel Mounting, Purchase Separately

16шт.

25

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

Wheel Mounting, Purchase Separately

16шт.

26

K395094

DOWEL,M18 x 36

4шт.

27

K395029

SCREW

4шт.

87417393R

REMAN-FRT AXLE 4 WD

REMAN-FRONT AXLE, 4WD Remanufactured AXLE - NA Only

1шт.
