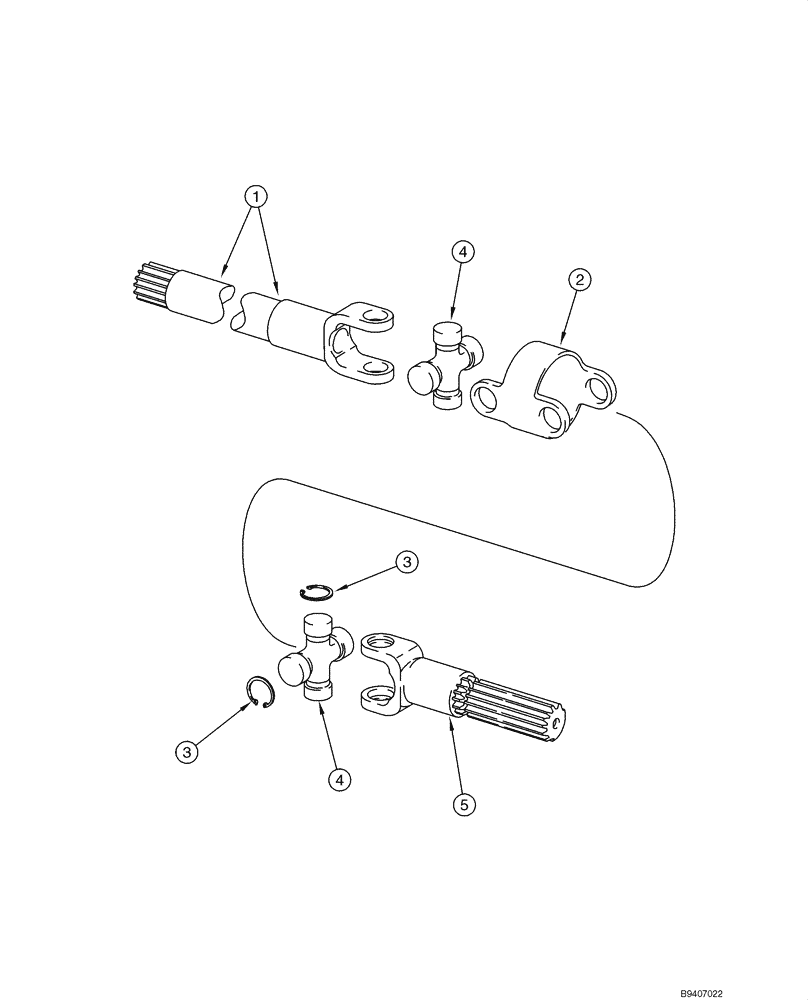

Запчасти Case 590SM (06-05) - AXLE, FRONT DRIVE - SHAFTS, AXLE (06) - POWER TRAIN

381382A1

4WD AXLE ASSY

Front, Models Without Powershift Transmission, Incl. Ref 1 - 5; Also Includes Parts On Figures 06-02 - 06-08

1шт.

87417392R

REMAN-FRT AXLE 4 WD

Reman for New PN 381382A1

1шт.

87417392C

CORE-FRT AXLE 4 WD

Return Number

1шт.

381383A1

4WD AXLE ASSY

Front, Models With Powershift Transmission, Incl. Ref 1 - 5; Also Includes Parts On Figures 06-02 - 06-08

1шт.

195211A1

DRIVE SHAFT

W/O Powershift, Incl. Ref 1 - 5; Used With K395123 Hub and 1349265C1 Seal, See Figure 06-06; If Used

2шт.

1

195212A1

HALF SHAFT

Long, Differential Side

1шт.

2

195213A1

BODY

1шт.

3

N14410

RING

8шт.

4

195215A1

U-JOINT SPIDER

Incl. Ref 3

2шт.

5

N14409

SHAFT

Short, Wheel Side

1шт.

87415750

ARTICULATED SHAFT

With Powershift, Incl. Ref 1 - 5; Used With 87415747 Hub and 247546A1 Seal, See Figure 06-06; If Used

2шт.

1

87416066

HALF SHAFT

Long Differential Side

1шт.

2

390029A1

BODY

1шт.

3

N14410

RING

8шт.

4

144465A1

U-JOINT SPIDER

2шт.

5

N14409

SHAFT

Short, Wheel Side

1шт.

87417393R

REMAN-FRT AXLE 4 WD

REMAN-FRONT AXLE, 4WD Remanufactured AXLE - NA Only

1шт.
