(06-04) - AXLE, FRONT DRIVE - CYLINDER, STEERING

Запчасти Case 590SM (06-04) - AXLE, FRONT DRIVE - CYLINDER, STEERING (06) - POWER TRAIN

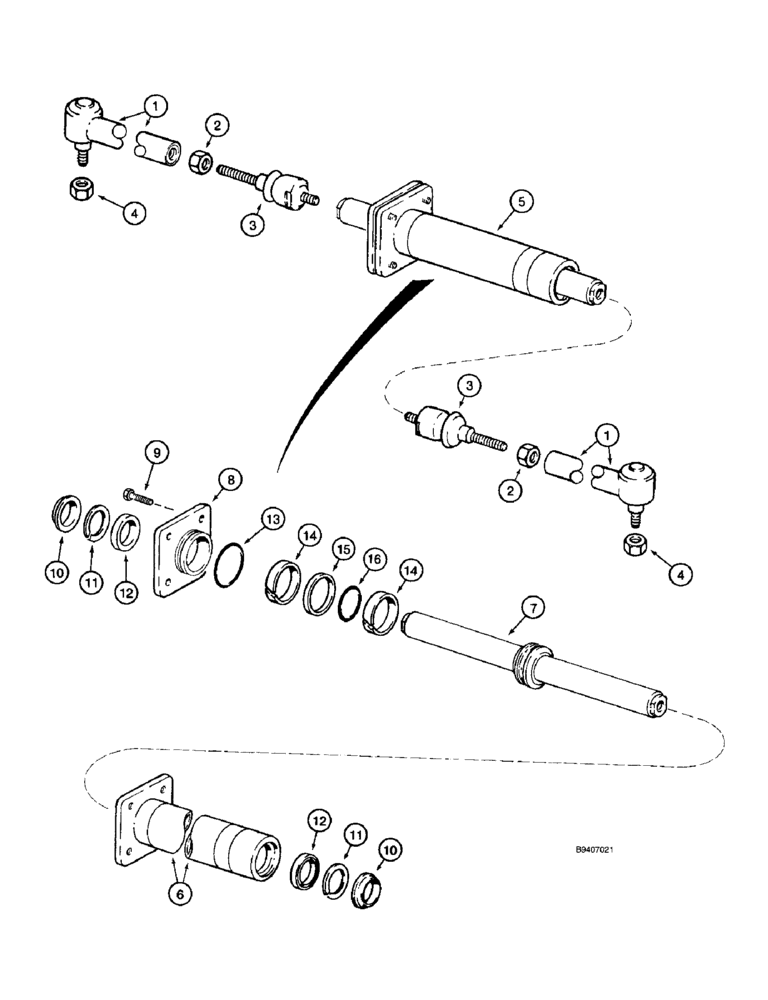

Схема запчастей Case 590SM - (06-04) - AXLE, FRONT DRIVE - CYLINDER, STEERING (06) - POWER TRAIN
11
6
3
15
12
5
8
12
16
3
1
2
14
1
13
10
10
11
7
2
14
4
4
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

381382A1

4WD AXLE ASSY

Front, Models Without Powershift Transmission, Incl. Ref 1 - 16; Also Includes Parts On Figures 06-02 - 06-08

1шт.

87417392R

REMAN-FRT AXLE 4 WD

Reman for New PN 381382A1

1шт.

87417392C

CORE-FRT AXLE 4 WD

Return Number

1шт.

381383A1

4WD AXLE ASSY

Front, Models With Powershift Transmission, Incl. Ref 1 - 16; Also Includes Parts On Figures 06-02 - 06-08

1шт.

1

D142916

BALL JOINT

Arm, Steering; Incl. Ref 1 thru 4

2шт.

1

183677A1

BALL JOINT,34mm OD x 260mm L

1шт.

2

126143A1

NUT

1шт.

3

N14377

ARTICULATION

1шт.

4

107070A1

LOCK NUT

M20

2шт.

5

D149729

STEERING CYLINDER,Double Acting, 36mm Rod, 121mm Stroke

Incl. Ref 6 - 16; Order D149739 Kit to Service Seals

1шт.

6

D149738

STEERING CYLINDER

TUBE

1шт.

7

D149736

ROD

Piston

1шт.

8

D149737

GLAND

Gland

1шт.

9

114296A1

BOLT

For Service Order 100524A1 Bolt and 892-11012 Washer

4шт.

10

NSS

NOT SOLD SEPARAT

Seal, Wiper

2шт.

11

NSS

NOT SOLD SEPARAT

Ring, Backup

2шт.

12

NSS

NOT SOLD SEPARAT

Seal

2шт.

13

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

14

NSS

NOT SOLD SEPARAT

Ring, Wear

2шт.

15

NSS

NOT SOLD SEPARAT

Seal

1шт.

16

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

D149739

SEAL PACKAGE

Incl. Ref 10 - 16

1шт.

B17575

FLUID

89 ml, Black RTV Silicone, Cylinder Flange

1шт.
