(05-10) - AXLE, FRONT (377979A1 / 86990837) - CYLINDER, STEERING (IF USED)

Запчасти Case 590SM (05-10) - AXLE, FRONT (377979A1 / 86990837) - CYLINDER, STEERING (IF USED) (05) - STEERING

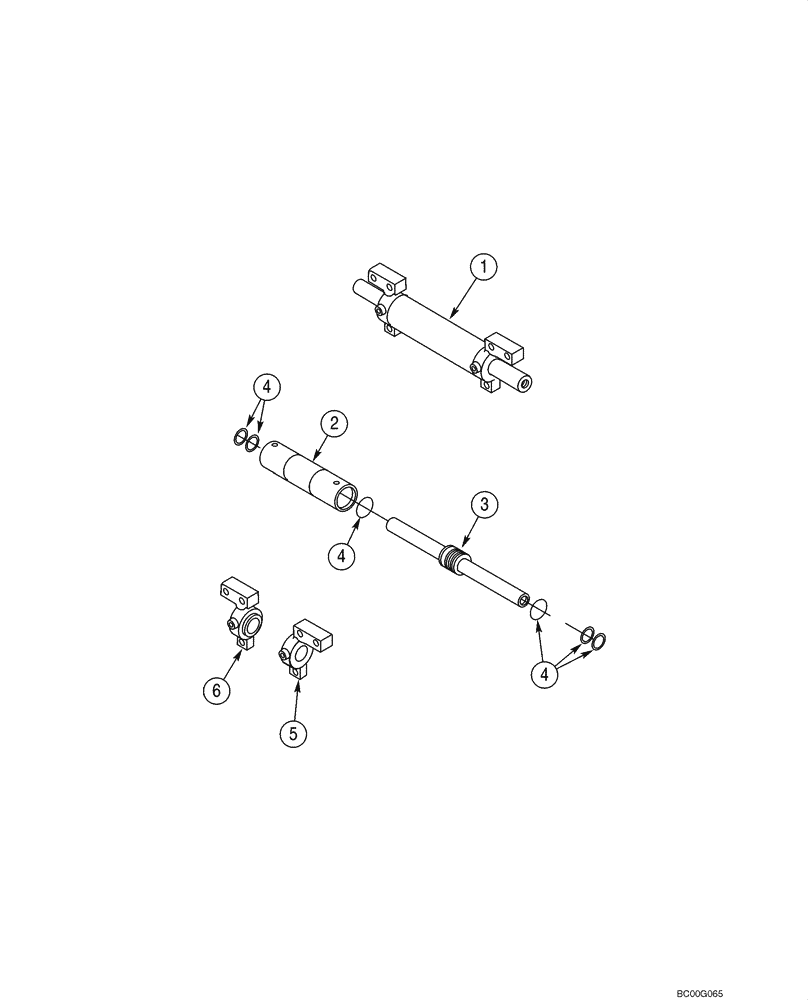

Схема запчастей Case 590SM - (05-10) - AXLE, FRONT (377979A1 / 86990837) - CYLINDER, STEERING (IF USED) (05) - STEERING
1
5
3
4
4
2
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

377979A1

AXLE, FRONT

Steering, Two Wheel Drive, Incl. Figures 05-08 - 05-11; If Used

1шт.

86990837

AXLE

Front, Two Wheel Drive, Incl. Figures 05-08 - 05-11; If Used

1шт.

1

401055A1

STEERING CYLINDER

(Two Wheel Drive) Incl. Ref 2 - 6

1шт.

2

NSS

NOT SOLD SEPARAT

Tube, Cylinder

1шт.

3

401062A1

PISTON ROD

1шт.

4

401061A1

SEAL KIT

Component Parts Not Serviced Separately

1шт.

5

401063A1

HEAD ASSY.

Right-Hand

1шт.

6

401064A1

HEAD ASSY.

Left-Hand

1шт.
