Запчасти Case 590SM (05-09) - AXLE, FRONT (377979A1 / 86990837) - HOUSING, SWIVEL (IF USED) (05) - STEERING

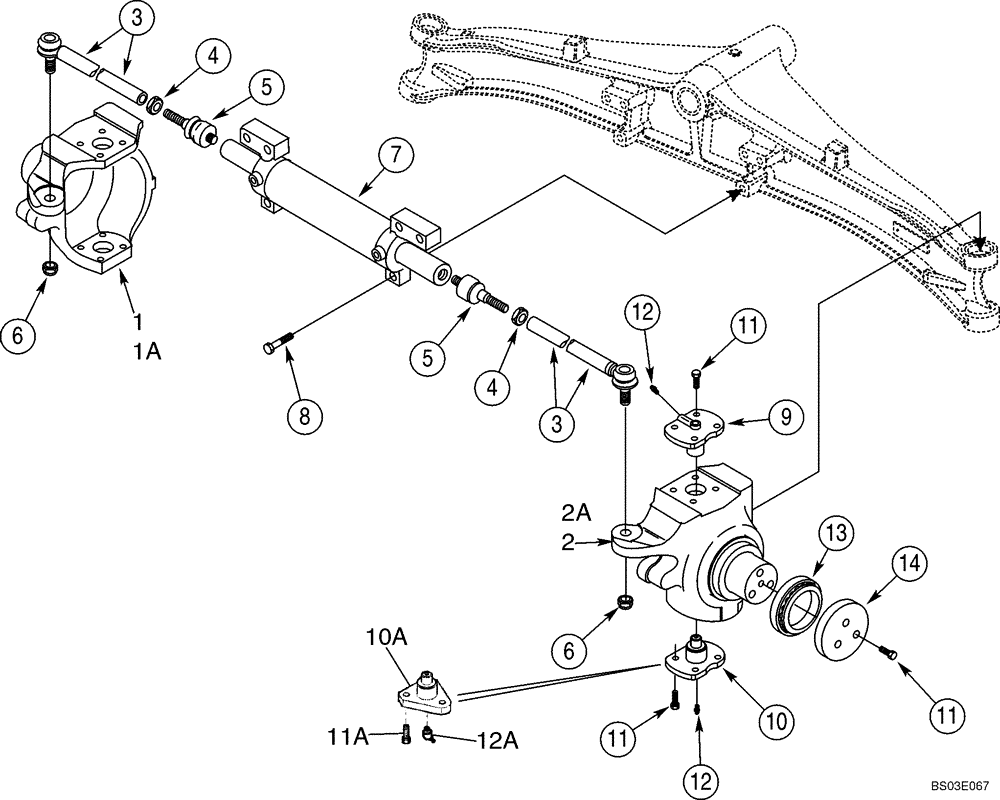

Схема запчастей Case 590SM - (05-09) - AXLE, FRONT (377979A1 / 86990837) - HOUSING, SWIVEL (IF USED) (05) - STEERING
4
11a
1a
11
2
10a
12a
6
14
3
12
6
13
5
9
5
11
7
3
1
12
8
4
10
11
2a

Артикул

Название

Примечание

Количество

377979A1

AXLE, FRONT

Steering, Two Wheel Drive, Incl. Figures 05-08 - 05-11; If Used

1шт.

86990837

AXLE

Front, Two Wheel Drive, Incl. Figures 05-08 - 05-11; If Used

1шт.

1

401051A1

HOUSING

Swivel, Left-Hand; 377979A1 Axle

1шт.

1a

429231A1

STEERING KNUCKLE,RH

Swivel, Left-Hand; 86990837 Axle

1шт.

2

401058A1

HOUSING

Swivel, Right-Hand; 377979A1 Axle

1шт.

2a

429232A1

STEERING KNUCKLE,LH

Swivel, Right-Hand; 86990837 Axle

1шт.

401052A1

STEERING ASSY

Arm, Incl. Ref 3 - 5

2шт.

3

401054A1

TIE-ROD,34mm OD x 260mm L

TIE ROD

1шт.

4

934727R1

THIN NUT,Thin, M18 x 1.5, Cl 04

M18

1шт.

5

112509A1

BALL JOINT

1шт.

6

905839R1

LOCK NUT,M18 x 1.5, Thin

M18

2шт.

7

401055A1

STEERING CYLINDER

(Two Wheel Drive) See Figure 05-10

1шт.

8

863-16070

HEX SOC SCREW,M16 x 70mm, Cl 12.9

6шт.

9

122265A1

PIN,35mm / 45mm OD x 45.5mm L

King, Upper

2шт.

10

122264A1

PIN

King, Lower, 377979A1 Axle

2шт.

10a

122259A1

PIVOT,120mm OD, 15mm ID, 5mm L

King Pin, Lower; 86990837 Axle, Triangular Shape

2шт.

11

100533A1

BOLT,Self-Lock, M12 x 30mm

Lock, M12 x 30; (14) 86990837 Axle; (22) 377979A1 Axle

14-22шт.

11a

D150214

BOLT,Lock, Hex, M14 x 2 x 35mm, Cl 10.9

Lock, M14 x 35; Lower King Pin, 86990837 Axle

6шт.

12

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

(2) 86990837 Axle; (4) 377979A1 Axle

2-4шт.

12a

N13505

LUBE NIPPLE,45 Degree, M6 x 1

Lower King Pin, 86990837 Axle

2шт.

13

401059A1

THRUST BEARING

Thrust

2шт.

14

401060A1

THRUST WASHER

2шт.

Выбрано товаров: 22
