Запчасти Case 590SM (05-05) - AXLE, FRONT (D148413 / 441647A1) - SPINDLES (IF USED) (05) - STEERING

111662A1

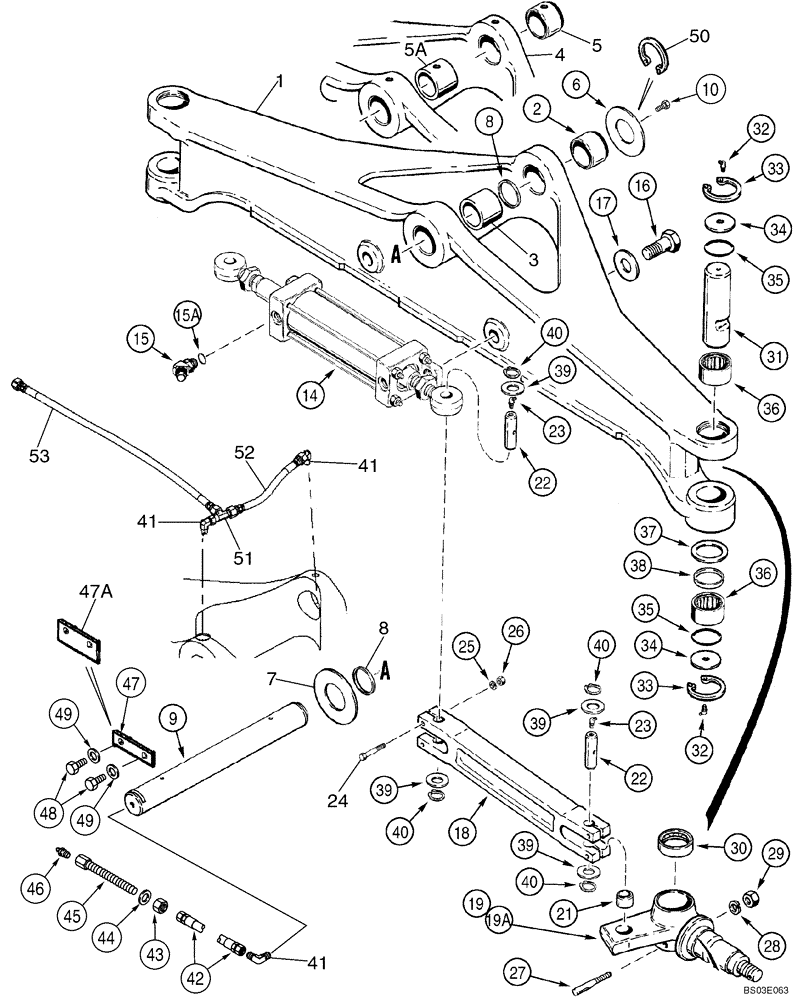

AXLE, FRONT

Used In Production, For Service Order D148413 Axle, Ref 1

1шт.

1

D148413

AXLE, FRONT

Incl. Ref 2, 3, 8; If Used

1шт.

2

D137345

BUSHING,50.19mm ID x 60mm OD x 36mm L

1шт.

3

D138047

BUSHING,50.22mm ID x 60mm OD x 54mm L

1шт.

4

441647A1

FRONT AXLE

Incl. Ref 5, 5A; If Used

1шт.

5

441132A1

BUSHING,50.19mm ID x 60mm OD x 36mm W

1шт.

5a

441131A1

BUSHING,50.22mm ID x 60mm OD x 65mm L

1шт.

6

191796A1

WASHER,51.6mm ID x 92mm OD x 1.98mm Thk

1шт.

7

D123684

WASHER,52.3mm ID x 114mm OD x 4.78mm Thk

1шт.

8

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

Grease

2шт.

9

397783A1

PIVOT PIN,50mm OD x 427mm L

Holes on Both Ends, Plus Two On Top; If Used

1шт.

9

378290A1

PIN,50mm OD x 431.5mm L

Holes on Both Ends, Plus Two On Top; If Used

1шт.

9

391451A1

PIVOT PIN,50mm OD x 431.5mm L

One Hole Opposite Tapered End; If Used

1шт.

10

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

If used

1шт.

14

1986518C2

STEERING CYLINDER

See Figure 05-04

1шт.

15

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. Ref 13

2шт.

15a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

16

13-1838

BOLT,Hex, 1-1/8" - 7 x 2-3/8", Gr 5, Full Thd

No Longer Used, For Service Order 446107A1 Bolt

2шт.

16

446107A1

BOLT (MACHINE),Hex, 1 1/8" - 7 x 2 3/8", Gr 5

Lock

2шт.

17

D74949

WASHER,28.96mm ID x 60.45mm OD x 4.88mm Thk

Hardened

2шт.

18

D123806

LINK, CONNECTING

2шт.

19

320977A1

SPINDLE

Right-Hand, .137 Inch Radius, Does Not Include Bushing, Order Bushing Separately, For Service Order 335130A1, Ref 19A

1шт.

19a

335130A1

SPINDLE

Right-Hand, .137 Inch Radius, Incl. Ref 21

1шт.

20

303428A1

SPINDLE

Left-Hand, .137 Inch Radius, Does Not Include Bushing, Order Bushing Separately, For Service Order 335132A1, Ref 20A, Not Illustrated

1шт.

20a

335132A1

SPINDLE

Left-Hand, .137 Inch Radius, Incl. Ref 21, Not Illustrated

1шт.

21

D127507

BUSHING,22.33mm ID x 32.25mm OD x 25mm L

1шт.

22

D150155

PIN,22.2mm OD x 89mm L

4шт.

23

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

4шт.

24

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

8шт.

25

492-11038

LOCK WASHER,3/8"

8шт.

26

425-106

NUT,3/8"-16, Cl 5

8шт.

27

D57486

PIN

2шт.

28

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

29

425-118

NUT,1/2"-20, G5

2шт.

30

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

2шт.

31

D123865

PIVOT PIN,50.8mm OD x 168.91mm L

2шт.

32

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

4шт.

33

100-21237

SNAP RING,2.375", Int, #237

4шт.

34

D72371

WASHER,3.17mm ID x 60.2mm OD x 4.57mm Thk

Spacer

4шт.

35

238-5139

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

4шт.

36

A28230

NEEDLE BEARING,Needle, 50.78mm ID x 60.34mm OD x 25.4mm W

4шт.

37

D72372

WASHER,50.85mm ID x 69.6mm OD x 0.81mm Thk

Thrust

2шт.

38

D61297

SEAL,50.8mm ID x 60.22mm OD x 6.4mm Thk

2шт.

39

495-11094

WASHER,7/8", SAE

8шт.

40

103-1687

SNAP RING,#87, Ext

8шт.

41

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

1-2шт.

42

399554A1

HOSE ASSY.,1/8" ID x 550mm L, ES-B120 Class 16

Lubrication Line; If Used

1шт.

43

218-1275

NUT,Blkhd, 7/16"-20

1шт.

44

495-11047

WASHER,7/16", SAE

1шт.

45

381442A1

CONNECTION

1шт.

46

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1-2шт.

47

377009A1

BACK PLATE

No Longer Available, Order 377009A2, Ref 47A

1шт.

47a

377009A2

BACK PLATE

If Used

1шт.

48

607-10020

BOLT,Hex, M10 x 20mm, Cl 10.9

Replaces 627-10020 Non-Locking Bolt Used On Some Models

2шт.

49

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

If Used

2шт.

50

800-44050

SNAP RING,M50, Ext

If Used

2шт.

51

218-5478

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

Tee, If Used

1шт.

52

447737A1

HOSE ASSY.,1/8" ID x 210mm L, ES-B120 Class 16

Remote Lube; If Used

1шт.

53

381386A1

HOSE ASSY.,1/8" ID x 500mm L, ES-B120 Class 16

Remote Lube; If Used

1шт.

D103626

PACKAGE

King Pin, Incl. Ref 27, 30 - 38

1шт.
