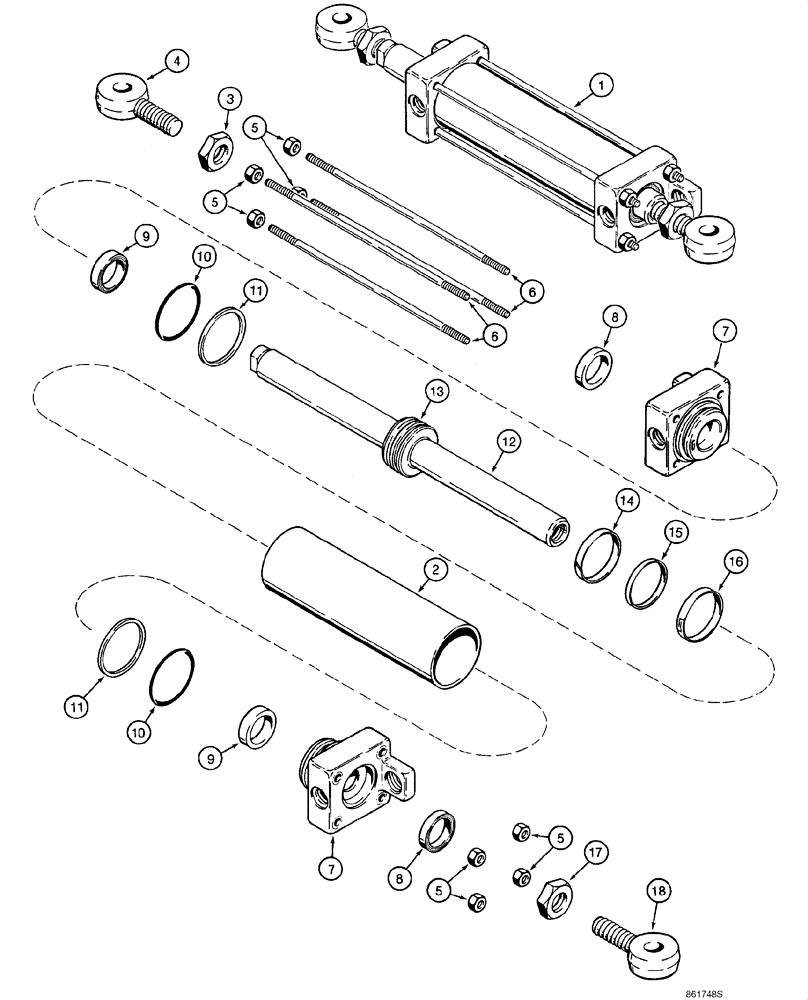

Запчасти Case 590SM (05-04) - CYLINDER ASSY - STEERING (D148413 / 441647A1 FRONT AXLE) (IF USED) (05) - STEERING

1

1986518C2

STEERING CYLINDER

70 ID x 170 strk, Incl. Ref 1 - 18

1шт.

2

G106808

TUBE,69.85 mm ID x 79.76 mm OD x 233.60 mm L

Tube

1шт.

3

129-369

JAM NUT,Jam, 7/8"-14, G5

1шт.

4

1542550C1

BALL JOINT

Eye, Left-Hand Thread

1шт.

5

425-106

NUT,3/8"-16, Cl 5

8шт.

6

G106817

TIE-ROD

TIE ROD 338 mm (13-5/16 in)

4шт.

7

1986520C1

CYLINDER END CAP

Gland

2шт.

8

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

Wiper

1шт.

9

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

1шт.

10

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

11

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

Backup

1шт.

G107721

ROD ASSY.

Piston, 38 mm (1-1/2 in) dia; Incl. Ref 12, 13

1шт.

12

NSS

NOT SOLD SEPARAT

Piston Rod

1шт.

13

NSS

NOT SOLD SEPARAT

Piston

1шт.

14

G105187

RING

Wear

1шт.

15

G104439

RING

1шт.

16

G104454

SEALING RING,Locking, 65.89mm ID x 71.02mm OD x 6.96mm Thk

1шт.

17

425-1514

JAM NUT,Jam, 7/8"-14, G5

7/8 NF

1шт.

18

1542549C1

BALL JOINT

Eye, Right-Hand Thread

1шт.

G110045

KIT

Seal, Incl. Ref 8 - 11, 14 - 16

1шт.
