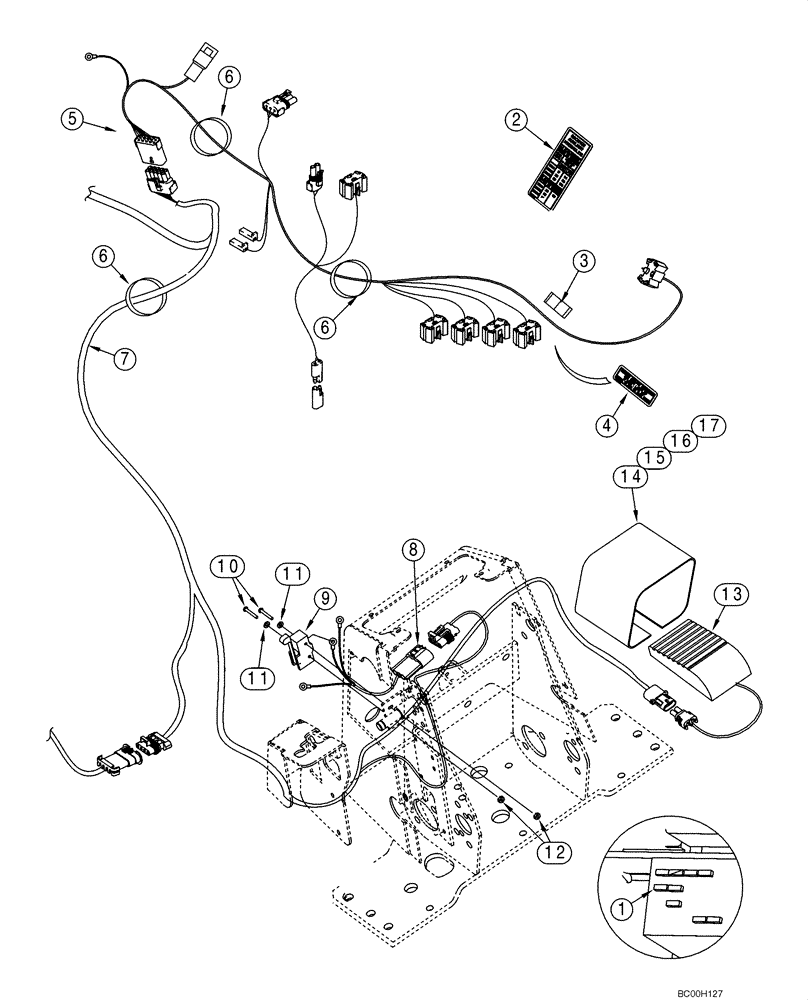

Запчасти Case 590SM (04-20) - ELECTRICAL - BACKHOE AUXILIARY HYDRAULIC (04) - ELECTRICAL SYSTEMS

1

121413A1

FUSE,15A, Mini, Blue

1шт.

2

284480A1

DECAL

Backhoe Auxiliary Hydraulics; Hi Flow/Low Flow

1шт.

3

284058A1

SWITCH

Backhoe Auxiliary Hydraulics

1шт.

4

284627A1

DECAL

Backhoe Auxiliary Hydraulics; Low Flow - Light On/Hi Flow - Light Off

1шт.

5

390518A3

HARNESS

Side Console Options; Attaches To Side Console Harness and Chassis Options Harness

1шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

4шт.

7

390520A2

HARNESS

Chassis Options

1шт.

8

298681A1

HARNESS

Detent Lever

1шт.

9

D137363

SWITCH

Contact; Limit Switch

1шт.

10

440-10616

SCREW,Cross Pan Hd, #6-32 x 1"

2шт.

11

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

(4.3 x 9 x 0.8 mm)

2шт.

12

193-1003

NUT,Keps, w/LW,#6-32

External Tooth

2шт.

13

137219A1

SWITCH

Foot

1шт.

14

300030A1

COVER

1шт.

15

843-1516

SCREW,Flat , M5 x 16mm, Cl 4.8

M5 x 16

2шт.

16

892-11005

LOCK WASHER,M5

2шт.

17

824-1405

NUT,M5, Cl 5

2шт.
