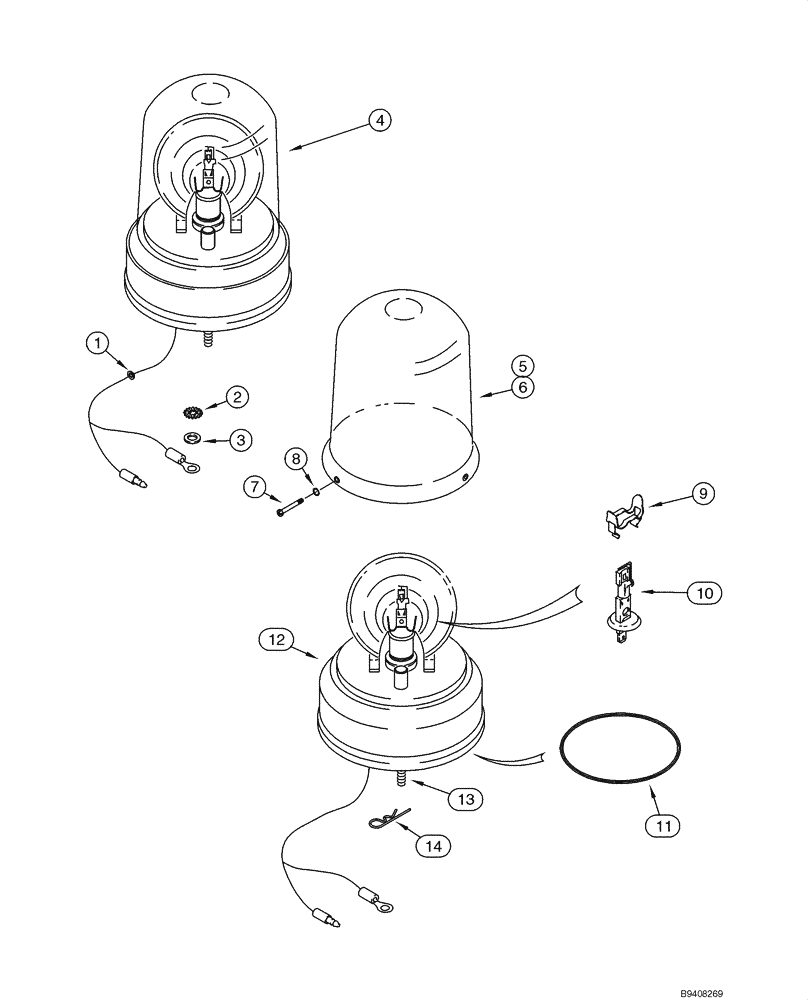

Запчасти Case 590SM (04-18) - BEACON, ROTATING (CAB OR CANOPY MODELS) (04) - ELECTRICAL SYSTEMS

1

A23870

GROMMET

1шт.

2

493-11026

LOCK WASHER,Ext-Int Tooth, 1/4"

Ground

1шт.

3

495-21031

WASHER,1/4"

1шт.

4

108366A1

BEACON

Incl. Ref 5 - 14

1шт.

5

A187542

LENS

Amber; If Used

1шт.

6

127158A1

LENS

Blue; If Used

1шт.

7

168-71

DRIVE SCREW,Type U, Rnd Hd, #8 x 1/2"

3шт.

8

238-5005

O-RING,0.094" ID x 0.062" Width

3шт.

9

101531A1

CLIP

1шт.

10

3125705R1

BULB

1шт.

11

A187575

O-RING

Drive Motor

1шт.

12

NSS

NOT SOLD SEPARAT

Base; With Drive Motor

1шт.

13

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

3шт.

14

136-54

PIN

3шт.

15

386851A1

BEACON SWITCH

Rotating Beacon; Not Illustrated

1шт.

16

121412A1

FUSE,10A, Mini, Red

Not Illustrated

1шт.
