Запчасти Case 590SM (04-15) - ELECTRICAL - LAMPS, ROPS CAB (04) - ELECTRICAL SYSTEMS

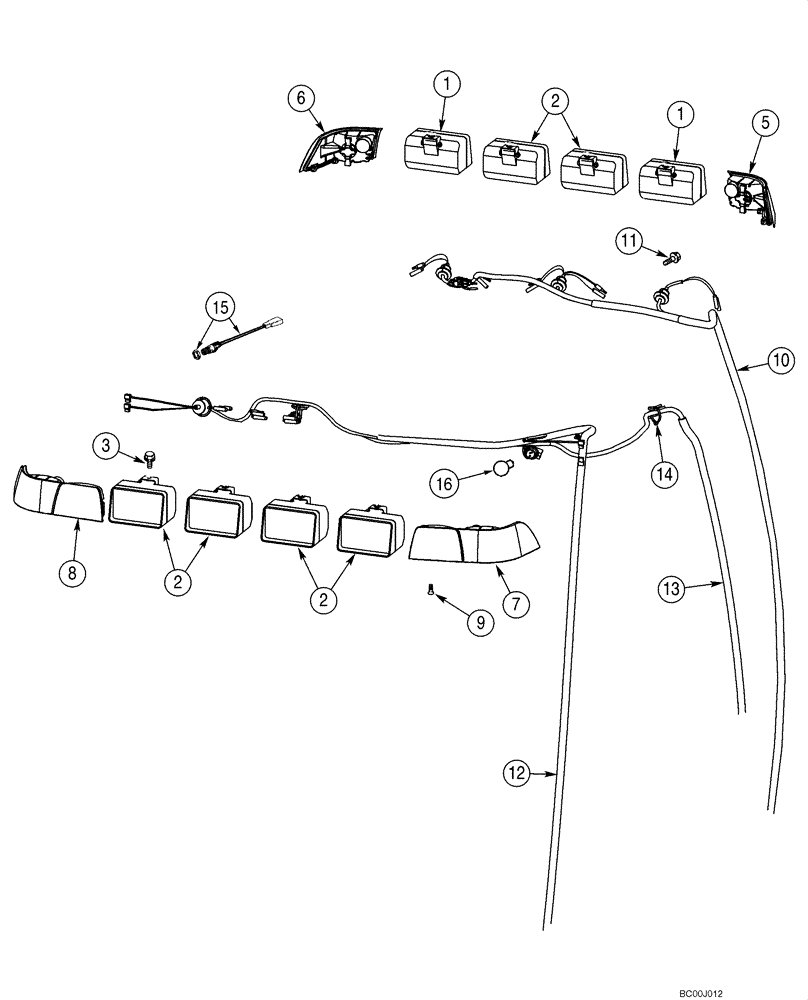

Схема запчастей Case 590SM - (04-15) - ELECTRICAL - LAMPS, ROPS CAB (04) - ELECTRICAL SYSTEMS
3
2
1
16
1
14
15
2
6
12
5
13
10
7
8
9
11
2

Артикул

Название

Примечание

Количество

1

398846A2

LIGHT ASSY.

Front Driving; Incl. 1312210C2, 404996A1

2шт.

1

1312210C2

BULB,Halogen H3, 12V, 55W

1шт.

1

404996A1

Lens

1шт.

2

398847A2

LIGHT ASSY.

Front and Rear Flood and Work Lamps; Incl. 1312210C2, 276498A1

6шт.

2

1312210C2

BULB,Halogen H3, 12V, 55W

1шт.

2

276498A1

LENS

With Hardened Glass; Replaces 1964801C1 Non-Hardened Lens Used In Production

1шт.

3

128312A1

FLANGE BOLT,Hvy Hex, M10 x 1.5 x 15mm, Gr 8.8

8шт.

5

279224A1

WARNING LIGHT

Amber; Right Front Corner; Includes 87517414 Bulb Holder; Lens NSS

1шт.

6

279223A1

WARNING LIGHT

Amber; Left Front Corner; Incl. 87517414 Bulb Holder; Lens NSS

1шт.

7

357540A1

TAIL LAMP

Amber and Red; Right Rear Corner

1шт.

7

87415023

LIGHT ASSY.,12V, Amber/Red

Amber and Red; Right Rear Corner

1шт.

7

87517414

LAMP SOCKET

Bulb Holder - 2 Tab

1шт.

7

9847313

BULB,#894, 12V, 37.5W

Brake Light Bulb W/ 3 Tab Holder

1шт.

8

357541A1

TAIL LAMP

Amber and Red; Left Rear Corner

1шт.

8

87415024

TAIL LAMP,12V, Amber/Red

Amber and Red; Left Rear Corner

1шт.

8

87517414

LAMP SOCKET

Bulb Holder - 2 Tab

1шт.

8

9847313

BULB,#894, 12V, 37.5W

Brake Light Bulb W/ 3 Tab Holder

1шт.

9

84270430

SCREW,Torx, Truss HD, M6 x 1 x 20mm

Replaces 394863A1

10шт.

10

404617A1

WIRE HARNESS

Front

1шт.

11

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

12

398380A3

HARNESS

Rear

1шт.

13

396018A2

HARNESS

B-Post, Dome Lamp, Radio, Rear Wiper

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

5шт.

15

279265A2

SWITCH

Dome Lamp

1шт.

16

279916A1

BULB

Wedge Base, Used for Ref 7 & 8

2шт.

Выбрано товаров: 25
