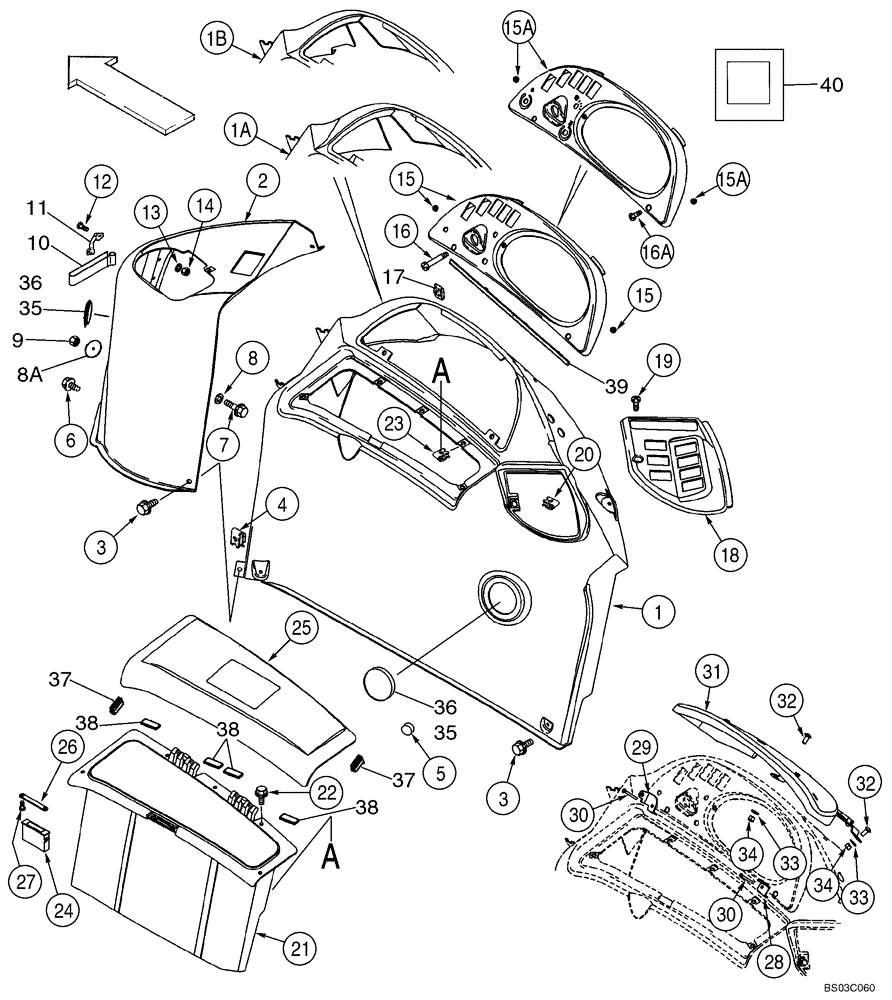

Запчасти Case 590SM (04-12) - INSTRUMENT PANEL, SIDE - COVERS, RIGHT HAND SIDE (04) - ELECTRICAL SYSTEMS

1

360250A2

CONSOLE

Canopy Models

1шт.

1a

355198A2

CONSOLE

Cab; Single Door

1шт.

1b

372167A3

CONSOLE

Cab; Two Door

1шт.

2

355197A2

CONSOLE

Loader Control

1шт.

3

87310098

BOLT,M6 x 20 Full SST BLO

M6 x 20

6шт.

4

833-40406

NUT,M6, U

5шт.

5

L60224

BUMPER

Rubber

1шт.

6

555-10

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

M6 x 16

1шт.

7

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

1шт.

8

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

2шт.

8a

407660A1

WASHER,6.96mm ID x 50mm OD x 1.5mm Thk

7 mm ID x 50 mm OD

1шт.

9

832-10406

NUT,M6 x 1, Cl 8

1шт.

10

184726A1

FIXING STRIP

Velcro; Fire Extinguisher Retaining Strap

1шт.

11

182594A1

HANDLE

Velcro Retainer

2шт.

12

842-1416

SCREW,M4 x 16mm, Cl 4.8

M4 x 16; 4.8; Replaces 842-1425 Screw Used On Some Models

4шт.

13

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

(4.3 x 9 x 0.8 mm)

4шт.

14

832-10404

NUT,M4 x 0.7, Cl 8.8

4шт.

15

391818A2

BEZEL

Instrument Cluster Mounting; Canopy Models; Includes 390258A1; Replaces 391818A2

1шт.

390258A1

INSERT

No. 10; Threaded Insert

2шт.

15a

390255A2

BEZEL

Instrument Cluster Mounting; Cab Models; Includes 390258A1; Replaces 390255A1

1шт.

390258A1

INSERT

No. 10; Threaded Insert

2шт.

16

140-120

SCREW,Cross Pan Hd, #10 - 24 x 2 1/4"

Canopy Models

2шт.

16a

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

Cab Models

2шт.

17

131-619

SPRING NUT,J, #10 - 24, 0.031" Thk

Cab or Canopy

2шт.

18

353068A2

BEZEL

Rear Switches

1шт.

19

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

1шт.

20

131-619

SPRING NUT,J, #10 - 24, 0.031" Thk

1шт.

21

366632A2

BOX, TOOL

Right-Hand

1шт.

22

87310098

BOLT,M6 x 20 Full SST BLO

M6 x 20

5шт.

23

833-40406

NUT,M6, U

5шт.

24

D127335

CATCH

Magnetic

1шт.

25

366633A3

LID

Storage Box

1шт.

26

375112A1

STRIKER PLATE

1шт.

27

440-1066

SCREW,Cross Pan Hd, #6-32 x 3/8"

No. 6 x 3/8

2шт.

Anti-Vandalism, Canopy Models

1шт.

28

386369A2

BRACKET

1шт.

29

386368A2

BRACKET

1шт.

30

140-120

SCREW,Cross Pan Hd, #10 - 24 x 2 1/4"

2шт.

31

385614A3

COVER ASSY

Instrument Cluster; Includes 386502A1, F22426

1шт.

386502A1

BUMPER

2шт.

F22426

STOP

3шт.

32

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

2шт.

34

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

35

1302758C1

PLUG

3 in

2шт.

36

413054A1

SELF-TAP SCREW,Cross Pan Hd, #6 - 20 x 1/2"

1/2 in

4шт.

37

430471A1

SEAL,40mm L

40 mm; Bulb; Bumper, Storage Lid; Replaces 414094A1

2шт.

38

414092A1

SEALING STRIP,100mm

50 mm; Adhesive Back; Storage Box

4шт.

39

414071A1

SEALING STRIP,480mm

480 mm; Adhesive Back

1шт.

40

412510A1

SEALING STRIP

25 x 25 x 3 mm; Adhesive Back; Console To Fender

1шт.

33

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.
