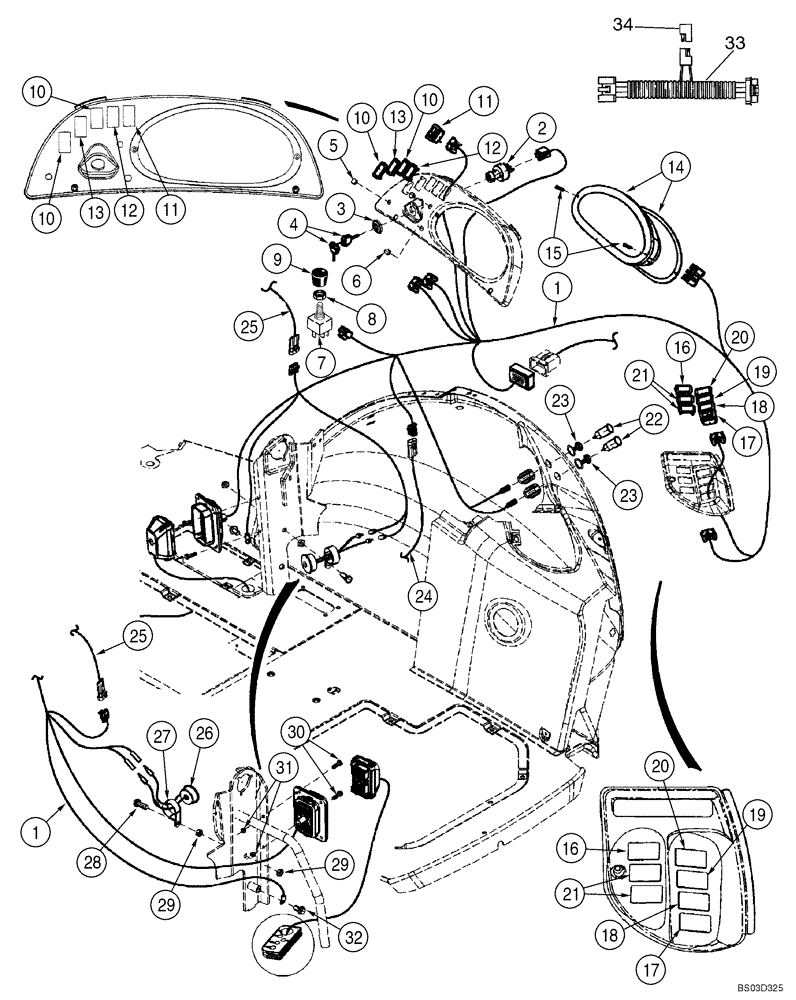

Запчасти Case 590SM (04-10) - HARNESS, SIDE CONSOLE - SWITCHES (04) - ELECTRICAL SYSTEMS

1

396017A1

HARNESS

Side Console

1шт.

282775A1

IGNITION SWITCH

Incl. Ref 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Switch; Without Keys

1шт.

3

NSS

NOT SOLD SEPARAT

Nut

1шт.

4

1964831C2

IGNITION KEY

Padded

1шт.

5

397569A1

PLUG

7/16 in; Dome; If Used; For Air Conditioning Switch and Knob, See Figure 09-65

2шт.

6

397570A1

PLUG

1/2 in; Dome; If Used; For Heater Switch and Knob, See Figure 09-64

1шт.

7

245258A1

ROTARY SWITCH

Blower; If Used

1шт.

121415A1

FUSE,25A, Mini, Clear

Blower and Wiper

1шт.

8

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

1шт.

9

400379A1

KNOB,23mm

1шт.

10

86000535

PLUG,1.427" x .62", Plastic

If Used

1-4шт.

11

133715A1

LIGHT SWITCH

Rear Work Lamps

1шт.

12

235002A1

ROCKER SWITCH

Ride Control; If Used

1шт.

13

133716A1

ROCKER SWITCH

Four Wheel Drive; Models Without Powershift Transmission; If Used

1шт.

13

239408A1

SWITCH

Four Wheel Drive; Models With Powershift Transmission; If Used

1шт.

121412A1

FUSE,10A, Mini, Red

1шт.

14

395943A1

CLUSTER, INSTR.

CLUSTER, INSTRUMENT See Figure 04-13

1шт.

87339012R

REMAN-INSTR CLUSTER

590SM; Reman for New P/N 395943A1

1шт.

87339012C

CORE-CLUSTER, INSTR

Return Number

1шт.

15

140-119

SCREW,Cross Pan Hd, #10 - 24 x 1 1/4"

2шт.

16

86000535

PLUG,1.427" x .62", Plastic

If Used

1-6шт.

17

386852A2

SWITCH

Horn

1шт.

18

386788A1

WINDSHIELD WIPER SWI

Rear Window Washer; If Used

1шт.

19

386786A1

ROCKER SWITCH

Rear Wiper; If Used

1шт.

20

284058A1

SWITCH

Backhoe Auxiliary Hydraulics Hi/Low Flow; If Used

1шт.

21

386789A2

SWITCH

Backhoe Quick Coupler and Hydraulic Backhoe Bucket Coupler; If Used

2шт.

22

283779A1

POWER SOCKET,12V

2шт.

23

283781A1

CAP,Polyester Elastomer

Power Plug Outlet

2шт.

L71879

DIODE ELEMENT,400V, 3A

1шт.

25

NSS

NOT SOLD SEPARAT

Harness; Loader Control Lever; Included In Loader Control Lever Handle

1шт.

26

D137468

BUZZER

Engine Water Temperature, Engine Oil Pressure and Parking Brake

1шт.

27

515-23444

CLAMP,1 3/4", Insul, 3/8" Bolt

1-3/4

1шт.

28

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

29

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

30

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

2шт.

31

832-10406

NUT,M6 x 1, Cl 8

2шт.

32

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

1шт.

390520A2

HARNESS

Chassis Options; Chassis Options Include Ride Control Solenoids, Hand Held Auxiliary Hydraulics Solenoid; Plus Air Conditioning, Air Conditioning High Pressure Switch, Front and Rear Windshield Washer Pumps and Backhoe Auxiliary Hydraulic Foot Switch

1шт.

L71879

DIODE ELEMENT,400V, 3A

4шт.

87422908

SERVICE KIT

"No Stop" Issue; Includes Instructions; If Used; Incl. Ref 33, 34

1шт.

33

87418406

WIRE HARNESS

Jumper; Incl. Ref 34

1шт.

34

L71879

DIODE ELEMENT,400V, 3A

1шт.
