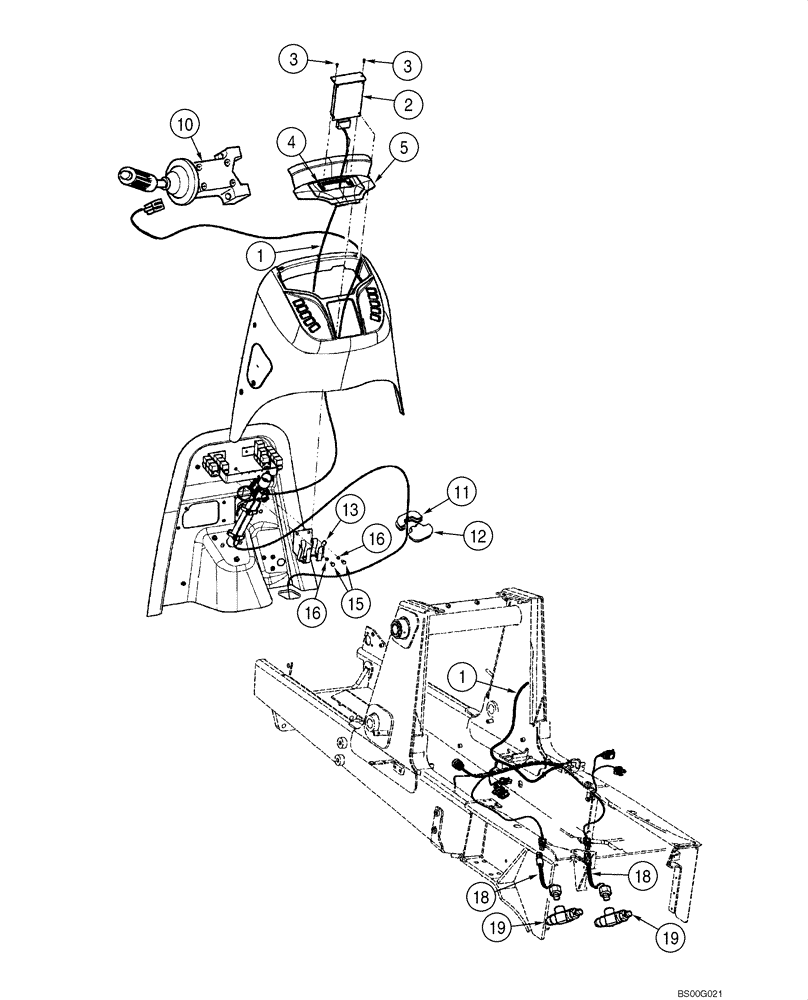

Запчасти Case 590SM (04-09) - ELECTRICAL - TRANSMISSION, POWERSHIFT (04) - ELECTRICAL SYSTEMS

1

392882A4

HARNESS

Powershift Transmission

1шт.

2

87403291

CONTROL

Transmission, APC73; Replaces 400375A1, 432253A1

1шт.

3

140-107

SCREW,Pan HD, #10 - 24 x 3/4"

2шт.

4

176857A1

SPRING NUT

No. 10, J-Type

2шт.

5

363227A2

COVER

Relay Access

1шт.

278316A2

CLIP

Relay Access Cover

2шт.

10

231520A2

SWITCH

Shuttle Shift; Transmission; Forward/Neutral/Reverse; See Figure 04-07

1шт.

11

397443A2

SEAL,110mm L

Replaces 397443A1; Shift Lever Hole Plug

1шт.

12

397493A2

SEAL,106mm L

Replaces 397493A1; Shift Lever Hole Plug

1шт.

13

400376A1

ELEC SUPPORT PLATE

1шт.

15

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

16

892-11008

LOCK WASHER,8mm ID

2шт.

18

D138955

SWITCH

Pressure; Stop Lamp

2шт.

19

222889A1

FITTING

At Rear Axle Brakes; See Figure 07-04

2шт.
