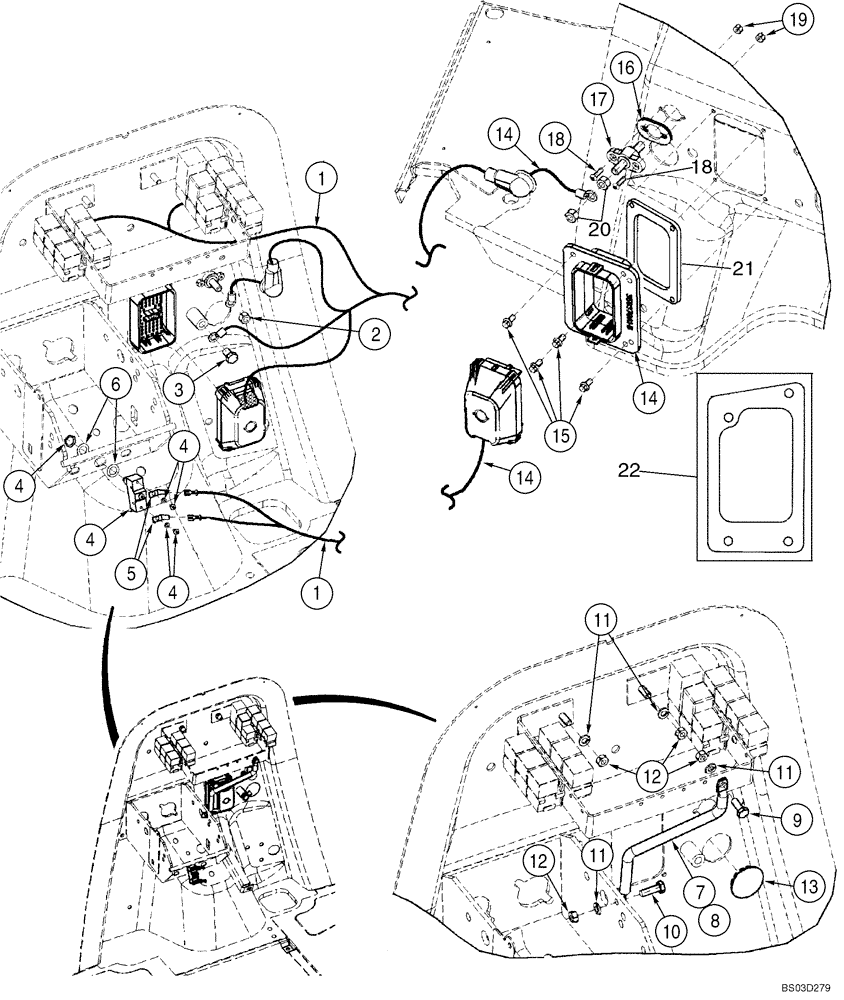

Запчасти Case 590SM (04-08) - HARNESS, FRONT CONSOLE - MOUNTING (04) - ELECTRICAL SYSTEMS

1

396015A1

HARNESS

Front Console; Mounts To Front Firewall

1шт.

2

425-106

NUT,3/8"-16, Cl 5

1шт.

3

128312A1

FLANGE BOLT,Hvy Hex, M10 x 1.5 x 15mm, Gr 8.8

M10 x 15; Mounts To Front Firewall

1шт.

4

D148108

SWITCH

Brake Lamp; Includes Hardware

1шт.

5

A187990

TERMINAL CONNECTOR,Tin, 0.254 - 1.520mm

Male

2шт.

6

495-81153

WASHER,.469" x 3/4" x .030"

2шт.

7

362930A2

BRACKET

1шт.

8

392353A1

CONDUIT

1шт.

9

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

10

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

11

892-11008

LOCK WASHER,8mm ID

4шт.

12

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

13

397876A1

PLUG

1-5/8 in; Button

1шт.

14

396014A1

HARNESS

Engine; Main Chassis; Mounts Behind Front Firewall; Includes L71879

1шт.

L71879

DIODE ELEMENT,400V, 3A

3шт.

15

781-24613

SELF-TAP SCREW,Hex Flg, M6 x 1 x 13mm

M6 x 13

4шт.

16

357966A1

GASKET,50mm L x 32mm L

1шт.

17

357278A1

ISOLATOR

Positive Battery

1шт.

18

490-11012

SCREW,Cross Pan Hd, #10-32 x 3/4"

2шт.

19

231-24409

NUT,#10-32

No. 10

2шт.

20

425-106

NUT,3/8"-16, Cl 5

2шт.

21

409370A1

FOAM INSULATION

1шт.

22

414174A1

GASKET,128mm L x 94mm L x 6mm L

1шт.
