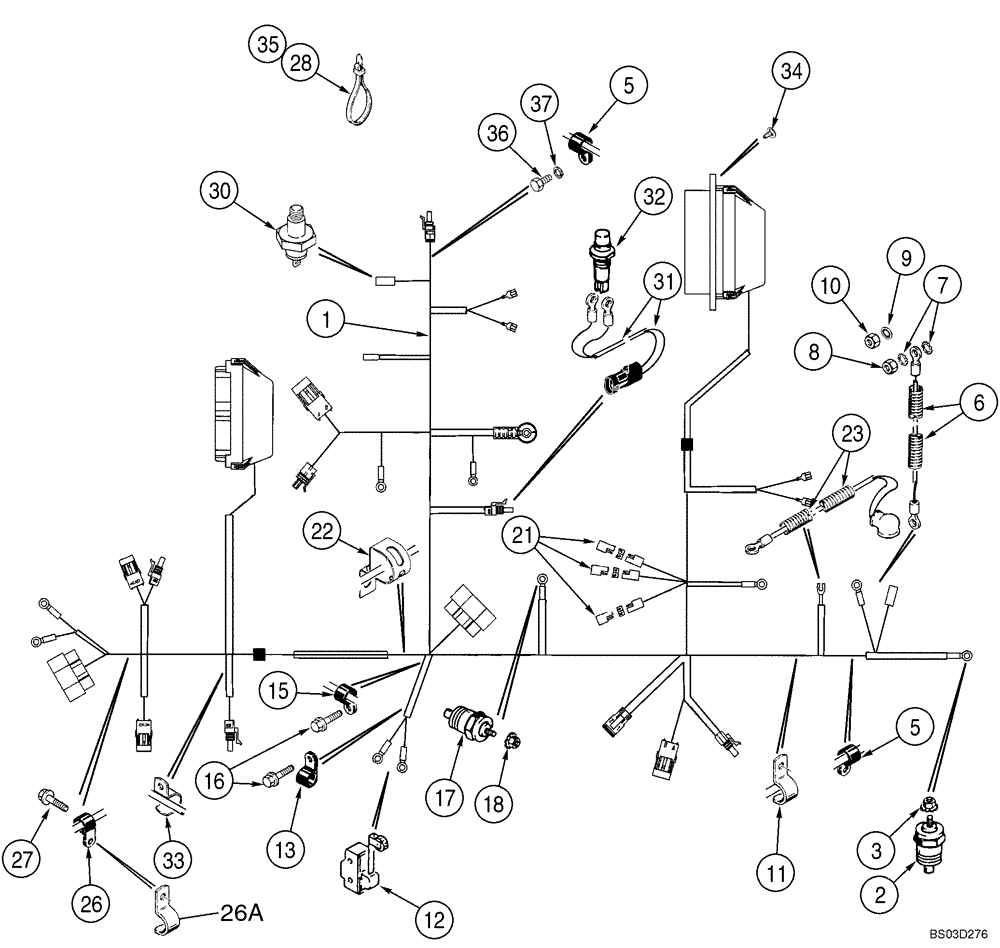

Запчасти Case 590SM (04-04) - HARNESS, ENGINE - MOUNTING AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

396014A1

HARNESS

Engine

1шт.

2

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

Engine Water Coolant Temperature

1шт.

3

193-1000

NUT,Keps, w/LW,#10-32

No. 10 NF; With External Tooth Lock Washer

1шт.

5

515-2379

CLAMP,5/16", Insul, 3/8" Bolt

(7.9 mm); Use Existing Hardware

2шт.

6

D143830

CABLE

, Serial Range: Alternator-Starter

1шт.

7

493-21033

LOCK WASHER,Int Tooth, 5/16"

2шт.

8

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

9

493-21020

LOCK WASHER,Int Tooth, #10

(3/16")

1шт.

10

824-1405

NUT,M5, Cl 5

1шт.

11

D147383

CLIP,5/8" J

Use Existing Hardware

1шт.

12

D137363

SWITCH

Return To Dig; For Mounting, See Figure 09-04

1шт.

13

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

At Return To Dig Limit Switch

1шт.

15

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

16

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

17

A166057

TEMPERATURE SENDER,1/2" - 14 NPTF

Transmission Temperature

1шт.

18

193-1000

NUT,Keps, w/LW,#10-32

No. 10 NF; With External Tooth Lock Washer

1шт.

21

L71879

DIODE ELEMENT,400V, 3A

3шт.

22

192196A2

CLAMP

Attaches to Backup Alarm Wire

1шт.

23

381262A1

ELECTRICAL WIRE

WIRE Power

1шт.

26

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

For Brake Cable Bracket, See Figure 07-06; If Used

1шт.

26a

D147383

CLIP,5/8" J

For Brake Cable Bracket, See Figure 07-06; If Used

1шт.

27

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

1шт.

28

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

32шт.

30

277016A1

PRESSURE SWITCH

Oil, M10, Incl. Ref 30A

1шт.

30a

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

Not Illustrated

1шт.

31

123809A2

WIRE HARNESS

Clutch Cutout; Transmission Gear Shift Lever; Incl Ref 31A, 31B

1шт.

31a

246526A1

CONNECTOR, ELEC

CONNECTOR Not Illustrated

1шт.

31b

NSS

NOT SOLD SEPARAT

Eye; Not Illustrated

2шт.

32

123097A1

SWITCH

Push Button; Clutch Cutout; Transmission Gear Shift Lever; For Lever and Knob, See Figure 06-12

1шт.

33

D147383

CLIP,5/8" J

Use Existing Hardware

1шт.

34

781-24613

SELF-TAP SCREW,Hex Flg, M6 x 1 x 13mm

M6 x 13

4шт.

35

305342A1

STRAP,450mm L

450 mm (18 in); Air Filter Restriction Branch to Air Filter Inlet Tube

1шт.

36

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

If Used

1шт.

36

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

Models with Antennuator Hose

1шт.

37

892-11008

LOCK WASHER,8mm ID

1шт.
