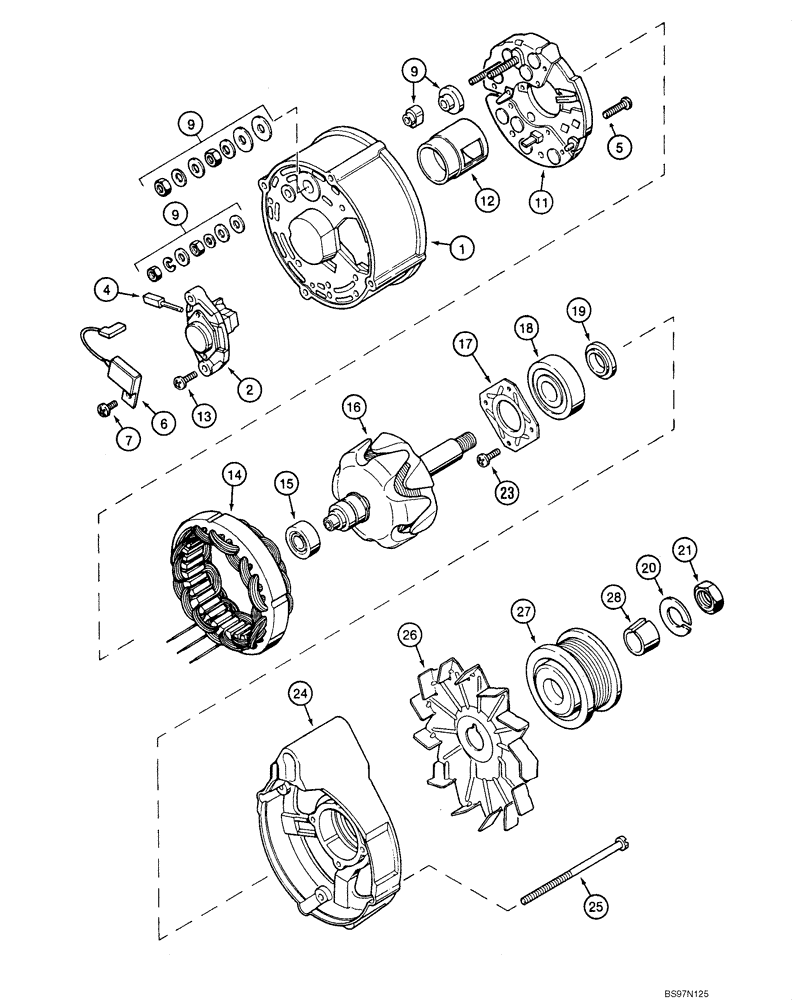

Запчасти Case 590SM (04-02) - ALTERNATOR (04) - ELECTRICAL SYSTEMS

A187873

ALTERNATOR,12V, 65A

12V, 65 amp; Incl. Ref 1 - 25

1шт.

AR187873

REMAN-ALTERNATOR

Reman for New PN A187873

1шт.

AC187873

CORE-ALTERNATOR

Return Number

1шт.

A187873GV

ALTERNATOR

Value, 12V, 65A

1шт.

1

A187903

COVER

Collector Ring End

1шт.

2

A187906

VOLTAGE REGULATOR

1шт.

4

1964968C1

COMMUTATOR BRUSH

Set Of Two

1шт.

5

1530431C1

BOLT,Hex, 1 1/4" - 7 x 7", Gr 8, W/ Wshr

With Washer

2шт.

6

3079134R1

CAPACITOR

1шт.

7

840-1510

SCREW,Pan, M5 x 10mm, Cl 4.8

1шт.

9

A187904

MULTIPOLE CONNECTOR

Hardware

1шт.

11

360330A1

RECTIFIER

1шт.

12

A187899

INNER SHIELD

1шт.

13

A187504

SCREW

2шт.

14

1964966C1

STATOR

1шт.

15

A186186

BALL BEARING,12mm ID x 32mm OD x 10mm W

1шт.

16

1964964C1

ROTOR

1шт.

17

A187901

FIXING PLATE

1шт.

18

A186183

BALL BEARING,17 mm ID x 47 mm OD x 14 mm

1шт.

3078897R1

SET OF PARTS

Incl. Ref 19 - 23

1шт.

19

NSS

NOT SOLD SEPARAT

Ring

1шт.

20

NSS

NOT SOLD SEPARAT

Washer

1шт.

21

NSS

NOT SOLD SEPARAT

Nut

1шт.

22

NSS

NOT SOLD SEPARAT

Key; Not Used In This Application

1шт.

23

NSS

NOT SOLD SEPARAT

Screw

4шт.

24

A186182

HOUSING

Drive End

1шт.

25

A186193

BOLT,Pan, Cross Recess Phillips, M5 x 110mm

4шт.

26

221425R1

FAN

Not Included In Assembly; Purchase Separately

1шт.

27

J908560

PULLEY

Not Included In Assembly; Purchase Separately; Ref 28 Retainer Not Required With Replacement Pulley 84538542

1шт.

28

J908563

RETAINER

Not Included In Assembly; Purchase Separately; Not Used With Replacement Pulley 84538542

1шт.
