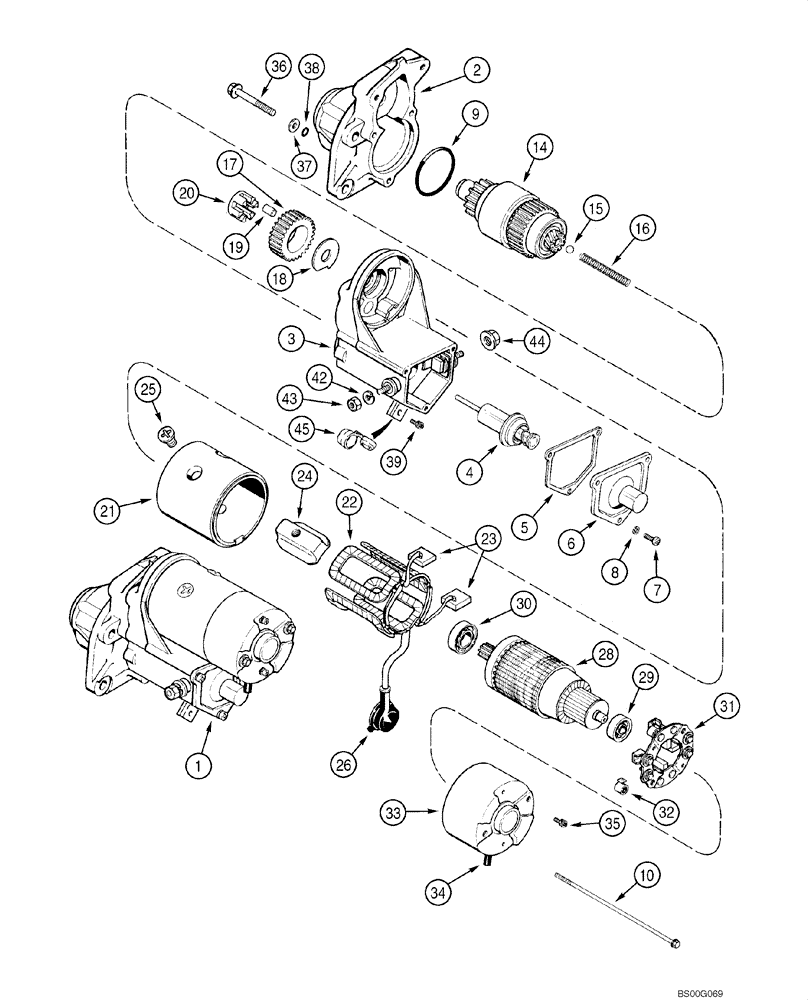

Запчасти Case 590SM (04-01) - STARTER (04) - ELECTRICAL SYSTEMS

1

86982709

STARTER MOTOR,12V, 2.5kW

Incl. Ref 2 - 45, Replaces 1987559C1

1шт.

1

86982709R

REMAN-STARTER,12V, 2.5kW

Reman for New PN 86982709

1шт.

1

86982709C

CORE-STARTER,12V, 2.5kW

Return Number

1шт.

1

87350916

REMAN-STARTER

Remanufactured Starter, North America Only; Parts On This Page Do Not Apply to Remanufactured Assy

1шт.

1

87350918

CORE-STARTER

Return Number, Core, Use This Part Number To Return Core For Credit When Using A Remanufactured Assy

1шт.

2

A46948

HOUSING

Drive End

1шт.

3

104588A1

SOLENOID

Magnetic; Incl. Ref 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

Solenoid

1шт.

5

NSS

NOT SOLD SEPARAT

Seal

1шт.

6

NSS

NOT SOLD SEPARAT

Cover

1шт.

7

NSS

NOT SOLD SEPARAT

Screw

3шт.

8

NSS

NOT SOLD SEPARAT

Washer

3шт.

9

1546500C1

SEAL,2.4mm Thk x 47.2mm ID

1шт.

10

332467A1

BOLT

M6 x 181

2шт.

14

104587A1

CLUTCH

1шт.

15

211-1011

BALL,11/32" Dia

3/4; 24,CRS

1шт.

16

A47232

SPRING

2-13/16

1шт.

17

A47233

GEAR

1шт.

18

141360A1

WASHER

1шт.

19

A47235

ROLLER BEARING

5шт.

20

A47236

RETAINER

1шт.

A47240

HOUSING

With Coil and Brushes; Incl. Ref 21 - 26

1шт.

21

NSS

NOT SOLD SEPARAT

Housing

1шт.

22

NSS

NOT SOLD SEPARAT

Coil

1шт.

23

NSS

NOT SOLD SEPARAT

Brush

2шт.

24

NSS

NOT SOLD SEPARAT

Shoe

4шт.

25

NSS

NOT SOLD SEPARAT

Screw

4шт.

26

NSS

NOT SOLD SEPARAT

Boot

1шт.

28

A47242

ARMATURE

Incl. Ref 29, 30

1шт.

29

452698C1

BALL BEARING,10mm ID x 30mm OD x 9mm W

Commutator End

1шт.

30

A47247

BALL BEARING,17mm ID x 35mm OD x 10mm W

Drive End

1шт.

31

A47239

HOLDER

Includes Two Brushes; Incl. Ref 32

1шт.

32

A47249

SPRING

4шт.

33

401106A1

FRAME

Commutator End

1шт.

34

141355A1

COVER

Rubber; Ventilation

1шт.

35

141361A1

CAPTIVE WASHER SCREW,M5 x 9.40mm

With Washer

2шт.

A47230

BOLT

Incl. Ref 36 - 38

3шт.

36

332475A1

BOLT

1шт.

37

495-81252

WASHER,#12

(Flat, 1/4" x 9/16" x 1/16")

1шт.

38

332476A1

O-RING

1шт.

39

401126A1

SCREW,M5 x 8mm, W/ LW

With Lock Washer

1шт.

42

892-11010

LOCK WASHER,M10

1шт.

43

825-1410

NUT,M10, Cl 8

1шт.

44

332468A1

NUT

M10

1шт.

45

141354A1

RING

1шт.
