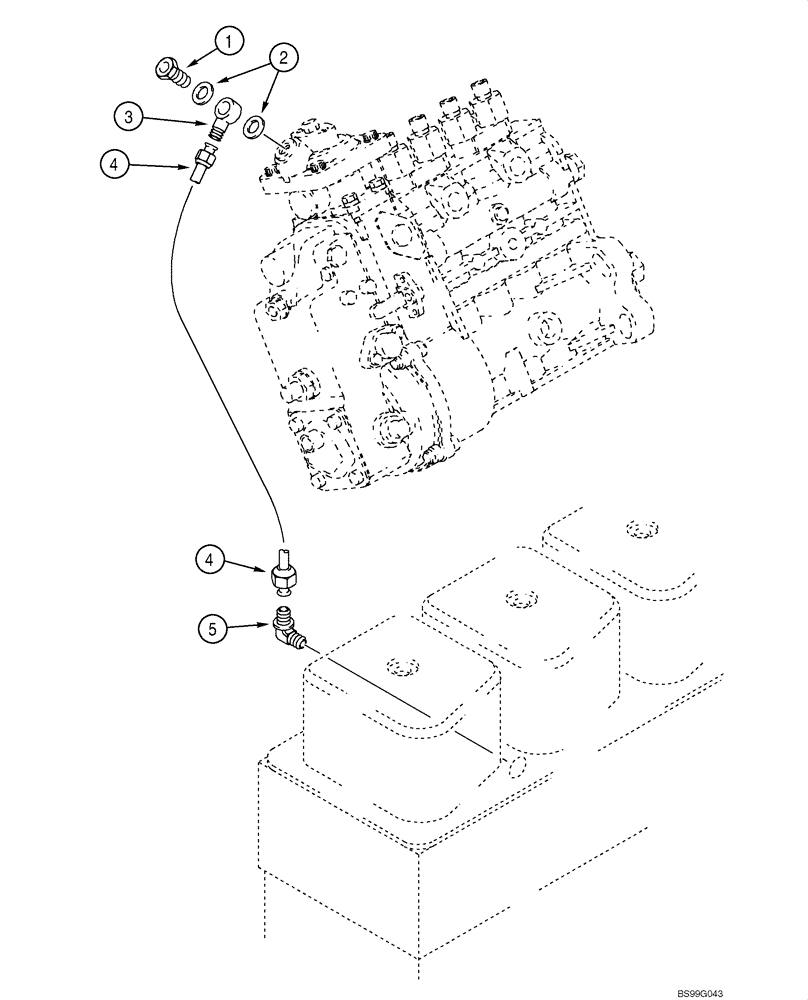

Запчасти Case 590SM (03-06) - ANEROID AND WASTEGATE SYSTEM - 4T-390 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

1

J903035

BANJO BOLT

1шт.

2

87415913

SEALING WASHER,11.71mm ID x 19.3mm OD x 1.27mm Thk

2шт.

3

J990881

CONNECTION

Replaces J919644

1шт.

4

J991517

FUEL TUBE,6.35 mm OD x 220 mm L

220 mm (8-5/8 in); Replaces J934608

1шт.

5

222-41

ELBOW,90 Degree, 7/16"-24 x 1/8 NPT

1шт.

6

221-87

REDUCER,1/2" NPT x 1/8" NPT

Not Illustrated

1шт.

7

86643151

PLUG,Hex Hd, 1/8"-27 NPTF

Not Illustrated

1шт.
