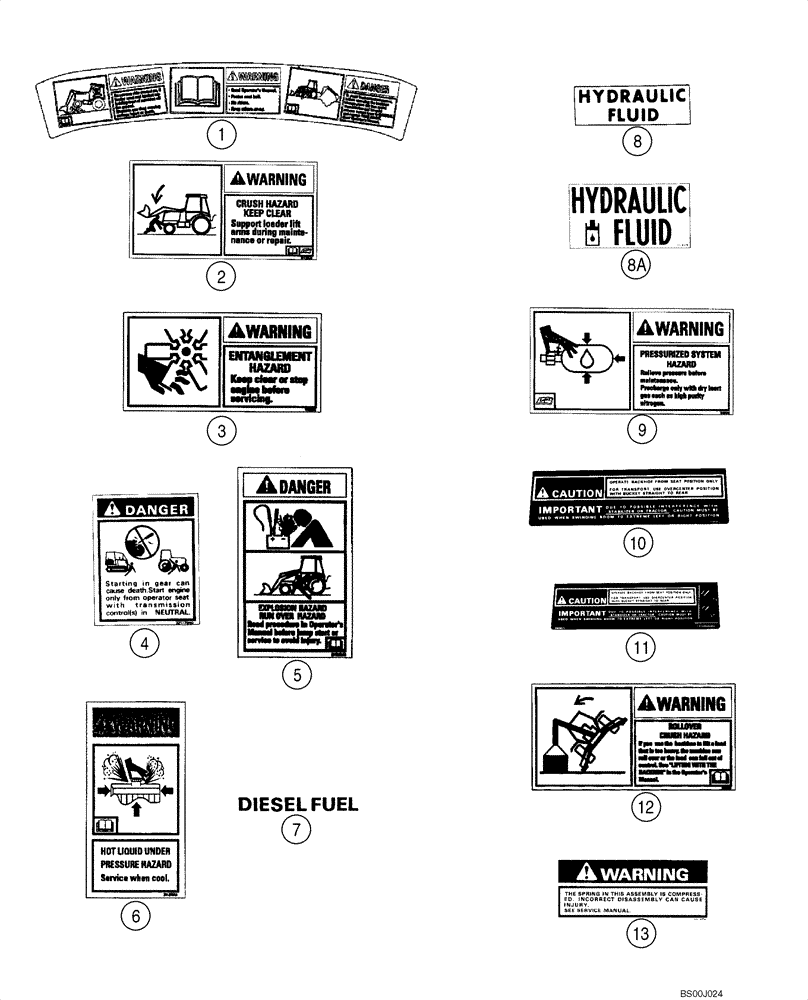

Запчасти Case 590SM (09-79) - DECALS - ENGLISH (09) - CHASSIS/ATTACHMENTS

1

392375A1

WARNING DECAL

Warning/Warning/Danger; Front, With Ride Control; Do Not Turn Ride Control On/Read Operator's Manual/To Avoid Inadvertent Movement

1шт.

2

384265A1

WARNING DECAL

Crush Hazard; Keep Clear; Support Loader Lift Arms During Maintenance

1шт.

3

384267A1

WARNING DECAL

Entanglement Hazard, Fan; Keep Clear or Stop Engine Before Servicing

2шт.

4

321-7040

DANGER DECAL

Starting in gear

1шт.

5

384269A1

DANGER DECAL

Jump Start

2шт.

6

384258A1

DANGER DECAL

Hot Liquid Under Pressure

2шт.

7

321-230

DECAL

Diesel Fuel

1шт.

8

321-229

DECAL

Hydraulic Fluid; Used In Production; For Service, Order 321-6376, English Decal Only

1шт.

8a

321-6376

DECAL

Hydraulic Fluid

1шт.

9

384260A1

WARNING DECAL,168mm x 88mm H

Ride Control Accumulator

1шт.

10

D149826

IMPORTANT DECAL

For All Models With Foot Swing Backhoe Controls and Standard Backhoe Models With Hand Swing

1шт.

11

D149827

IMPORTANT DECAL

Extendahoe Backhoe Models With Hand Swing

1шт.

12

384263A1

DECAL

Rollover Crush Hazard; If You Use The Backhoe To Lift A Load

1шт.

13

321-6774

WARNING DECAL

Seat Spring

1шт.
