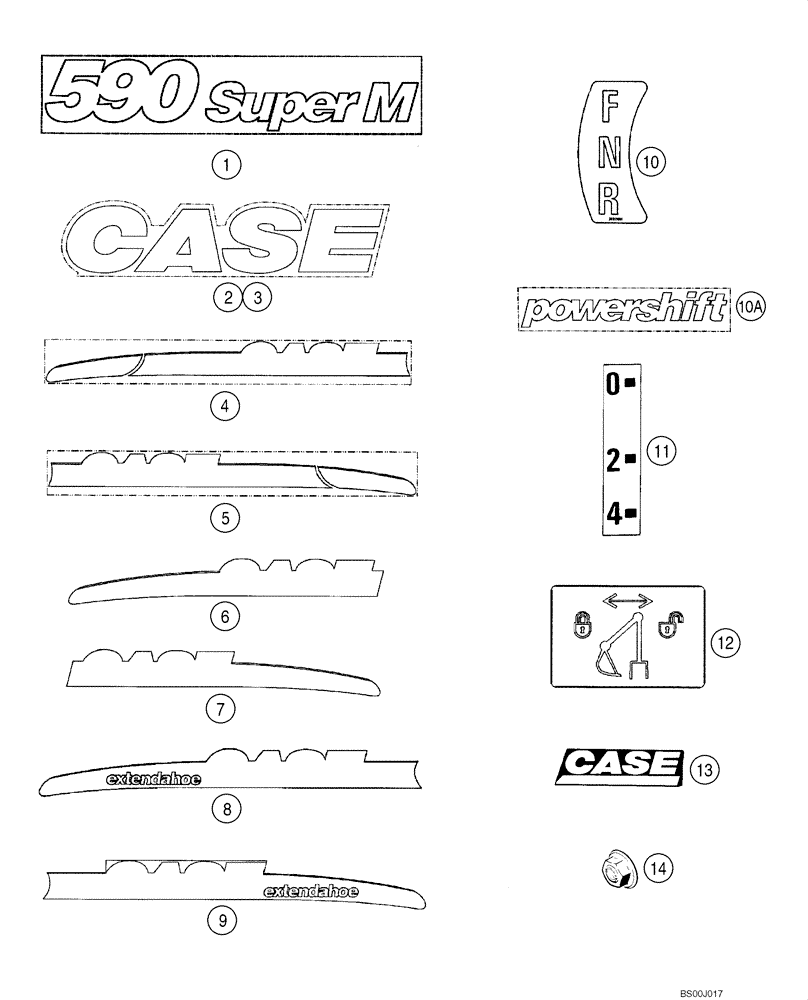

Запчасти Case 590SM (09-73) - DECALS (09) - CHASSIS/ATTACHMENTS

1

401464A1

DECAL

Model Designation

2шт.

2

401457A1

DECAL

525 mm (20-11/16 in); Case Logo; Loader Arm

2шт.

3

401458A1

DECAL

655 mm (25-13/16 in); Case Logo; Backhoe Dipper

2шт.

4

401459A2

DECAL

Case; Loader Arm Pin Stripe; Left-Hand Stripe; Replaces 401459A1

1шт.

5

401460A2

DECAL

Case; Loader Arm Pin Stripe; Right-Hand Stripe; Replaces 401460A1

1шт.

6

407315A1

DECAL

Case; Standard Dipper; Left-Hand Stripe

1шт.

7

407316A1

DECAL

Case; Standard Dipper; Right-Hand Stripe

1шт.

8

373698A2

DECAL

Case; Extendahoe Dipper; Left-Hand Stripe; Replaces 373698A1

1шт.

9

373699A2

DECAL

Case; Extendahoe Dipper; Right-Hand Stripe; Replaces 373699A1

1шт.

10

395910A2

DECAL

FNR (Forward/Neutral/Reverse); Shuttle Shift Lever Control Pattern; Replaces 395910A1

1шт.

10a

373696A1

DECAL

Powershift

2шт.

11

321-1708

DECAL

0-2-4; Clam Bucket Opening Indicator

1шт.

12

399862A1

DECAL

Boom Latch Release

1шт.

13

186989A1

EMBLEM

1шт.

14

131-431

PUSH-ON NUT,Self, Threading, 1/4"

2шт.
