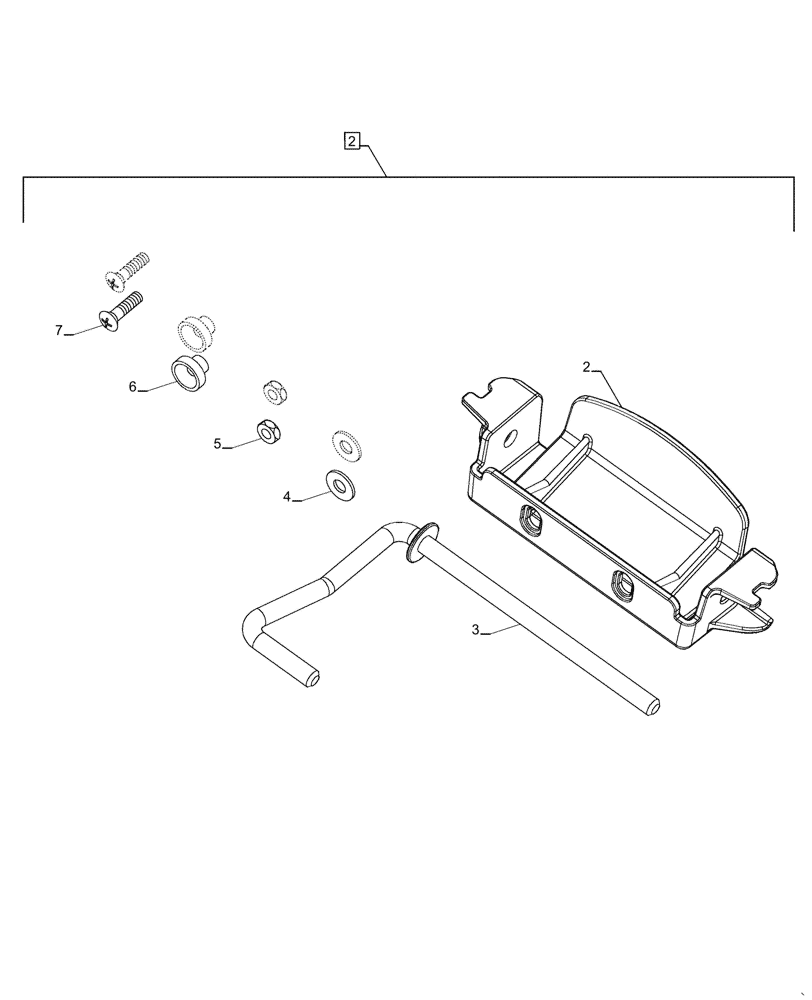

Запчасти Case 590SM (09-71[01]) - KIT WINDOW LATCH AND HARDWARE (09) - CHASSIS/ATTACHMENTS

1

47577603

KIT

Incl 2 - 7

1шт.

2

47832497

HANDLE

1шт.

3

87534372

ROD,7.9mm OD

1шт.

4

195-81023

WASHER,5.94mm ID x 14.28mm OD x 1.25mm Thk

2шт.

5

F45165

SPECIAL NUT,#10-24

2шт.

6

F64198

BUMPER,4.98mm ID x 7.92mm OD x 10.21mm L

2шт.

7

142-103

SCREW,Phil Oval Hd, Csk, #10 - 24 x 3/4"

2шт.
