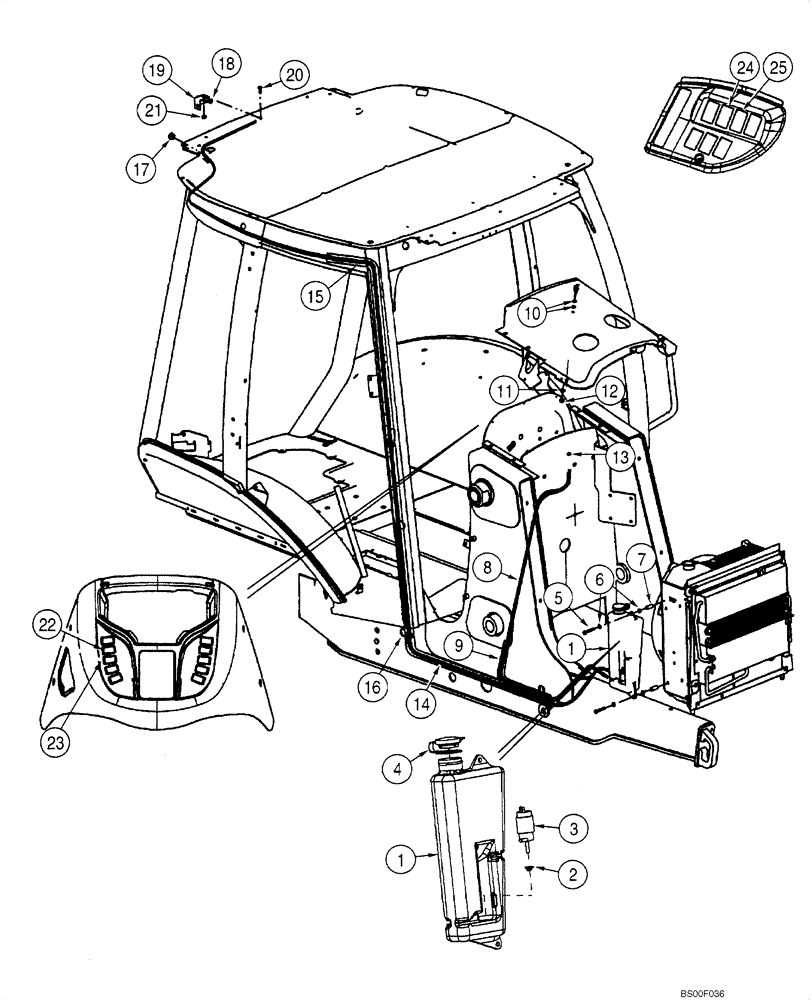

Запчасти Case 590SM (09-59) - CAB - WASHER, WINDSHIELD (09) - CHASSIS/ATTACHMENTS

389423A3

RESERVOIR, WINDSHIEL

Incl. Ref 1 - 4

1шт.

1

386721A4

RESERVOIR

1шт.

2

196830A1

GROMMET

2шт.

3

1964696C2

PUMP

2шт.

4

307130A1

COVER

1шт.

5

806-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 10.9

M8 x 50; 10.9

2шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

7

132215A1

SPACER

2шт.

8

386716A2

HOSE,4.76 mm ID x 1830.00 mm

Front Washer, Cut From 1968141CX, No Longer Used, Order 87412016

1шт.

8

87412016

HOSE

1830 mm (72-3/64 in); Front Washer; Cut From 1968141CX

1шт.

9

386718A2

GUARD

1500 mm (59-1/16 in); Cut From 397155A1; No Longer Used; Order 386718A3

1шт.

9

386718A3

GUARD

1630 mm (64-3/16 in); Cut From 397155A2

1шт.

10

284154A1

NOZZLE,3/8" - 16

Includes a Steel and Rubber Washer Which Are Not Serviced Separately

1шт.

11

492-11038

LOCK WASHER,3/8"

1шт.

12

425-106

NUT,3/8"-16, Cl 5

1шт.

13

305578A1

CLAMP,7.65mm - 8.76mm

If Used

1шт.

14

386717A2

HOSE,4.76 mm ID x 4970.00 mm

Rear Washer, Cut From 397154A1, No Longer Used, Order 87412017

1шт.

14

87412017

5325 mm (209-11/16 in); Rear Washer; Cut From 1968141C1

1шт.

15

386719A2

GUARD

4000 mm (157-1/2 in); Cut From 397155A1; No Longer Used; Order 408965A1 and 408966A1

1шт.

15

408965A1

GUARD

550 mm (21-11/16 in); Rear Washer Hose, Upper; Cut From 397155A2

1шт.

15

408966A1

GUARD

2200 mm (86-5/8 in); Rear Washer Hose, Lower; Cut From 397155A2

1шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

17

386722A1

GROMMET

1шт.

18

E43769

SPRAY

Rear; Includes Rubber Seal Which Is Not Serviced Separately

1шт.

19

386720A1

BRACKET

Rear Nozzle

1шт.

20

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

21

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

22

386785A1

WINDSHIELD WIPER SWI

Front Wiper

1шт.

23

386787A1

WINDSHIELD WASHER SW

Front

1шт.

24

386786A1

ROCKER SWITCH

Rear Wiper

1шт.

25

386788A1

WINDSHIELD WIPER SWI

Rear Washer

1шт.
