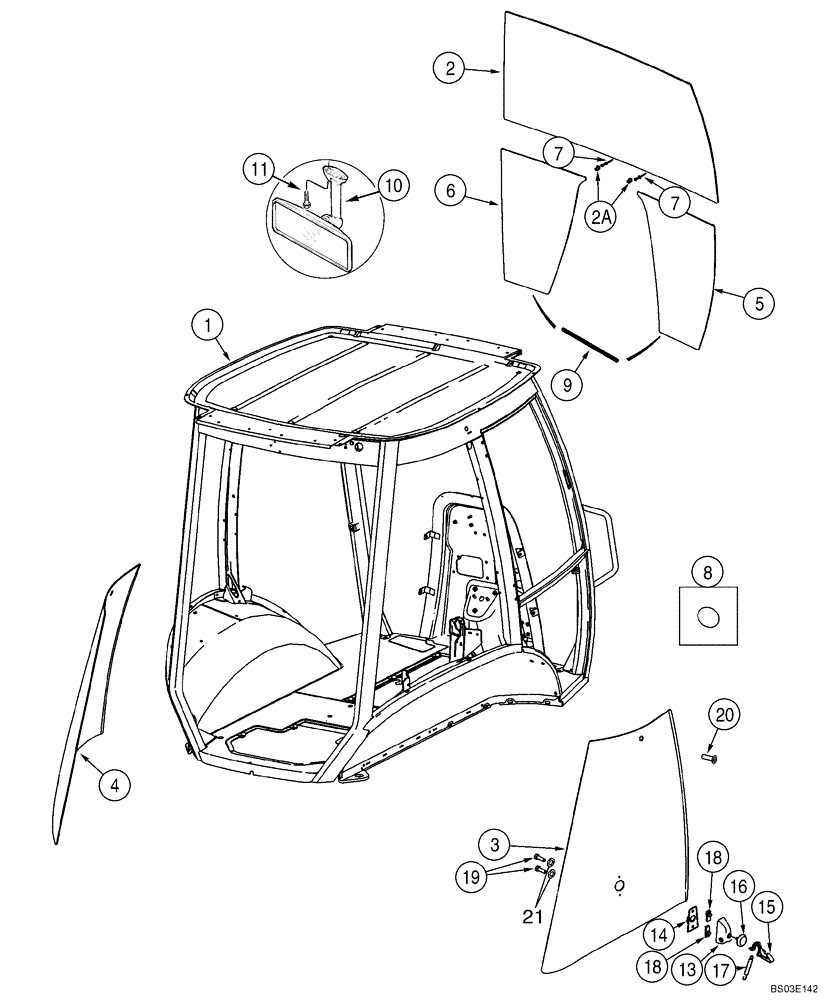

Запчасти Case 590SM (09-53) - CAB - GLASS, MIRROR AND HOLD OPEN (09) - CHASSIS/ATTACHMENTS

1

336711A3

CAB

Single Door; Includes Frame, Left-Hand Door, Right-Hand Window, All Glass, Front and Rear Wipers and Exterior Lamps; Order From Machinery Price List; Replaces 336711A2

1шт.

1

336709A3

CAB

Two Door; Includes Frame, Left-Hand and Right-Hand Doors, All Glass, Front and Rear Wipers and Exterior Lamps; Order From Machinery Price List; Replaces 336709A2

1шт.

2

338418A1

WINDSHIELD

1шт.

2a

279482A1

CLAMP

Windshield

2шт.

411380A1

KIT

Service; Glass; Right-Hand Quarter; Incl. Ref 3 and Instruction Sheet

1шт.

3

338425A1

CAB GLASS ASSY,RH, Rear Qtr

Right Rear Quarter Panel

1шт.

411379A1

KIT

Service; Glass; Left-Hand Quarter; Incl. Ref 4 and Instruction Sheet

1шт.

4

338424A1

CAB GLASS ASSY,LH, Rear Qtr

Left Rear Quarter Panel

1шт.

5

338423A1

WINDSHIELD

Lower Right-Hand

1шт.

6

338420A1

WINDSHIELD

Lower Left-Hand

1шт.

7

151-516

RIVET,Pop, 1/8" x .775"

2шт.

8

391827A1

SPACER,11.1mm D

36шт.

9

395793A1

PROTECTION STRIP

Rear View Mirror

2шт.

10

364574A2

MIRROR ASSY.

Interior

1шт.

11

286-56520

SELF-TAP SCREW,Cross Fil Hd, #10-24 x 1 1/4"

Hold Open

2шт.

13

405740A1

COVER

2шт.

14

405739A1

LATCH

2шт.

15

405738A1

LEVER

Hold Open

2шт.

16

400573A1

GROMMET

2шт.

17

405741A1

COIL SPRING

Latch Back

2шт.

18

405742A1

NUT

M8

4шт.

19

400572A1

BOLT

M8; Nylon

4шт.

20

400571A2

BUMPER

Replaces 400571A1

2шт.

21

431801A1

WASHER,8.33mm ID x 19.05mm OD x 3mm Thk

Black Nylon

4шт.
