Артикул
Название
Примечание
Количество

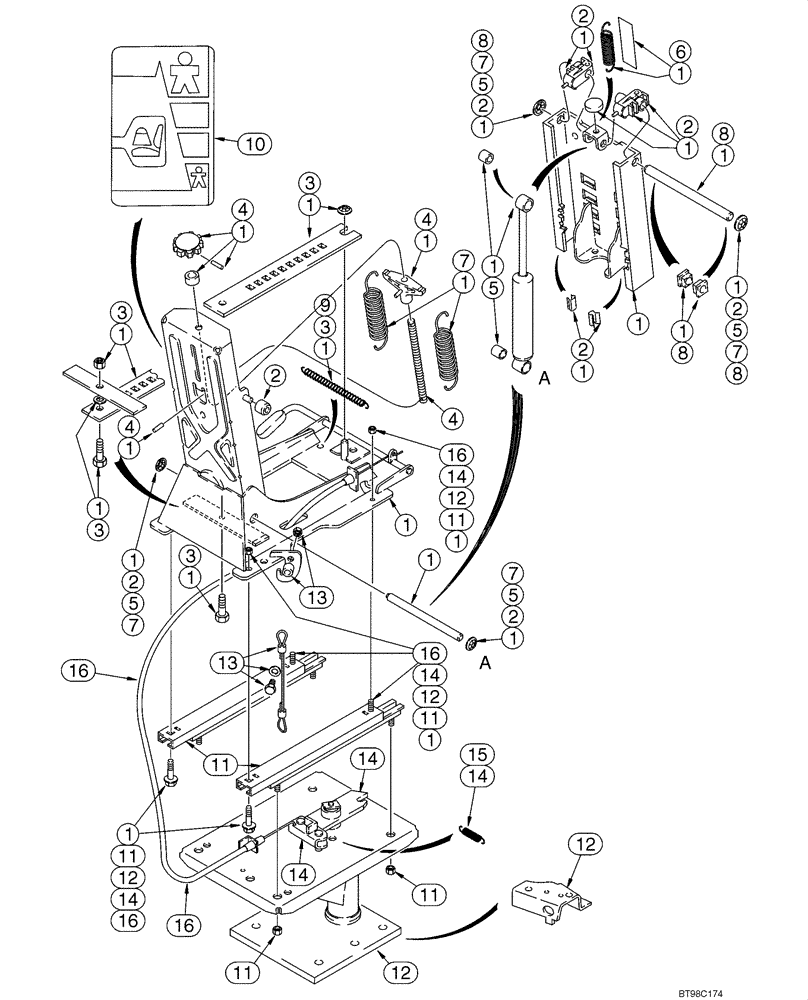

397136A2
SEAT ASSY.
Cloth, Includes Seat, Suspension, Pedestal and Weight Adjuster, Without Armrests; Incl. Ref 1 - 16; Also Includes Parts On Figure 09-49; Replaces 397136A1
1шт.
397134A2
SEAT ASSY.
Vinyl, Includes Seat, Suspension, Pedestal and Weight Adjuster, Without Armrests; Incl. Ref 1 - 16; Also Includes Parts On Figure 09-49; Replaces 397134A1
1шт.
1
307092A1
KIT
Suspension, Includes Suspension, Back Angle Adjust, (2) Groove Pins, (1) Handle, (8) Screws, (2) Springs, (3) Washers and (1) Rivet; Includes Parts From Seat Frame To Adjuster Slides; For Additional Kit Parts, See Figure 09-50, Ref 8
1шт.
1
307092A1
KIT
Suspension; Also Includes (1) Spacer, (2) Ties, (8) Clips, (12) Nuts, (1) Height Adjust Grip, (1) Back Angle Grip, (1) Rake Grip, (1) Fore/Aft/Swivel Grip, (1) Decal
1шт.
2
176921A1
KIT
Plastic Components, Includes (2) Rollers, (4) Downstops, (2) Roller Guides, (2) Bearings, (1) Bumper, (4) Nuts, (10) Clips, (2) Washers, (1) Grip; For Additional Kit Parts, See Figure 09-50, Ref 9
1шт.
3
116521A1
KIT
Fore/Aft Adjuster Latch, Includes (1) Latch Bar, (1) Bolt, (1) Spacer, (2) Nuts, (1) Spring and (2) Ties, Includes 131-435 Nut
1шт.
131-435
PUSH-ON NUT,Push, 3/8"
1шт.
4
176916A1
KIT
Weight Adjuster, Includes Adjusting Knob, (1) Spacer, (2) Roll Pins, (1) Shaft, (1) Spring, (10) Clips, (2) Washers, (1) Grip and (2) Ties; Also Includes (10) Shroud Retainers, (2) Washers, (2) Ties, See Figure 09-50
1шт.
5
176914A1
KIT
Suspension Damper, Includes Damper, (2) Spacers, (4) Nuts, (10) Clips, (2) Washers, (1) Grip and (2) Ties; Also Includes (10) Shroud Retainers, (2) Washers, (2) Ties, See Figure 09-50
1шт.
6
116547A1
KIT
Height Adjusting Spring, Includes (10) Shroud Retainers, (2) Washers, (2) Springs, (1) Wear Strip; For Additional Kit Parts, See Figure 09-49, Ref 10
1шт.
7
176920A1
KIT
Main Extension Springs, Includes (2) Springs, (4) Nuts, (2) Washers, (10) Clips, (1) Grip, (2) Ties
1шт.
8
116551A1
WHEEL BEARING KIT
Upper Suspension Tower Shaft, Includes Shaft, (2) Bearings, (2) Nuts, (10) Clips, (2) Washers
1шт.
9
116545A1
KIT
Fore/Aft Latch Spring, Includes (1) Spring, (2) Ties
1шт.
10
116534A1
KIT
Decal, Seat Weight Adjustment
1шт.
11
399764A1
KIT
Fore/Aft Adjuster Slides
1шт.
12
116538A2
KIT
Pedestal, Includes Pedestal, (4) Screws, (4) Nuts and 119211A1 Bracket
1шт.
13
116552A1
KIT
Cable, Includes (2) Cables, (2) Screws, (2) Spacers, (2) Washers, (2) Nuts
1шт.
14
116550A1
KIT
Swivel Latch Bar, Includes Latch Bar, (1) Spring, (1) Ring, (4) Screws, (4) Nuts
1шт.
14
336375A1
KIT
Swivel Latch Plate, Includes Latch, Swivel Plate Latch, (5) Screws, (6) Nuts, (2) Pins
1шт.
15
116548A1
KIT
Swivel Latch Spring Only
1шт.
16
181170A1
KIT
Cable, Fore-Aft/Swivel Mechanism, Includes (2) Screws, (2) Ties, Cable, (4) Nuts
1шт.
Выбрано товаров: 21
