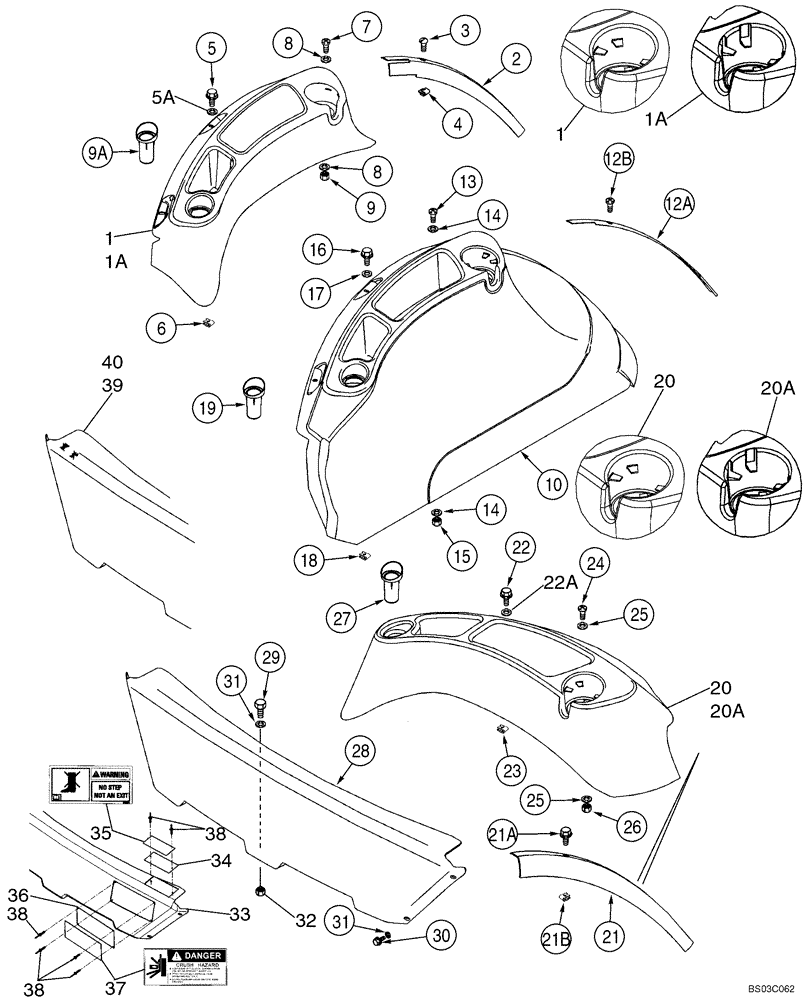

Запчасти Case 590SM (09-43) - FENDER COVER, LEFT-HAND - PANEL, REAR CLOSURE (STORAGE TRAY WITH CUP HOLDER) (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

Standard Interior/Cab Models

1шт.

1

400545A2

TRAY

Incl. 378740A3, 304061A1, 400077A1; No Longer Available, Order 86992247, Ref 1A

1шт.

378740A3

TRAY

1шт.

304061A1

BUMPER,Rubber

4шт.

400077A1

PROTECTION STRIP,1300mm

1300 mm (51-3/16 in); Cut From 1977224C1

1шт.

1a

86992247

TRAY

Cab Models; Incl. 86992284, 400077A1

1шт.

NSS

NOT SOLD SEPARAT

Tray

1шт.

86992284

BUMPER,40-50 Durometer

4шт.

400077A1

PROTECTION STRIP,1300mm

1300 mm (51-3/16 in); Cut From 1977224C1

1шт.

2

397026A3

TRIM

1шт.

3

398113A1

SCREW,Cross Truss Hd, #10 - 24 x 0.75"

No. 10 x 3/4

3шт.

4

131-869

SPRING NUT,Ret, J, #10-24

3шт.

5

87310098

BOLT,M6 x 20 Full SST BLO

2шт.

5a

895-30109

WASHER,M6 x 25 x 1.6

2шт.

6

833-40406

NUT,M6, U

2шт.

7

440-11014

SCREW,Cross Pan Hd, #10-24 x 7/8"

If Used

2шт.

7

140-117

SCREW,Cross Pan Hd, #10 - 24 x 1"

If Used

2шт.

8

495-61020

WASHER,0.203" ID x 0.75" OD x 0.067" Thk

4шт.

9

86625057

NUT,#10-24, GB

2шт.

9a

378742A3

INSERT

Swing Pin Holder

1шт.

REF

INSTRUCTION

Deluxe Interior/Cab Models

1шт.

10

86992248

COVER

Replaces 383975A3

1шт.

12a

397774A3

STRIP

1шт.

12b

398113A1

SCREW,Cross Truss Hd, #10 - 24 x 0.75"

3шт.

13

440-11014

SCREW,Cross Pan Hd, #10-24 x 7/8"

If Used

2шт.

13

140-117

SCREW,Cross Pan Hd, #10 - 24 x 1"

If Used

2шт.

14

495-61020

WASHER,0.203" ID x 0.75" OD x 0.067" Thk

4шт.

15

86625057

NUT,#10-24, GB

2шт.

16

87310098

BOLT,M6 x 20 Full SST BLO

2шт.

17

895-30109

WASHER,M6 x 25 x 1.6

2шт.

18

833-40406

NUT,M6, U

2шт.

19

378742A3

INSERT

Swing Pin Holder

1шт.

REF

INSTRUCTION

Canopy Models

1шт.

20

400544A2

TRAY

Incl. 375094A3, 304061A1, 400077A1; No Longer Available; Order 86992243, Ref 20A

1шт.

375094A3

TRAY

1шт.

304061A1

BUMPER,Rubber

4шт.

400077A1

PROTECTION STRIP,1300mm

1300 mm (51-3/16 in); Cut From 1977224C1

1шт.

20a

86992243

TRAY

Canopy Models; Incl. 86992284, 400077A1

1шт.

NSS

NOT SOLD SEPARAT

Tray

1шт.

86992284

BUMPER,40-50 Durometer

4шт.

400077A1

PROTECTION STRIP,1300mm

1300 mm (51-3/16 in); Cut From 1977224C1

1шт.

21

397025A2

TRIM

1шт.

21a

398113A1

SCREW,Cross Truss Hd, #10 - 24 x 0.75"

No. 10 x 3/4

3шт.

21b

131-869

SPRING NUT,Ret, J, #10-24

3шт.

22

87310098

BOLT,M6 x 20 Full SST BLO

2шт.

22a

895-30109

WASHER,M6 x 25 x 1.6

2шт.

23

833-40406

NUT,M6, U

2шт.

24

440-11014

SCREW,Cross Pan Hd, #10-24 x 7/8"

If Used

2шт.

24

140-117

SCREW,Cross Pan Hd, #10 - 24 x 1"

If Used

2шт.

25

495-61020

WASHER,0.203" ID x 0.75" OD x 0.067" Thk

4шт.

26

86625057

NUT,#10-24, GB

2шт.

27

378742A3

INSERT

Swing Pin Holder

1шт.

REF

INSTRUCTION

Rear Closure Panel/Canopy Models

1шт.

28

360594A2

PANEL

Used With 313238A1 and 384271A1 Decals; Decals Purchased Separately; No Longer Available; Order 87403455, Service Kit, Ref 40

1шт.

28a

87403455

SERVICE KIT

Rear Closure; Incl. Ref 32 - 38

1шт.

29

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

1шт.

30

781-24820

SELF-TAP SCREW,Hex Flg, M8 x 1.25 x 20mm

4шт.

31

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

5шт.

32

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

411078A1

PLATE ASSY.

Incl. Ref 33 - 38; No Longer Available; Order 87403455, Service Kit, Ref. 40

1шт.

33

428407A1

PANEL

1шт.

34

410440A1

PLATE

Decal Mounting

2шт.

35

384271A1

DECAL

Warning; No Step

2шт.

36

410436A1

PLATE

Decal Mounting

2шт.

37

313238A1

DECAL

Danger; Crush Hazard

2шт.

38

410838A1

RIVET

12шт.

39

86992977

PANEL

1шт.

40

87403455

SERVICE KIT

Rear Closure Panel; Incl. Ref 39 Panel, (1) 86992976 Crush Hazard Decal and (2) 86992975 No Step Decal, Plus Latin American Spanish and French Canadian Decals

1шт.
