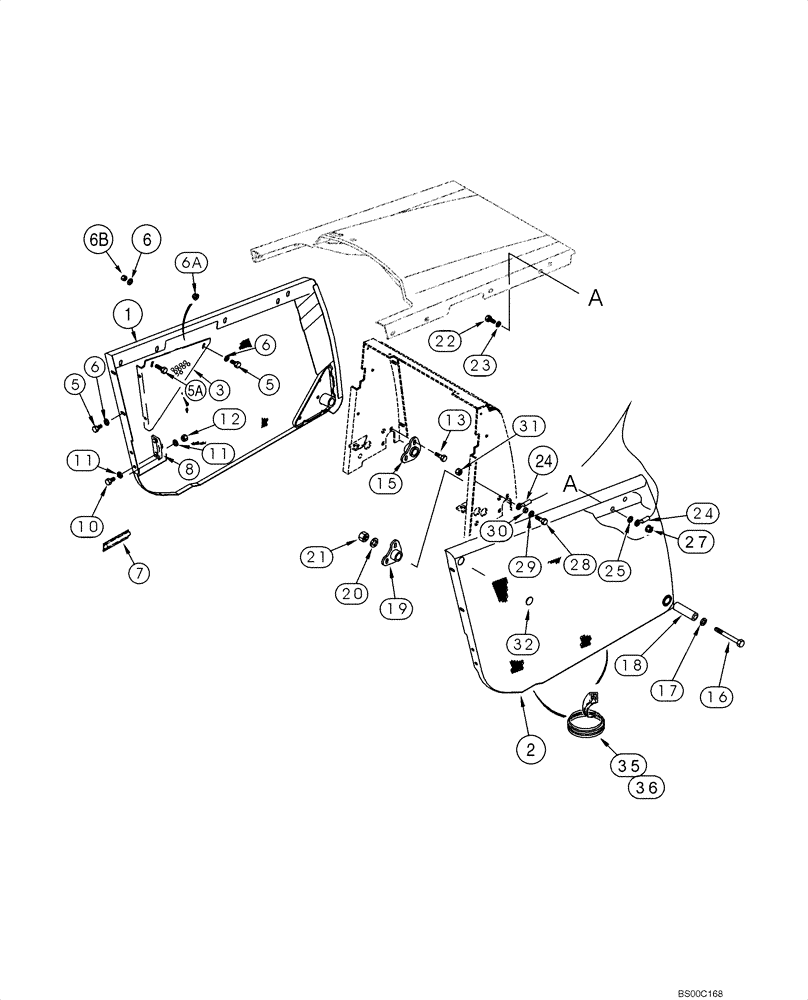

Запчасти Case 590SM (09-40) - HOOD - PANELS, SIDE (09) - CHASSIS/ATTACHMENTS

1

380298A4

PANEL, SIDE

Left-Hand Side; Replaces 380298A3

1шт.

2

380297A4

PANEL, SIDE

Right-Hand Side; Replaces 380297A3

1шт.

3

362609A1

SUPPORT

LH

1шт.

4

362607A1

SUPPORT

RH; Not Illustrated

1шт.

5

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

8шт.

5a

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

6a

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

2шт.

6b

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

7

183168A1

HANDLE

Left-Hand

1шт.

8

D143715

SUPPORT

Left-Hand

1шт.

9

D143714

SUPPORT

Right-Hand; Not Illustrated

1шт.

10

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

13

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

4шт.

15

310843A1

PIVOT

Left-Hand

1шт.

16

814-12120

BOLT,Hex, M12 x 1.75 x 120mm, Cl 8.8

2шт.

17

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

18

299249A1

TUBE,13.5 mm ID, 25.36 mm OD, 90 mm Length

2шт.

19

310842A1

PIVOT

1шт.

20

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

21

829-1412

NUT,M12, Cl 10.9

2шт.

22

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

24

144908A2

CABLE,638mm L

Replaces 144908A1

1шт.

25

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

1шт.

27

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

1шт.

28

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

30

396605A1

SPACER,10.31mm ID x 15.88mm OD x 10mm L

1шт.

31

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

1шт.

32

D140267

PLUG,30.16mm OD

2шт.

35

234923A1

PROTECTOR

150 mm (5-29/32 in); Models With Air Conditioning

2шт.

36

363078A2

MOLDING

830 mm (32-11/16 in); Models With Air Conditioning

2шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

8шт.

23

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

29

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.
