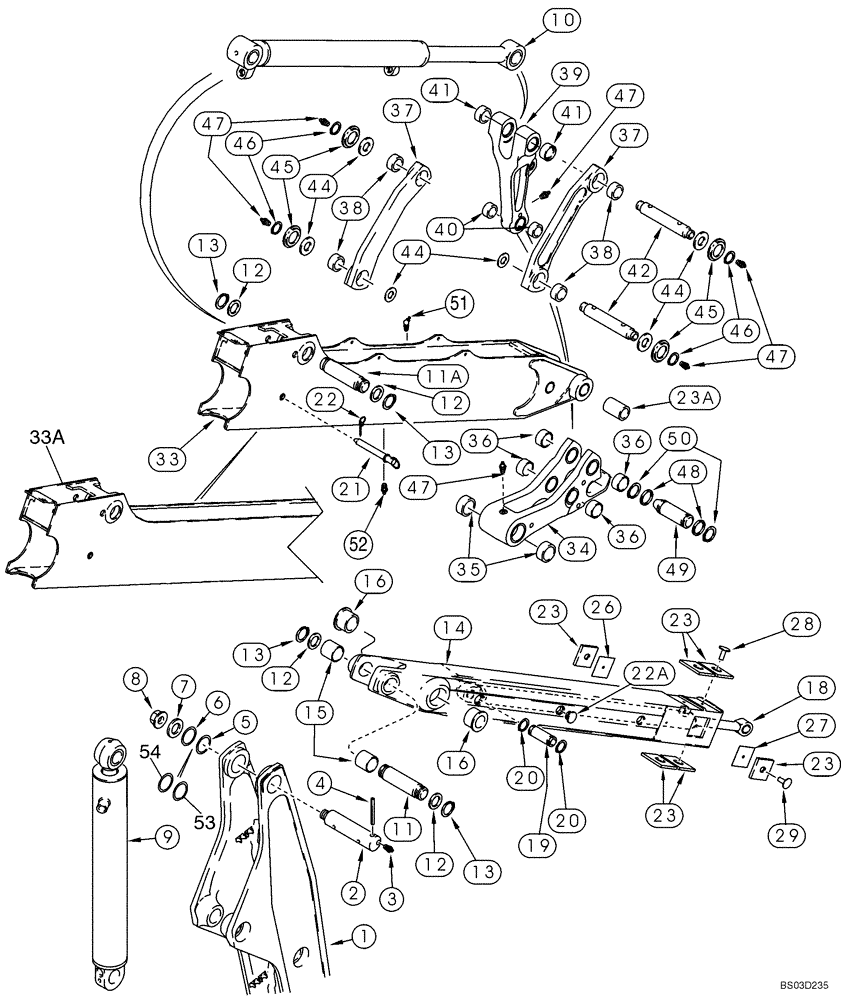

Запчасти Case 590SM (09-24) - BACKHOE - DIPPER, EXTENDABLE (09) - CHASSIS/ATTACHMENTS

1

140505A1

BOOM

See Figure 09-21

1шт.

2

175313A1

PIN

1шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

4

300014A1

SPLIT PIN/SAFETY PIN,12.7mm OD x 95.25mm L

1шт.

5

D144486

SHIM,82mm ID x 98mm OD x 1.57mm Thk

Flat; No Longer Used; Order 404303A1, Ref 53

1шт.

6

D144485

SHIM,82mm ID x 98mm OD x 3.05mm Thk

Flat; No Longer Used; Order 404302A1, Ref 54

1шт.

7

D133632

WASHER,45mm ID x 100mm OD x 8mm Thk

1шт.

8

181042A1

FLANGE NUT

1шт.

9

140965A1

CYLINDER,Double Acting, 69.8mm Rod, 564.2mm Stroke

140 ID x 564 mm strk; Dipper; See Figure 08-59

1шт.

9

140965A1R

REMAN-HYD CYLINDER

590SM

1шт.

9

140965A1C

CORE-HYD CYLINDER

Return Number

1шт.

10

296434A1

CYLINDER,Double Acting, 69.8mm Rod, 872mm Stroke

95 ID x 872 mm strk; Bucket; See Figure 08-60

1шт.

10

296434A1R

REMAN-HYD CYLINDER

590SM

1шт.

10

296434A1C

CORE-HYD CYLINDER

Return Number

1шт.

11

175581A1

PIN,70mm OD x 230mm L

1шт.

11a

175316A1

PIN,60mm OD x 199mm L

1шт.

12

D136392

SHIM,72mm ID x 89mm OD x 3.05mm Thk

(M72 ID x 89 OD)

1шт.

13

800-1155

RETAINER,55mm ID

2шт.

13

800-40070

SNAP RING,M70 Ext

2шт.

294300A1

DIPPER

Inner; Incl. Ref 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

Dipper

1шт.

15

D144161

BUSHING,70.19mm ID x 80mm OD x 46mm L

70 ID x 50 mm lg

2шт.

16

D151059

BUSHING,80.19mm ID x 104mm OD x 42mm L

80 ID x 46 mm lg

2шт.

18

1340853C2

CYLINDER,Double Acting, 44.4mm Rod, 1220mm Stroke

76 ID x 1220 mm strk; Extendable Dipper; See Figure 08-61

1шт.

19

300588A1

PIN,40mm OD x 136mm L

1шт.

20

800-44040

SNAP RING,M40, Ext

2шт.

21

D140247

LOCK PIN,25.4mm OD x 232.6mm L

Transport

1шт.

22

A33509

PIN,11.18mm OD

1шт.

22a

D133865

PLUG

4шт.

23

451384A1

WEAR PLATE

Plastic; Replaces 132716A1

6шт.

23a

307186A1

BUSHING,44.6mm ID x 57.15mm OD x 104mm L

104 mm lg

2шт.

26

132842A1

SHIM,19mm ID x 142mm OD x 1.6mm Thk

1.6 mm thk

1шт.

27

132844A1

SHIM,19mm ID x 142mm OD x 0.8mm Thk

0.8 mm thk

1шт.

28

183443A1

PIN,6.6mm OD x 38.5mm L

4шт.

29

183509A1

PIN,8.3mm OD x 22mm L

2шт.

32

495-81282

WASHER,2 1/16" x 3" x .109"

2шт.

33

108942A4

DIPPER

Outer; Incl. Ref 51, 52; Models Without Hydraulic Backhoe Bucket Coupler; For Models With Hydraulic Backhoe Bucket Coupler, See Figure 09-25; No Longer Available; Order 108942A5, Ref 33A

1шт.

33a

108942A5

DIPPER

Housing; Outer; Incl. Ref 51, 52; Models Without Hydraulic Backhoe Bucket Couplter; For Models With Hydraulic Backhoe Bucket Coupler, See Figure 09-25

1шт.

294195A1

COUPLING,Bucket, Extendable Dipper

Bucket; Incl. Ref 34 - 36

1шт.

34

NSS

NOT SOLD SEPARAT

Coupler; Quick

1шт.

35

D127167

BUSHING,57.34mm ID x 70mm OD x 30mm L

30 mm lg

2шт.

36

D127172

BUSHING,44.75mm x 57.15mm OD x 28mm L

28 mm lg

4шт.

37

348706A1

LINK ASSY.

Bucket Guide; Incl. Ref 38

2шт.

38

D149079

BUSHING,50.19mm ID x 60mm OD x 34mm L

50 x 34 mm lg

2шт.

39

400398A1

LINK ASSY.

Bucket Dump; Incl. Ref 40, 41

1шт.

40

107124A1

BUSHING,44.75mm ID x 57.15mm OD x 29mm L

2шт.

41

D138047

BUSHING,50.22mm ID x 60mm OD x 54mm L

54 mm (2-1/8 in) lg

2шт.

42

D141142

PIN,50mm OD x 306mm L

306 mm lg

2шт.

44

495-81227

WASHER,52.38mm ID x 74.63mm OD x 1.7mm Thk

1шт.

45

D141164

SPACER,46mm ID x 76mm OD x 2.5mm Thk

4шт.

46

103-16175

SNAP RING,#175, Ext

4шт.

47

219-1

LUBE NIPPLE,1/8" - 27 NPTF

6шт.

48

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

2шт.

49

D146288

PIN,44.45mm OD x 167mm L

1шт.

50

103-16175

SNAP RING,#175, Ext

2шт.

51

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

1шт.

52

219-86

LUBE NIPPLE,1/8" NPTF

1шт.

53

404303A1

SHIM

5 mm thk; Concave

1шт.

54

404302A1

SHIM

5 mm thk; Concave

1шт.
