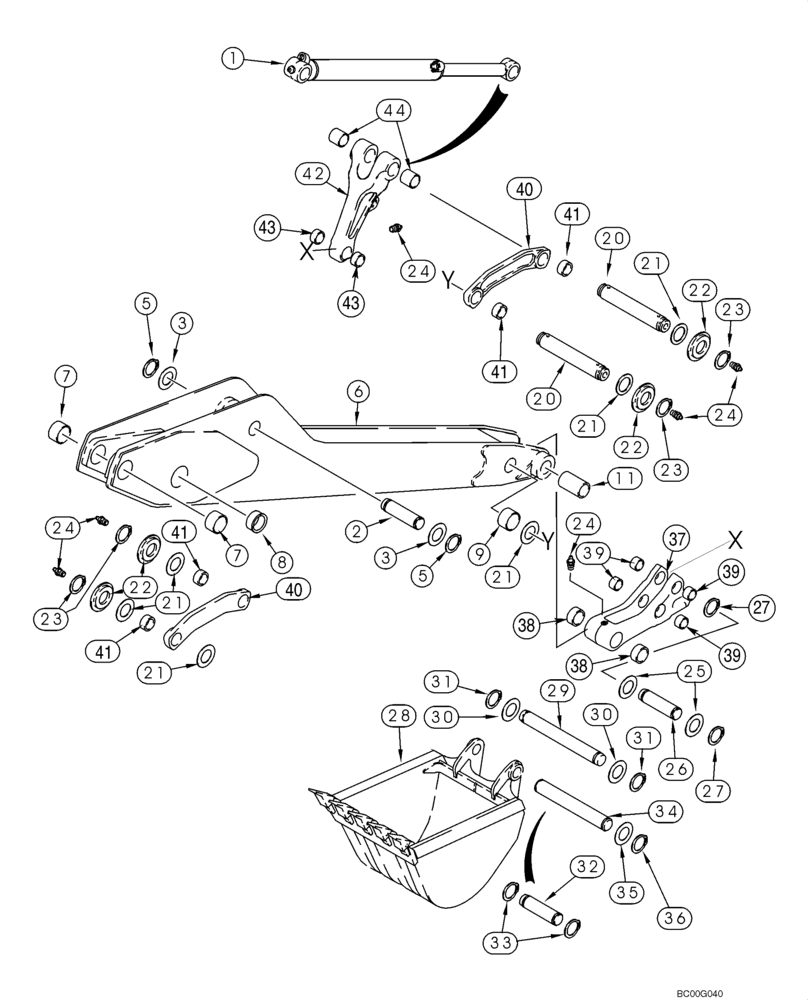

Запчасти Case 590SM (09-23) - BACKHOE - ARM AND BUCKET (09) - CHASSIS/ATTACHMENTS

1

296434A1

CYLINDER,Double Acting, 69.8mm Rod, 872mm Stroke

95 ID x 872 mm strk; Bucket; See Figure 08-60

1шт.

1

296434A1R

REMAN-HYD CYLINDER

590SM

1шт.

1

296434A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

175316A1

PIN,60mm OD x 199mm L

1шт.

3

H433285

SPACER

57 x 76 x 1.5 mm

1шт.

5

800-4155

SNAP RING,55mm ID

2шт.

302070A1

DIPPER

Incl. Ref 6 - 9; Models Without Hydraulic Backhoe Bucket Coupler; For Models With Hydraulic Backhoe Bucket Coupler, See Figure 09-25

1шт.

6

NSS

NOT SOLD SEPARAT

Dipper

1шт.

7

D144161

BUSHING,70.19mm ID x 80mm OD x 46mm L

70 ID x 50 mm lg

2шт.

8

D151059

BUSHING,80.19mm ID x 104mm OD x 42mm L

80 ID x 46 mm lg

2шт.

9

D140029

BUSHING,50.22mm ID x 60mm OD x 25.5mm L

50 x 60 x 25.5 mm lg

2шт.

11

307186A1

BUSHING,44.6mm ID x 57.15mm OD x 104mm L

104 mm lg; Not Included In Assembly; Purchase Separately

2шт.

20

D141142

PIN,50mm OD x 306mm L

306 mm lg; Guide Link

2шт.

21

495-81282

WASHER,2 1/16" x 3" x .109"

1шт.

22

D141164

SPACER,46mm ID x 76mm OD x 2.5mm Thk

4шт.

23

103-16175

SNAP RING,#175, Ext

4шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

6шт.

25

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

2шт.

26

D146288

PIN,44.45mm OD x 167mm L

1шт.

27

103-16175

SNAP RING,#175, Ext

2шт.

28

REF

INSTRUCTION

Bucket; See Figure(s) 09-26 - 09-31

1шт.

29

D149298

PIN,44.38mm OD x 331mm L

1шт.

30

D143324

WASHER,38.15mm ID x 64mm OD x 1.7mm Thk

2шт.

31

D25279

SNAP RING,M35, Int

2шт.

32

D37614

PIN,38mm Od x 246mm L

305 mm (12 inch); Universal Bucket Only

1шт.

33

103-16175

SNAP RING,#175, Ext

2шт.

34

D150619

PIN,44.29mm OD x 372.6mm L

All Buckets except 12 Inch (305 mm) buckets

1шт.

35

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

1шт.

36

103-16175

SNAP RING,#175, Ext

2шт.

294195A1

COUPLING,Bucket, Extendable Dipper

Bucket; Incl. Ref 37 - 39

1шт.

37

NSS

NOT SOLD SEPARAT

Coupler, Quick

1шт.

38

D127167

BUSHING,57.34mm ID x 70mm OD x 30mm L

30 mm lg

2шт.

39

D127172

BUSHING,44.75mm x 57.15mm OD x 28mm L

28 mm lg

4шт.

40

348706A1

LINK ASSY.

Bucket Guide; Incl. Ref 41

2шт.

41

D149079

BUSHING,50.19mm ID x 60mm OD x 34mm L

50 x 34 mm lg

2шт.

42

400398A1

LINK ASSY.

Bucket Dump; Incl. Ref 43, 44

1шт.

43

107124A1

BUSHING,44.75mm ID x 57.15mm OD x 29mm L

2шт.

44

D138047

BUSHING,50.22mm ID x 60mm OD x 54mm L

54 mm (2-1/8 in) lg

2шт.
