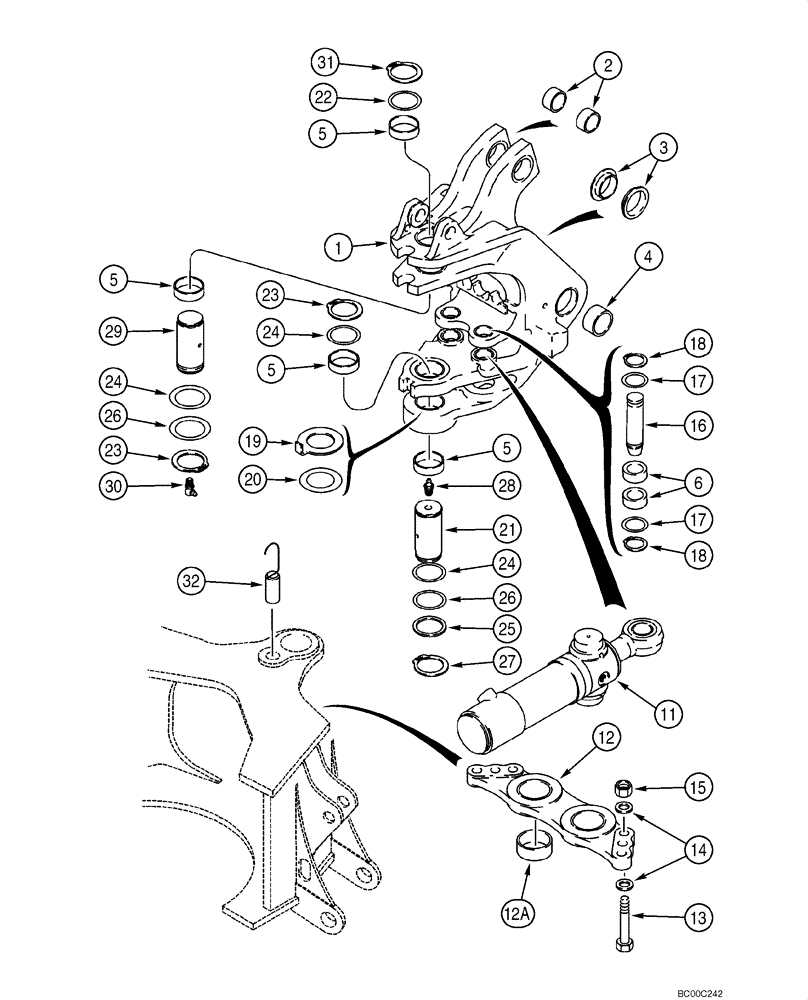

Запчасти Case 590SM (09-20) - BACKHOE - SWING TOWER AND SWING CYLINDERS (09) - CHASSIS/ATTACHMENTS

1

140515A1

TOWER

Swing Tower; Incl. Ref 2 - 6

1шт.

2

D151061

BUSHING,80.19mm ID x 100mm OD x 32mm L

2шт.

3

221476A1

BUSHING,80.19mm ID x 94mm OD x 23mm L

2шт.

4

D144170

BUSHING,80.19mm ID x 90mm OD x 20mm L

2шт.

5

D151060

BUSHING,70.19mm ID x 90mm OD x 30mm L

4шт.

6

135249A1

BUSHING,50.96mm ID x 63.5mm OD x 28.6mm L

28.6 mm lg

4шт.

11

139808A2

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 292mm Stroke

102 ID x 292 mm strk, Swing; See Figure 08-57

2шт.

11

139808A2R

REMAN-HYD CYLINDER

102 ID x 292 mm strk, Swing; See Figure 08-57

2шт.

11

139808A2C

CORE-HYD CYLINDER

Return Number

2шт.

12

198976A1

PLATE

Incl Ref 12A

1шт.

12a

114318A1

BUSHING,80.19mm ID x 90mm OD x 29.35mm L

80 x 90 x 29.3 mm

2шт.

13

827-20075

BOLT,Hex, M20 x 2.5 x 75mm, Cl 10.9, Full Thd

6шт.

14

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

12шт.

15

829-1420

NUT,M20, Cl 10

6шт.

16

386092A2

PIN,50.77mm OD x 194.7mm L

Replaces 386092A1

2шт.

17

495-81227

WASHER,52.38mm ID x 74.63mm OD x 1.7mm Thk

1шт.

18

103-16200

SNAP RING,#200, Ext

4шт.

19

220489A1

LOCK WASHER

5 mm thk

1шт.

20

134167A1

SHIM,72mm ID x 140mm OD x 2.05mm Thk

2.05 mm (.08 in) thk

1шт.

21

175597A1

PIN,70mm OD x 175mm L

1шт.

22

D136700

SHIM,67mm ID x 83mm OD x 1.57mm Thk

Replaces 175323A1

1шт.

23

800-40070

SNAP RING,M70 Ext

2шт.

24

D136392

SHIM,72mm ID x 89mm OD x 3.05mm Thk

(M72 ID x 89 OD); Upper

1шт.

25

D136700

SHIM,67mm ID x 83mm OD x 1.57mm Thk

Replaces 175323A1

1шт.

26

D136391

SHIM,72mm ID x 89mm OD x 1.57mm Thk

(M72 ID x 89 OD)

1шт.

27

800-40065

SNAP RING,M65, Ext

1шт.

28

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

29

139262A1

PIN,70mm OD x 161mm L

1шт.

30

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

1шт.

31

800-40065

SNAP RING,M65, Ext

1шт.

32

384967A1

PIN ASSY.

1шт.
