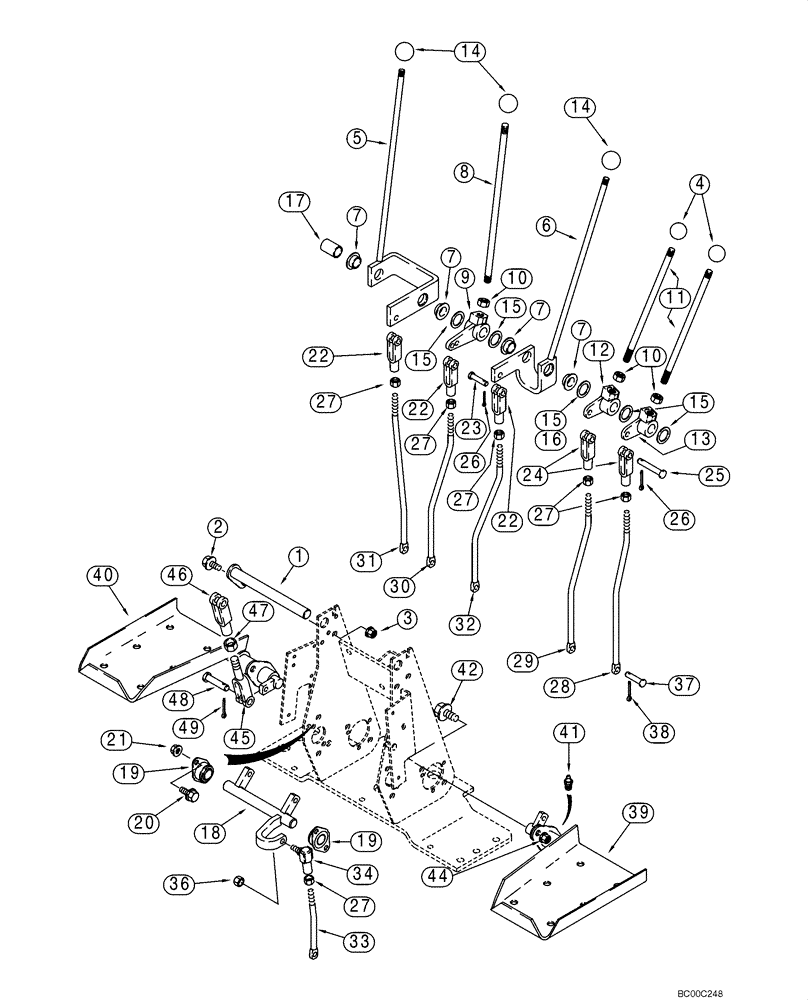

Запчасти Case 590SM (09-12) - CONTROLS - BACKHOE, WITH FOOT SWING (MODELS WITHOUT EXTENDABLE DIPPER) (09) - CHASSIS/ATTACHMENTS

1

129015A1

SHAFT

1шт.

2

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

1шт.

3

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

1шт.

4

D59912

KNOB

Stabilizer Control Levers

2шт.

5

136267A1

LEVER

Boom; Incl. Ref 7

1шт.

6

136269A1

LEVER

Bucket; Incl. Ref 7

1шт.

7

D148992

BUSHING,19.15mm ID x 23.83mm OD x 10.6mm L

2шт.

8

136263A1

ROD,12.7mm OD x 407mm L

Dipper

1шт.

9

D150397

CRANK LEVER

Dipper

1шт.

10

425-118

NUT,1/2"-20, G5

3шт.

11

136261A1

THREADED ROD,1/2"-20 UNF x 260mm L

Stabilizer

2шт.

12

D150435

CRANK LEVER

Right-Hand Stabilizer Control

1шт.

13

D150434

CRANK LEVER

Left-Hand Stabilizer Control

1шт.

REF

INSTRUCTION

Models Without Extendable Dipper

1шт.

14

L54563

KNOB

Boom, Dipper, and Bucket

3шт.

15

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

49/64 x 1-15/64 x 1/32; Used As A Shim

1шт.

16

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

25/32 x 1-3/8 x 9/64; May Be Used In Place Of Ref 15

1шт.

17

D150486

SPACER,19.76mm ID x 25.4mm OD x 35mm L

Not Used On Models With Extendable Dipper

1шт.

18

D148994

SHAFT,182.10mm L

Swing

1шт.

19

D148993

BEARING,19.06mm ID

2шт.

20

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

4шт.

21

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

22

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

3шт.

23

D149288

PIN,8.33mm OD x 30.66mm L

Special

3шт.

24

D150493

END

2шт.

25

427-6088

CLEVIS PIN,3/8" x 3/4"

3/8 x 7/8

2шт.

26

432-612

COTTER PIN,3/32" x 3/4"

5шт.

27

425-156

JAM NUT,Jam, 3/8"-24, G5

6шт.

28

189297A1

ROD

Left-Hand Stabilizer Control

1шт.

29

189296A1

ROD

Right-Hand Stabilizer Control

1шт.

30

189295A1

ROD

Dipper

1шт.

31

189298A1

ROD

Boom

1шт.

32

189294A1

ROD

Bucket

1шт.

33

189299A1

ROD

Swing

1шт.

34

D149295

BALL JOINT,3/8"

1шт.

36

425-116

NUT,3/8" - 24, Gr 5

1шт.

37

D149287

PIN,7.9mm OD x 26.72mm L

6шт.

38

432-612

COTTER PIN,3/32" x 3/4"

6шт.

39

136271A1

PEDAL

Left-Hand Swing

1шт.

40

136270A1

PEDAL

Right-Hand Swing

1шт.

41

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

42

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

44

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.

45

D150503

END

2шт.

46

D149262

CLEVIS,3/8-24"

2шт.

47

425-156

JAM NUT,Jam, 3/8"-24, G5

2шт.

48

D149288

PIN,8.33mm OD x 30.66mm L

4шт.

49

432-612

COTTER PIN,3/32" x 3/4"

4шт.
