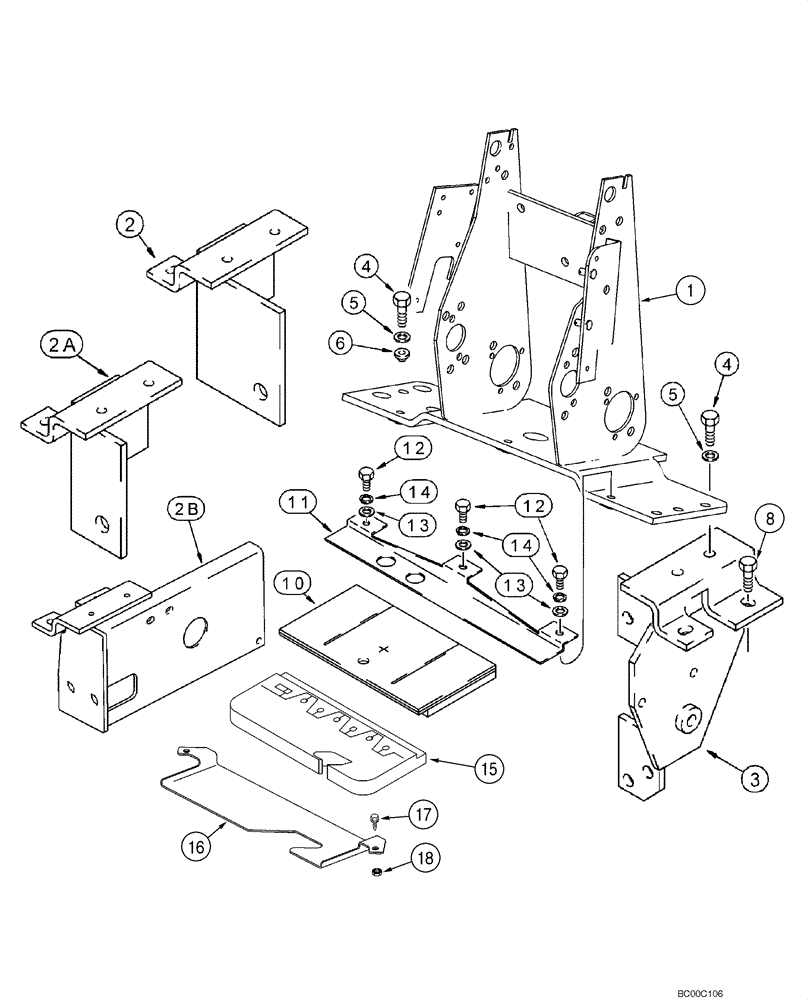

Запчасти Case 590SM (09-11) - BACKHOE CONTROL TOWER SUPPORT AND SEALS (09) - CHASSIS/ATTACHMENTS

1

380646A2

BRACKET

1шт.

2

224952A1

BRACKET

Left-Hand; 6 Spool Valve

1шт.

2a

224949A1

BRACKET

Left-Hand; 7 Spool Valve; Without Auxiliary Hydraulics

1шт.

2b

301114A1

BRACKET

Left-Hand; 7 or 8 Spool Valve; With Auxiliary Hydraulics

1шт.

3

224946A1

BRACKET

Right-Hand; Valve Mounting

1шт.

4

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

8шт.

5

496-41041

WASHER,13/32" x 1 1/8" x .134"

8шт.

6

179956A1

INSULATOR,10.16mm ID x 27.7mm OD x 11.2mm L

2шт.

8

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

LH Bracket

2шт.

8

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

RH Bracket

2шт.

10

400069A1

FOAM

Foam; Cab Models

1шт.

11

184695A1

SUPPORT

Cab Models

1шт.

12

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

3шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

3шт.

14

892-11008

LOCK WASHER,8mm ID

3шт.

15

399966A1

FOAM

1шт.

16

397911A1

BRACKET

1шт.

17

87310096

BOLT,Hex, M6 x 25, Cl. 8.8, W/ Washer

M6 x 25

2шт.

18

833-40406

NUT,M6, U

2шт.
